SMAJ5.0(C)A – SMAJ200(C)A
400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Features
400W Peak Pulse Power Dissipation
Glass Passivated Die Construction
Unidirectional and Bidirectional Versions Available
Excellent Clamping Capability
Fast Response Time
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SMA
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead-Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity Indicator: Cathode Band (Bi-directional devices do not
have a polarity indicator.)
Weight: 0.064 grams (Approximate)
Top View
Bottom View
Ordering Information
(Note 4)
Part Number
SMAJXXX(C)A-13-F
*x = Device Voltage, Example: SMAJ170A-13-F
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Case
SMA
Packaging
5000/Tape & Reel
Marking Information
xx = Product Type Marking Code
(See Electrical Characteristics Table)
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 4 for 2014)
WW = Week Code (01 to 53)
YWW
xx
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 17 - 2
1 of 6
www.diodes.com
October 2014
© Diodes Incorporated
SMAJ5.0(C)A – SMAJ200(C)A
Maximum Ratings
(@T
A
= +25°C unless otherwise specified.)
Characteristic
Peak Pulse Power Dissipation
(Non-repetitive current pulse derated above T
A
= +25°C)
(Note 5)
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Superimposed on Rated Load
(Notes 5, 6 & 7)
Steady State Power Dissipation @ T
L
= +75°C
Instantaneous Forward Voltage @ I
PP
= 35A
(Notes 5, 6, & 7)
Notes:
Symbol
P
PK
I
FSM
PM
(AV)
V
F
Value
400
40
1.0
3.5
Unit
W
A
W
V
5. Valid provided that terminals are kept at ambient temperature.
6. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.
7. Unidirectional units only.
Thermal Characteristics
Characteristic
Operating Temperature Range
Storage Temperature Range
Symbol
T
J
T
STG
Value
-55 to +150
-55 to +175
Unit
°C
°C
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 17 - 2
2 of 6
www.diodes.com
October 2014
© Diodes Incorporated
SMAJ5.0(C)A – SMAJ200(C)A
Electrical Characteristics
(@T
A
= +25°C unless otherwise specified.)
Part Number
Add C For
Bidirectional
(Note 8)
SMAJ5.0(C)A
SMAJ6.0(C)A
SMAJ6.5(C)A
SMAJ7.0(C)A
SMAJ7.5(C)A
SMAJ8.0(C)A
SMAJ8.5(C)A
SMAJ9.0(C)A
SMAJ10(C)A
SMAJ11(C)A
SMAJ12(C)A
SMAJ13(C)A
SMAJ14(C)A
SMAJ15(C)A
SMAJ16(C)A
SMAJ17(C)A
SMAJ18(C)A
SMAJ20(C)A
SMAJ22(C)A
SMAJ24(C)A
SMAJ26(C)A
SMAJ28(C)A
SMAJ30(C)A
SMAJ33(C)A
SMAJ36(C)A
SMAJ40(C)A
SMAJ43(C)A
SMAJ45(C)A
SMAJ48(C)A
SMAJ51(C)A
SMAJ54(C)A
SMAJ58(C)A
SMAJ60(C)A
SMAJ64(C)A
SMAJ70(C)A
SMAJ75(C)A
SMAJ78(C)A
SMAJ85(C)A
SMAJ90(C)A
SMAJ100(C)A
SMAJ110(C)A
SMAJ120(C)A
SMAJ130(C)A
SMAJ150(C)A
SMAJ160(C)A
SMAJ170(C)A
SMAJ200(C)A
Notes:
Reverse
Standoff
Voltage
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
200
Breakdown
Test
Voltage
Current
V
BR
@ I
T
(Note 9)
Min (V) Max (V) I
T
(mA)
6.40
7.25
10
6.67
7.37
10
7.22
7.98
10
7.78
8.60
10
8.33
9.21
1.0
8.89
9.83
1.0
9.44
10.4
1.0
10.0
11.1
1.0
11.1
12.3
1.0
12.2
13.5
1.0
13.3
14.7
1.0
14.4
15.9
1.0
15.6
17.2
1.0
16.7
18.5
1.0
17.8
19.7
1.0
18.9
20.9
1.0
20.0
22.1
1.0
22.2
24.5
1.0
24.4
26.9
1.0
26.7
29.5
1.0
28.9
31.9
1.0
31.1
34.4
1.0
33.3
36.8
1.0
36.7
40.6
1.0
40.0
44.2
1.0
44.4
49.1
1.0
47.8
52.8
1.0
50.0
55.3
1.0
53.3
58.9
1.0
56.7
62.7
1.0
60.0
66.3
1.0
64.4
71.2
1.0
66.7
73.7
1.0
71.1
78.6
1.0
77.8
86.0
1.0
83.3
92.1
1.0
86.7
95.8
1.0
94.4
104
1.0
100
111
1.0
111
123
1.0
122
135
1.0
133
147
1.0
144
159
1.0
167
185
1.0
178
197
1.0
189
209
1.0
224
248
1.0
Max. Reverse
Leakage @ V
RWM
(Note 10)
I
R
(µA)
800
800
500
200
100
50
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
1.0
Max. Clamping
Voltage @ I
pp
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
324
Max. Peak Pulse
Current
I
pp
(A)
43.5
38.8
35.7
33.3
31.0
29.4
27.7
26.0
23.5
22.0
20.1
18.6
17.2
16.4
15.3
14.5
13.7
12.3
11.2
10.3
9.5
8.8
8.3
7.5
6.9
6.2
5.7
5.5
5.2
4.9
4.6
4.3
4.1
3.9
3.5
3.3
2.2
2.9
2.7
2.5
2.3
2.0
1.9
1.6
1.5
1.4
1.2
Marking Code
BI-
TE
TG
TK
TM
TP
TR
TT
TV
TX
TZ
UE
UG
UK
UM
UP
UR
UT
UV
UX
UZ
VE
VG
VK
VM
VP
VR
VT
VV
VX
VZ
WE
WG
WK
WM
WP
WR
WT
WV
WX
WZ
XE
XG
XK
XM
XP
XR
YT
UNI-
HE
HG
HK
HM
HP
HR
HT
HV
HX
HZ
IE
IG
IK
IM
IP
IR
IT
IV
IX
IZ
JE
JG
JK
JM
JP
JR
JT
JV
JX
JZ
RE
RG
RK
RM
RP
RR
RT
RV
RX
RZ
SE
SG
SK
SM
SP
SR
ST
8. Suffix C denotes Bi-directional device.
9. V
BR
measured with I
T
current pulse = 10 ~ 15 ms.
10. For Bidirectional devices having V
RWM
of 10V and under, the I
R
is doubled.
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 17 - 2
3 of 6
www.diodes.com
October 2014
© Diodes Incorporated
SMAJ5.0(C)A – SMAJ200(C)A
100
10,000
T
J
= 25°C
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
75
C
T
, TOTAL CAPACITANCE (pF)
Unidirectional
1,000
50
Bidirectional
100
25
10 X 1000 Waveform
as defined by REA
0
0
25
50
75
100
125 150
175 200
T
A
, AMBIENT TEMPERATURE (°C)

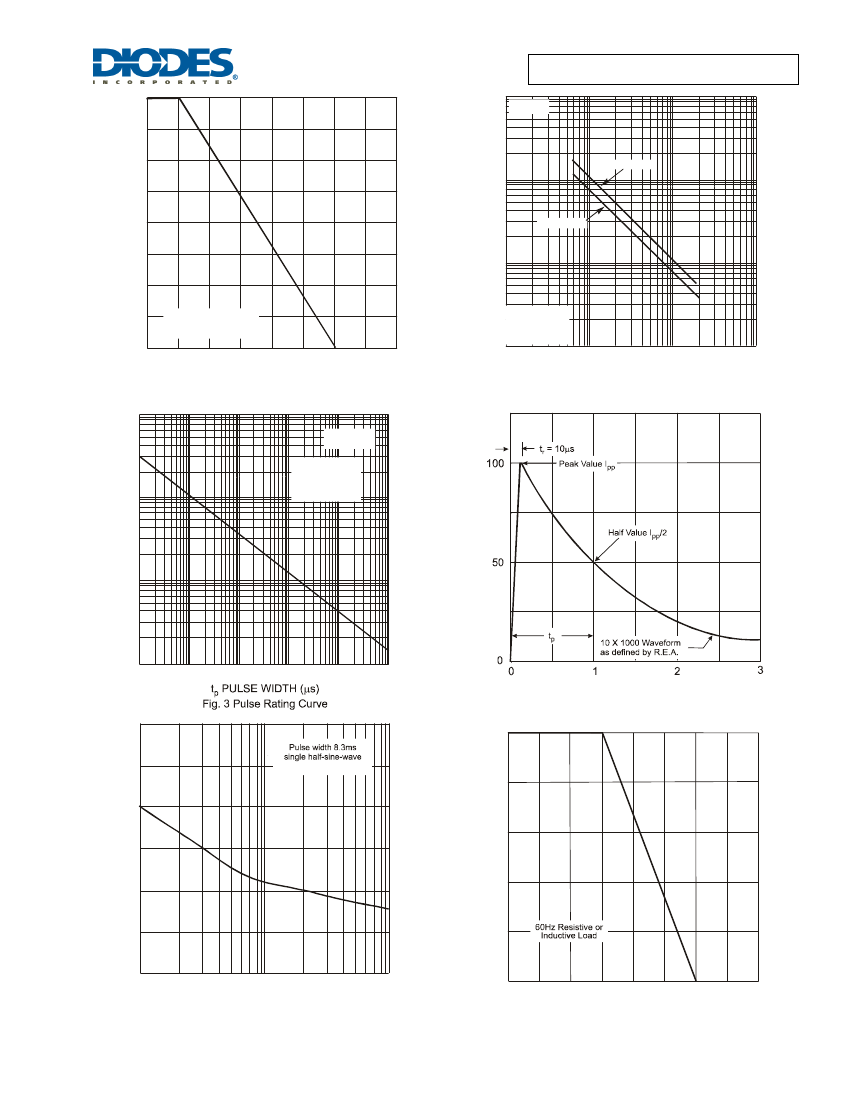

Fig. 1 Pulse Derating Curve
100
I
P
, PEAK PULSE CURRENT (%I
pp
)
T
j
= 25 °C
10
Measured at
f = 1MHz
1.0Vrms signal
Bias = 0Vdc
1
10
100
V
WM
, STANDOFF VOLTAGE (V)
Fig. 2 Typical Total Capacitance
1,000
P
PK
, PEAK PULSE POWER (kW)
Non repetitive
pulse waveform
shown in Fig. 4
10
1.0
0.1
0.1
1.0
10
100
1,000
10,000
t, TIME (ms)
Fig. 4 Pulse Waveform
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
50
PM
(AV),
STEADY STATE POWER DISSIPATION (W)
1.0
0.8
40
0.6
30
20
0.4
10
0.2
0
1
20
10
50 100
NUMBER OF CYCLES AT 60Hz
Fig. 5 Maximum Non-Repetitive Surge Current
5
2
0.0
0
50
75 100 125 150 175 200
T
L
, LEAD TEMPERATURE ( °C)
Fig. 6 Steady State Power Derating Curve
25
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 17 - 2
4 of 6
www.diodes.com
October 2014
© Diodes Incorporated
SMAJ5.0(C)A – SMAJ200(C)A
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
B
A
C
D
J
SMA
Dim
Min
Max
A
2.29
2.92
B
4.00
4.60
C
1.27
1.63
D
0.15
0.31
E
4.80
5.59
G
0.05
0.20
H
0.76
1.52
J
2.01
2.30
All Dimensions in mm
H
E
G
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Dimensions Value (in mm)
C
4.00
G
1.50
X
2.50
X1
6.50
Y
1.70
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 17 - 2
5 of 6
www.diodes.com
October 2014
© Diodes Incorporated
