Bussmann
®
Specialty Fuse
Time-Delay, Rejection Style
Dimensional Data
FUSE
GMQ
& HLQ
0.63"
(15.9mm)
FUSE AND CARRIER
Catalog Symbol:
GMQ (Fuse) HLQ (Fuseholder)
Time-Delay
Rejection Style Fuse
Ampere Rating:
⁄Ω™ to 6⁄Ω¢ Amperes
Voltage Rating:
300 Volts AC or less
Interrupting Rating:
10,000 Amperes
Agency Information:
Fuse:
UL Listed, Guide JDYX, File E19180
CSA Certified, Class 1422-01, File 53787
Fuseholder:
UL Recognized, Guide IZLT2, File E14853
CSA Certified, Class 6225-01, File 47235
Electrical Ratings for Type GMQ Fuses and
Rejection Style Carriers
Fuse
GMQ- ⁄
2
1
.720''
18.29mm
.850''
21.59mm
2.250''
57.15mm
Line Lead
.850''
21.59mm
C
L
Load Lead
MOUNTING HOLE
.870''
22.10mm
.255''
6.48mm
.635''
16.13mm
.410''
10.41mm
Keyhole Punch
.740''
18.80mm
Knockout Hole
Carrier
HLQ- ⁄
2
1
Fuse
GMQ-2 ⁄
2
1
Carrier
HLQ-3
2
⁄
10
HLQ-3
2
⁄
10
HLQ-3
2
⁄
10
HLQ-5
HLQ-5
1
GMQ-
6
⁄
10
GMQ-
8
⁄
10
GMQ-1
GMQ-1
1
⁄
4
GMQ-1 ⁄
10
6
HLQ-1
6
⁄
10
HLQ-1
6
⁄
10
HLQ-1
6
⁄
10
HLQ-1
6
⁄
10
HLQ-1 ⁄
10
6
2
GMQ-3
GMQ-3
2
⁄
10
GMQ-4
GMQ-5
GMQ-6 ⁄
4
—
HLQ-8
—
GMQ-2
HLQ-3 ⁄
10
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 Vac, 75-1500 Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
General Information:
• GMQ fuse mounts in type HLQ size rejection (size limiting)
carrier (prevents overfusing).
• HLQ carrier comes with 6” of #18 red insulated solid cop-
per wire attached to the line side.
• Customer inserts a #18 insulated solid copper wire into
load side receptacle.
• Size of type GMQ fuses varies with ampere ratings.
• Fuse and knob are an integral one-piece unit. There are no
replacement knobs (caps).
• Units can be panel mounted with a separate steel clip. For
the knockout hole (see above), choose #BK/A-104. For the
keyhole punch type hole, choose #6374 for panels .043” to
.062” thick, or #4909 for panels .030” to .042” thick.
• Do not put tension on line (rear) termianl of fuleholder.
5-22-02
SB02233
Form No. GMQ & HLQ
Page 1 of 2
Data Sheet: 2030
Bussmann
®
Specialty Fuse
Time-Delay, Rejection Style

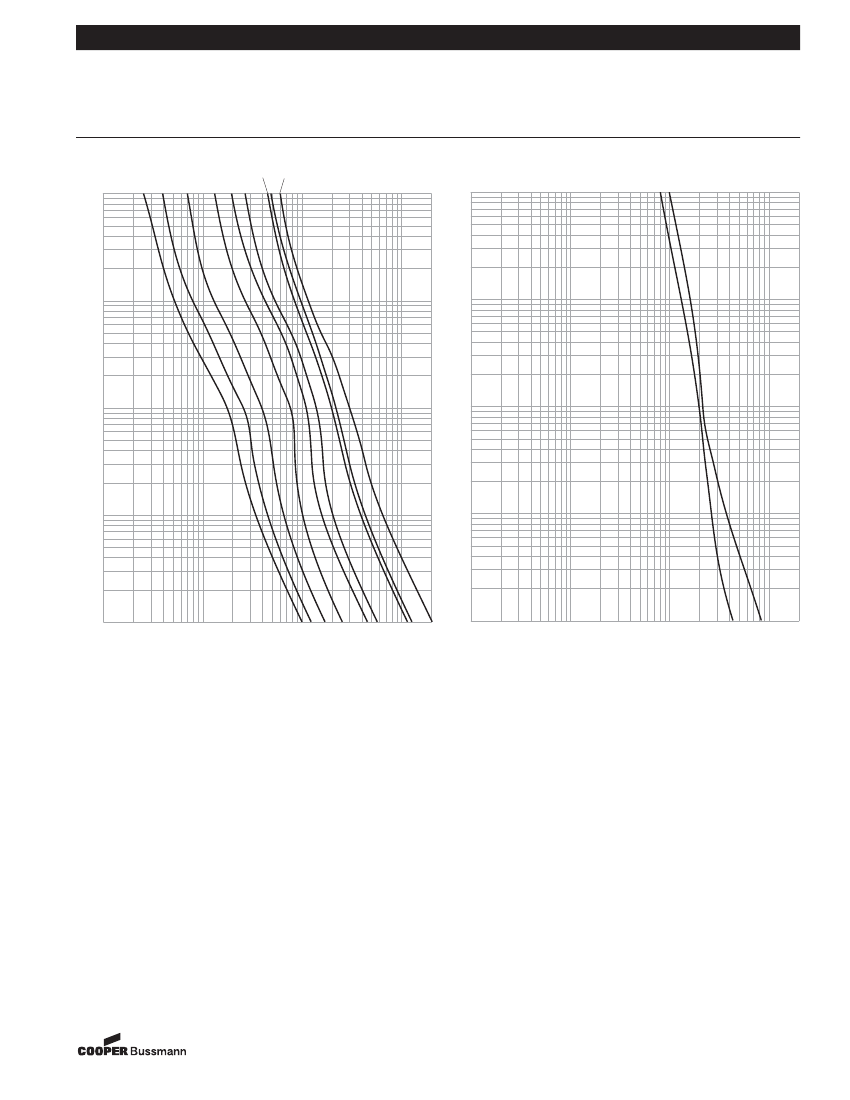

Time-Current Characteristic Curves–Average Melt
3
3.2
4
100
GMQ
& HLQ
Time-Current Characteristic Curves–Average Melt
100
AMPERE
RATING
AMPERE
RATING
.2
1
1.6
2
.3
.5
10
10
TIME IN SECONDS
TIME IN SECONDS
1
1
.1
.1
100
100
200
CURRENT IN AMPERES
CURRENT IN AMPERES
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This
bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without
notice, to change design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any
technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
5-22-02
SB02233
Form No. GMQ & HLQ
Page 2 of 2
Data Sheet: 2030
200
.1
10
10
.1
1
1
.01
.01
5
7
