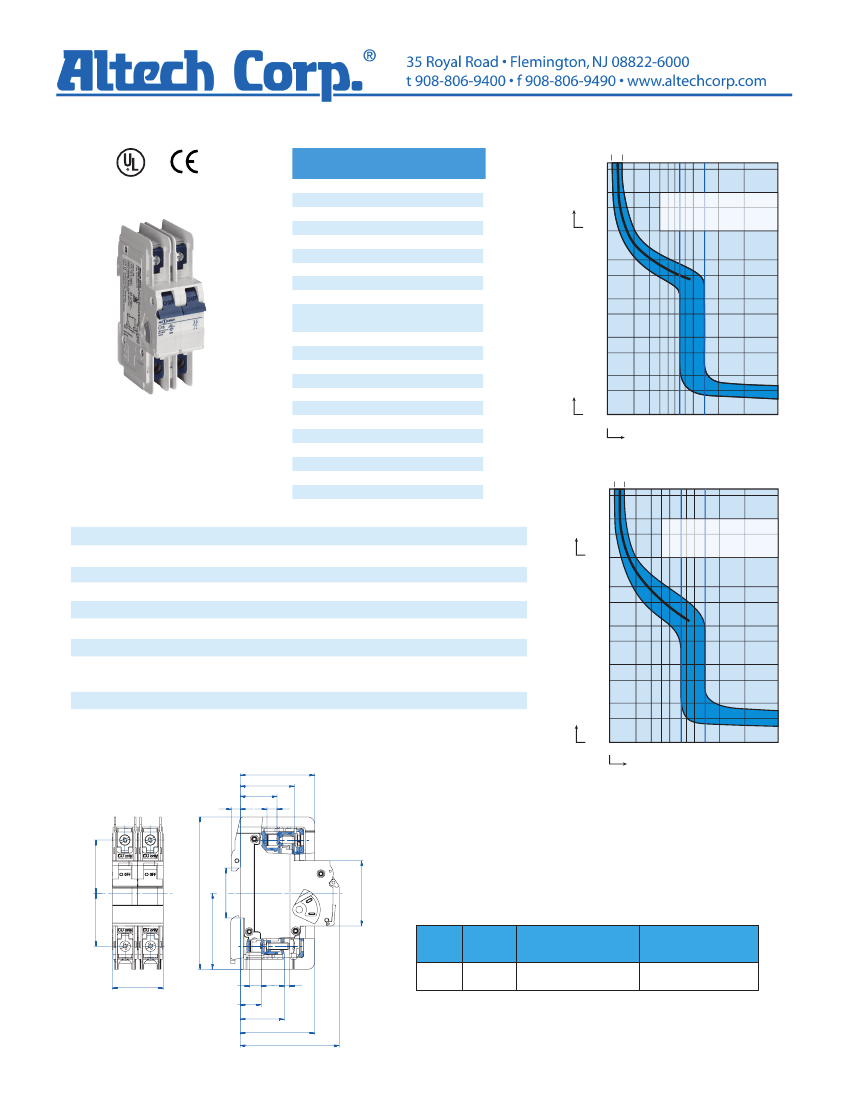

UL-Series - UL489 Miniature Molded Case Circuit Breaker -
2 pole C-Trip - DC
C
LISTED
C.B.
US
E329510
Two Pole
Standard Pack:
6
Weight:
0.3-32A:
1.74kg (3.83lb.)
40-63A:
1.98kg (4.37lb.)
Rated
Type/
Current Cat. No.
0.3A
2C03DL
0.5A
2C05DL
1.0A
2C1DL
1.6A
2C1.6DL
2.0A
2C2DL
3.0A
2C3DL
4.0A
2C4DL
5.0A
2C5DL
6.0A
2C6DL
8.0A
2C8DL
10A
2C10DL
12A
2C12DL
13A
2C13DL
15A
2C15DL
16A
2C16DL
20A
2C20DL
25A
2C25DL
30A
2C30DL
32A
2C32DL
40A
2C40DL
50A
2C50DL
60A
2C60DL
63A
2C63DL
Rated
Voltage
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
250V DC
1.05-1.35xI
N
60
40
Minutes
10
4
1
Thermal Overload
“Must Trip” < 1 hr = 135% RC
“Must Not Trip” > 1 hr = 105% RC
Tripping time t
10
4
1
0.4
10
-1
4x10
-2
Seconds
10
-2
4x10
-3
10
-3
1
2
3 4 5 67 8 10
14
20
40
100
Multiple of Rated Current
0.3A Through 10A Rated Current
1.05-1.35xI
N
60
40
Minutes
10
4
1
Thermal Overload
“Must Trip” < 1 hr = 135% RC
“Must Not Trip” > 1 hr = 105% RC
Current/ Voltage Rating
Calibration Temperature
Ambient Temperature
Storage Temperature
Terminal Torque (min/max)
Electrical Life
Mechanical Life
Vibration Resistance
0.3 - 63A/ 250V DC
40ºC (104ºF)
-25ºC to +55ºC (-13ºF to 131ºF )
-40ºC to +70ºC (-40ºF to 158ºF )
2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
6000 switching cycles ON/ OFF
10000 switching cycles ON/ OFF
> 15g according to DIN EN 60069-2-59 during a load
with I1 = 1.05 x IN
Tripping time t
10
4
1
0.4
10
-1
4x10
-2
Resistance to mechanical shocks
25g @ 11ms
Seconds
10
-2
4x10
-3
10
-3
1
2
3 4 5
7
8 10
14
20
40
100
51.5 mm
25.5 mm
6
37.5 mm
7
Multiple of Rated Current
12A Through 63A Rated Current
“C” Magnetic Trip Parameters
Rated current 0.3A to 63A.
1. Hold for a minimum of 100ms at surge of 7 times rated current.
2. Trip in under 100ms at 14 times rated current.
36.8 mm
105.3 mm
34.5 mm
45 mm
Short Circuit Interrupting Capacity
DC
No.
Poles
Type
DC
0.3-32A
10kA @ 250V
40-63A
10kA @ 250V
36.5 mm
52.5 mm
35 mm
8
14.5 mm
30.5 mm
4
2
2 Pole
51.5 mm
68.4 mm
