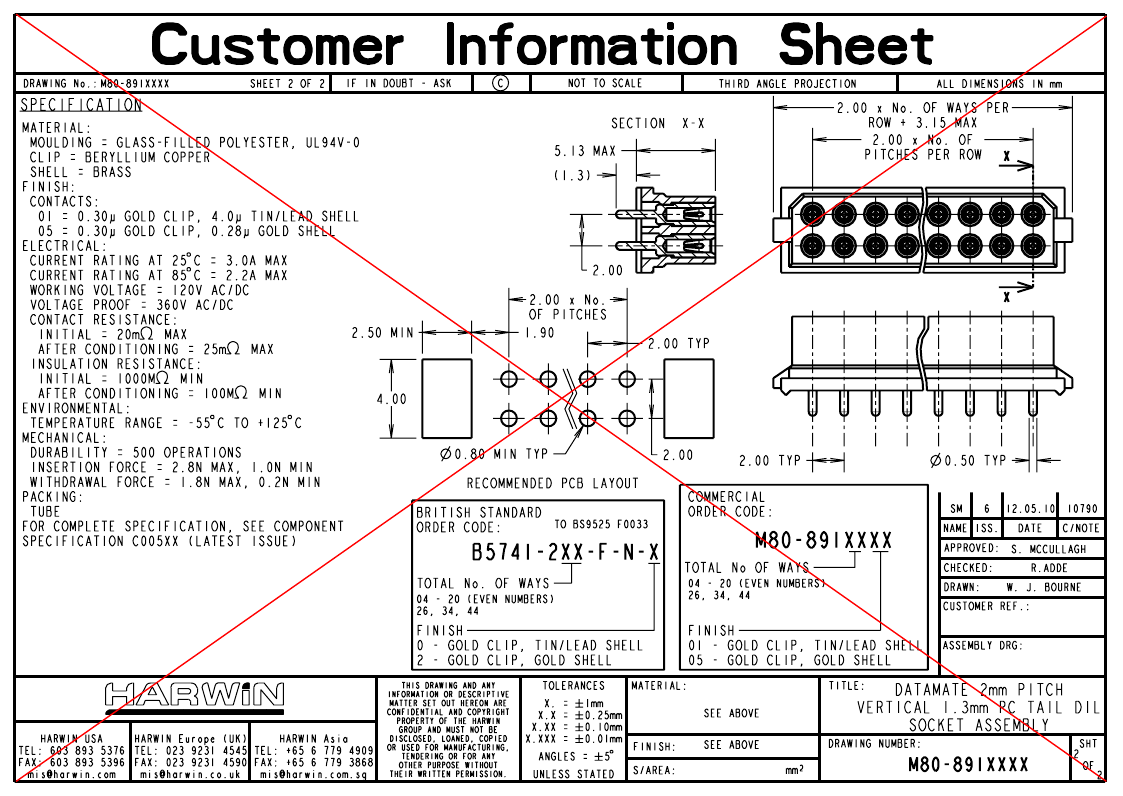

Preview

B5741-220-F-N-0: DescriptionHeaders & Wire Housings 20 PIN FEMALE PC DUAL ROW; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

B5741-220-F-N-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B5741-220-F-N-0	-	-	View	Buy Now

B5741-220-F-N-0 Overview

Headers & Wire Housings 20 PIN FEMALE PC DUAL ROW

B5741-220-F-N-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

OBSOLETE

All M80 versions

LTB date 09-03-2018

C/N 20971

All BS versions

LTB date 09-03-2018

C/N 21115
