34691-0082 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 34691-0082

34691-0082: DescriptionAutomotive Connectors STAC64 RA HDR 8 CKT BRN POL C TRAY; CategoryThe connector The connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

34691-0082 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34691-0082	-	-	View	Buy Now

34691-0082 Overview

Automotive Connectors STAC64 RA HDR 8 CKT BRN POL C TRAY

34691-0082 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.868 inch
body length	0.74 inch
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	60.048 N
Insulator color	BROWN
insulator material	THERMOPLASTIC
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
reliability	COMMERCIAL
Terminal length	0.119 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Evacuation force-minimum value	75.616 N
Base Number Matches	1

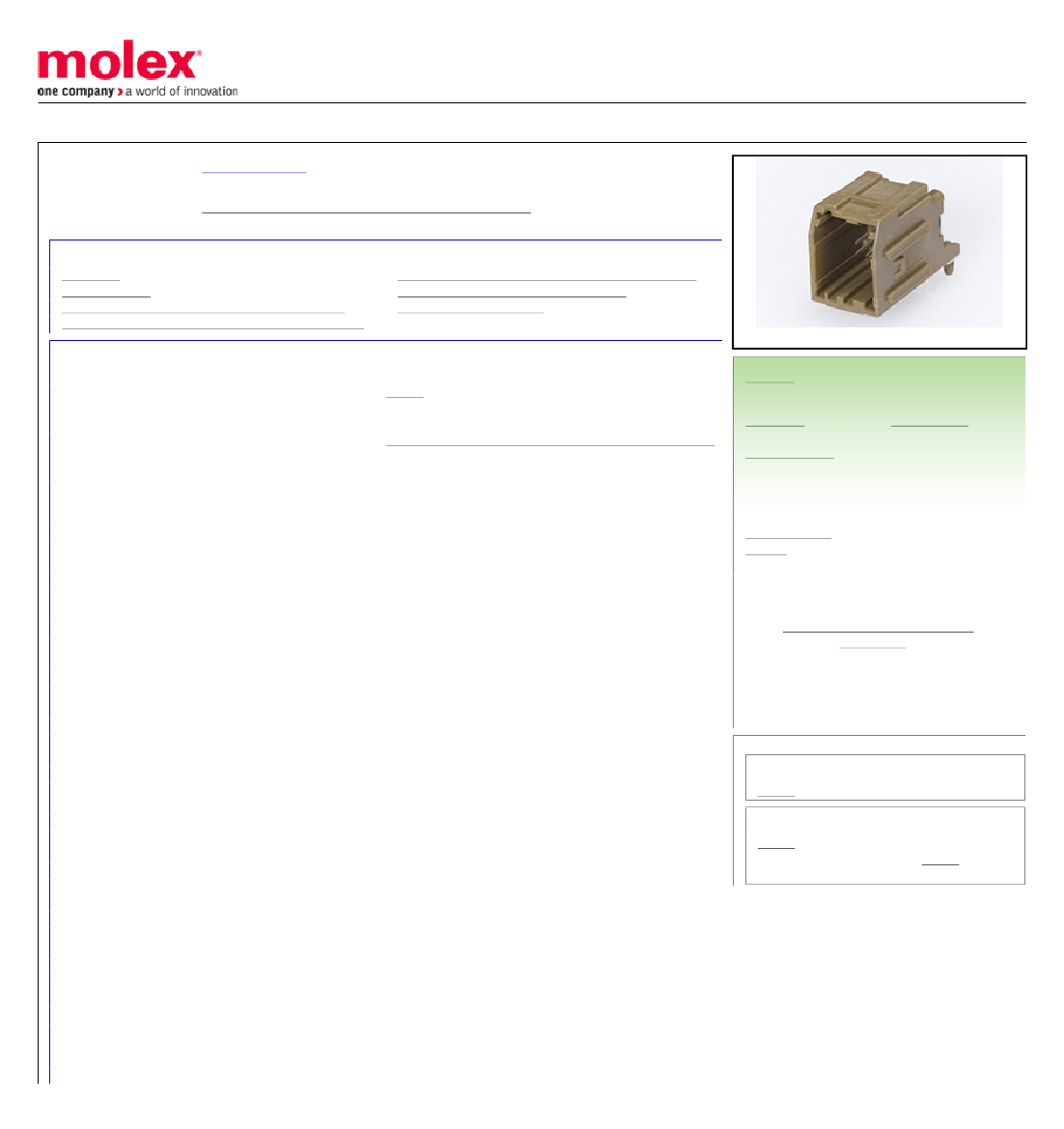

Preview

Download Datasheet

View All

This document was generated on 05/14/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0346910082

Active

Stac64 Single, Multi-Pocket and Hybrid Header System

Stac64 Right Angle Header Assembly, 8 Circuits, Polarization C, Brown Tray

Documents:

3D Model

Drawing (PDF)

Product Specification PS-34729-020-001 (PDF)

Application Specification AS-34729-020-001 (PDF)

General

Product Family

Series

Application

Comments

Overview

Product Literature Order No

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Packaging Specification PK-31300-892-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

PCB Headers

34691

Power, Wire-to-Board

Polarization C

Stac64 Single, Multi-Pocket and Hybrid Header System

987650-4561

Stac64

883906859091

Brown

None

Yes

Brass

Tin

High Temperature Thermoplastic

5.136/g

Right Angle

3.36mm

Yes

None

1.57mm

Tray

2.54mm

Yes

-40°C to +105°C

Through Hole

10.0A

500V

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Contained Per -

ED/01/2018 (15

January 2018)

Boric acid

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Search Parts in this Series

34691 Series

Mates With

34729 2.54mm (.100") Pitch Stac64

Receptacle Assembly <br> 31408 USCAR

2.54mm (.100”) Pitch Receptacle
