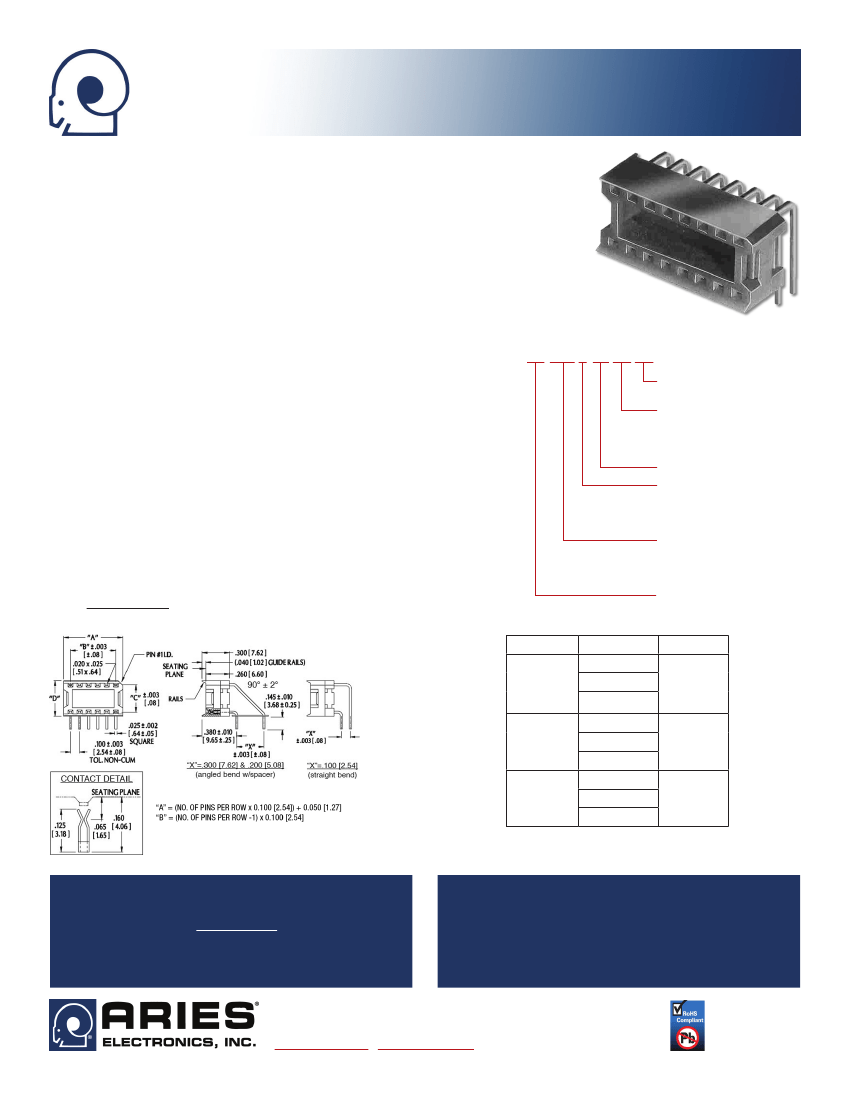

Series 800 Vertisocket DIP Socket
w/Bifurcated Contacts for Horizontal Mounting
™
FEATURES
• Full line of Horizontal Display DIP Sockets for DIP packaging of LEDs, incandescent lamps, DIP
switches, test points, etc.
• Variations of Mounting Position and Pin Configuration provide Exceptional Design Freedom
• Restricted Entry for Contact Protection
• Accepts Standard LEDs and Incandescent Displays as well as 0.500 [12.70] and 0.600 [15.24]
Tall Displays
GENERAL SPECIFICATIONS
•
STANDARD BODY MATERIAL: black UL 94V-0 4/6 Nylon
•
BIFURCATED CONTACTS: Grade A spring-tempered Phosphor Bronze per QQ-B-750
•
CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min.
Ni per QQ-N-290 –OR– 200µ min. matte Sn per ASTM B545-97(2004)e1 over 50µ
[1.27µ] min. Ni per QQ-N-290 –OR– 200µ [5.08µ] min. bright 90/10 Sn/Pb per MIL-
T-10727 Type 1 over 50µ [1.27µ] min. Ni per QQ-N-290
•
SPACER: Fish paper
•
CONTACT CURRENT RATING: 1.5 amps
•
OPERATING TEMPERATURE: 221°F [105°C] Sn & Sn/Pb plating; 257°F [125°C] Au
plating
•
INSERTION FORCE: 110g/pin average
•
WITHDRAWAL FORCE: 75g/pin average
•
ACCEPTS: flat leads up to 0.014 [0.36] thick and 0.020 [0.51] wide; round leads up
to 0.020 [0.51] dia.
•
ACCEPTS LEAD LENGTHS: 0.075-0.160 [1.91-4.06]
ORDERING INFORMATION
XX-X82 X-90 XX XX
Optional Rails
WR = Without Rails
Plating Options
T = Sn
TL = Sn/Pb
(blank) = Au
Display Angle
Row-to-Row
0: “X” = 0.100 [2.54
2: “X” = 0.200 [5.08]
3: “X” = 0.300 [7.62]
Series
282: “C” = 0.100 [5.08]
82: “C” = 0.300 [7.62]
682: “C” = 0.600 [15.24]
No. of Pins
(See Table)
Dim. “D”
0.290 [7.37]
Dim. “X”
0.100 [2.54]
0.200 [5.08]
0.300 [7.62]
0.100 [2.54]
0.390 [9.91]
0.200 [5.08]
0.300 [7.62]
0.690
[17.53]
0.100 [2.54]
0.200 [5.08]
0.300 [7.62]
8 thru 40, 48
8, 14 thru 20
8, 10
No. of Pins
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.044 ±0.002 [1.12 ±0.05] dia.
Consult Data Sheet 13002 for Vertical Mounting Vertisocket™ with bifurcated contacts.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR VERTICAL MOUNTING, SEE DATA SHEET 13002
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
13001
Rev. 5.3
1 of 1
