73415-3593 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 73415-3593

73415-3593: DescriptionRF Connectors / Coaxial Connectors SMP PLUG PCB EDGE LAUNCHER50OHM; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

73415-3593 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	73415-3593	-	-	View	Buy Now

73415-3593 Overview

RF Connectors / Coaxial Connectors SMP PLUG PCB EDGE LAUNCHER50OHM

73415-3593 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	not_compliant
Samacsys Description	RF Connectors / Coaxial Connectors SMP PLUG PCB EDGE LAUNCHER50OHM
subject depth	0.2 inch
Body diameter	0.25 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMP CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	6 mΩ
Contact style	COAX
Coupling type	SNAP
Dielectric withstand voltage	700VAC V
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	40 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-65 °C
Rated current (signal)	1.2 A
Shell surface	GOLD
Shell material	BRASS
Termination type	SURFACE MOUNT
Total number of contacts	1
voltage standing wave ratio	1.5
Base Number Matches	1

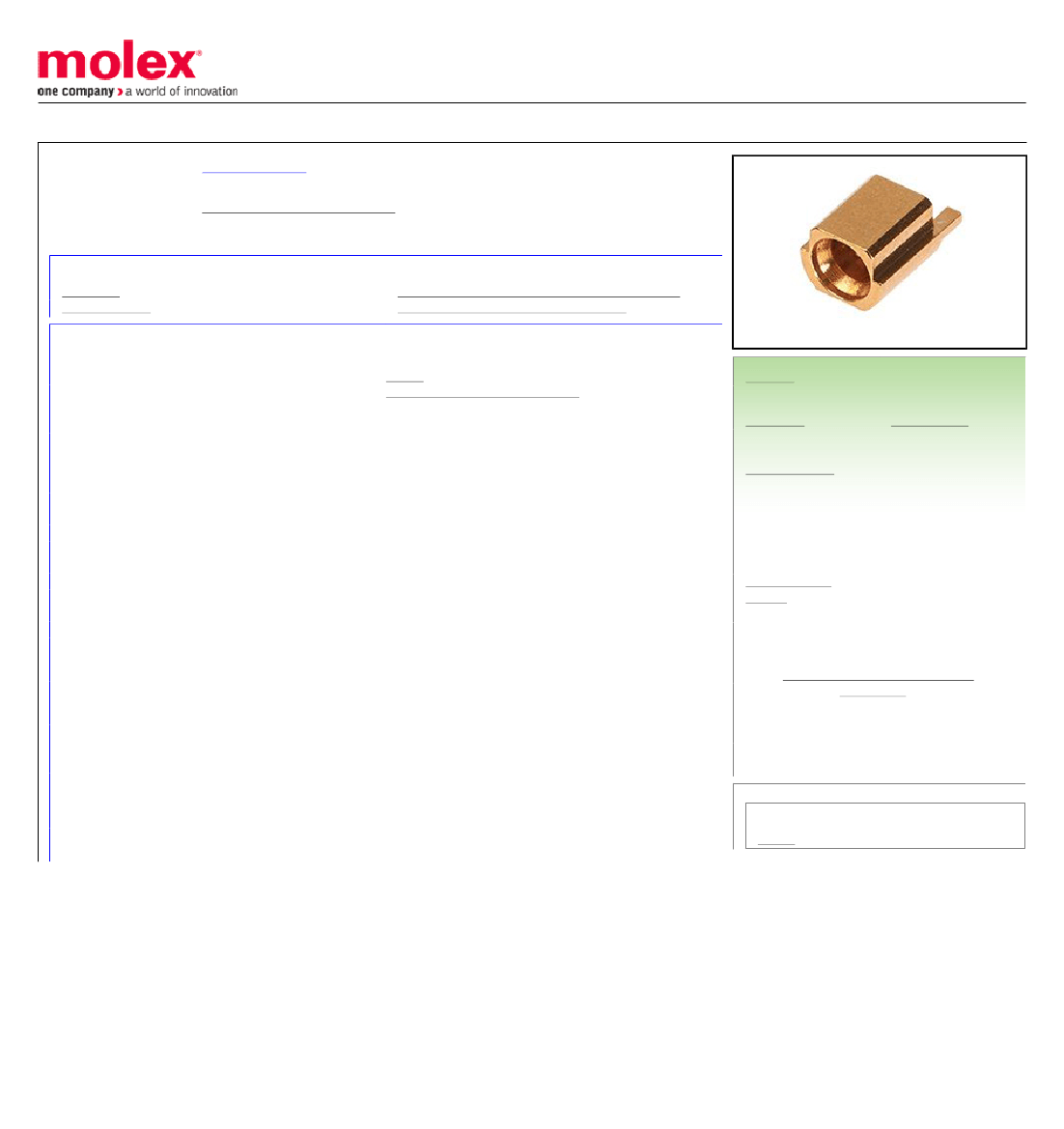

Preview

Download Datasheet

View All

This document was generated on 02/22/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0734153593

Active

SMPM and SMP RF Connectors

50 Ohms, SMP Edge Mount PCB Plug, 0.25µm Gold Plated, Leg Length 1.27mm, 20

Pieces Per Tray

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Overview

Product Name

Style

UPC

Wire/Cable Type

Physical

Gender

Keying to Mating Part

Net Weight

Orientation

PCB Mounting

Packaging Type

Panel Mount

Panel Mount Method

Reverse Polar

Electrical

Impedance

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-freeProcess Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-89675-332-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

RF/Coax Connectors

73300

SMPM and SMP RF Connectors

SMP

PCB

822350970143

N/A

Plug

None

0.631/g

Straight

Edge Mount

Tray

N/A

50Ω

010

REFLOW

002

260

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant with

Exemption 6(c)

REACH SVHC

Contained Per -

ED/01/2018 (15

January 2018)

2,4-Di-tert-butyl-6-(5-

chlorobenzotriazol-2-

yl)p

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

50 Image

Not Relevant

Not Contained

PS-89675-332-001

SD-73415-359

Search Parts in this Series

73300 Series

This document was generated on 02/22/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
