154-AVR20-E: DescriptionIEEE 1394 Connectors 4 PIN RIGHT ANGLE; CategoryThe connector; File Size224KB，1 Pages; ManufacturerKobiconn; Environmental Compliance

Download Datasheet Parametric View All

154-AVR20-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	154-AVR20-E	-	-	View	Buy Now

154-AVR20-E Overview

IEEE 1394 Connectors 4 PIN RIGHT ANGLE

154-AVR20-E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Kobiconn
Product Category	IEEE 1394 Connectors
RoHS	Details
Product	IEEE 1394 Connectors
Connector Type	IEEE 1394 Receptacle
Number of Positions	4 Position
Pitch	0.8 mm
Contact Plating	Gold
Contact Material	Copper Alloy
Gender	Female
Mounting Style	Through Hole
Termination Style	Quick Connect
Packaging	Tray
Color	Black
Mounting Angle	Right
Number of Ports	1
Insulation Resistance	100 MOhms
Standard	IEEE 1394
Factory Pack Quantity	150

Preview

Download Datasheet

View All

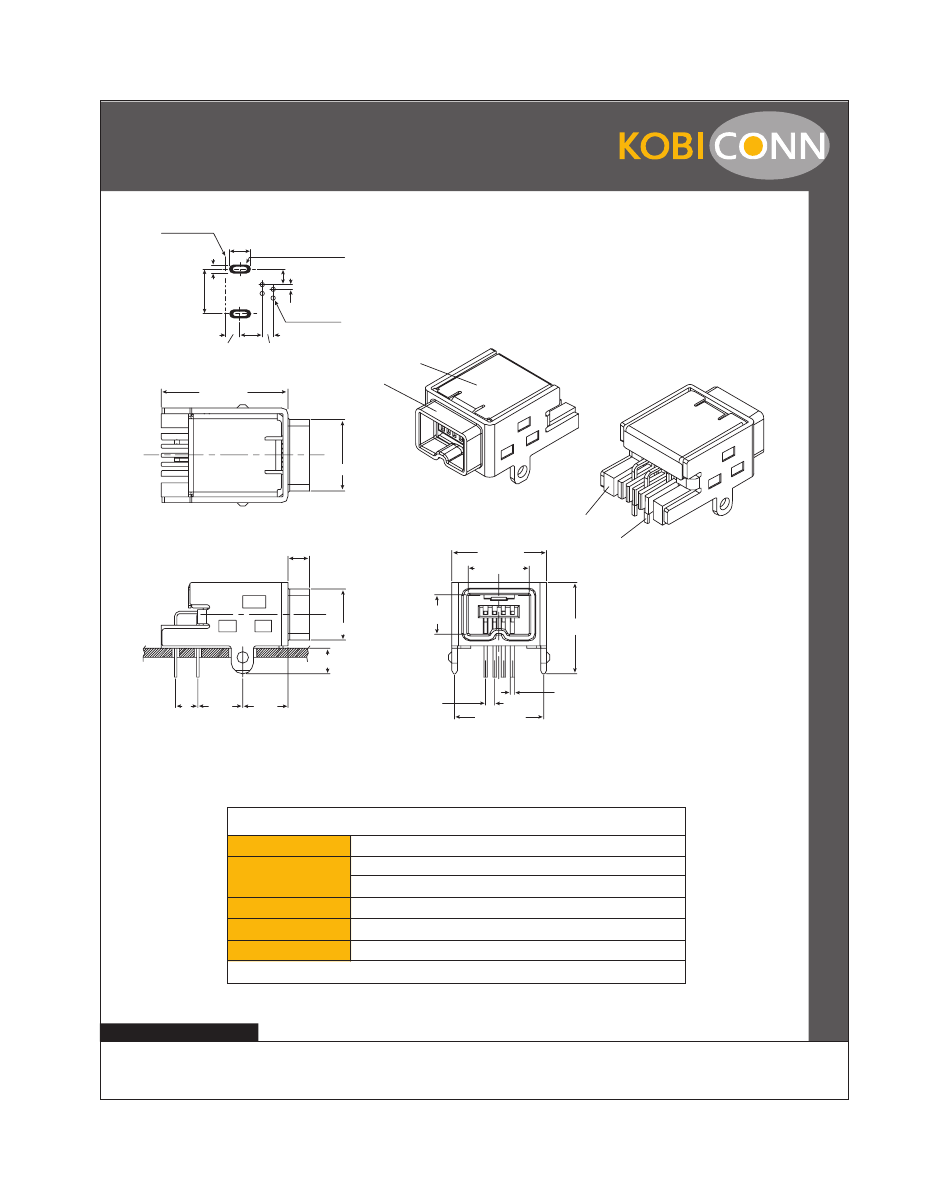

IEEE 1394 Firewire, 4 Pin Receptacle

154-AVR20-E

IEEE 1394 Firewire, 4 Pin Receptacle

PCB Edge

1.6 ±0.1

4.0 ±0.1

1.0 ±0.1 x 2.5 ±0.1

2.80

1

3

2

4

0.80 typ.

ø0.7 ±0.05

2.5 Min. 4.00 2.00

2

11.4 (.44)

1

6.45 ref. (.25)

3

4

1.9 (.07)

8.5 (.33)

5.45 (.21)

3.55 (.13)

4.55 ref. (.17)

2.30 (.09)

2.00

(.07)

4.00

(.15)

0.80 typ. (.03)

8.00 (.31)

0.35 typ. (.01)

8.2 (.32)

4.10

(.16)

Dimensions: mm (In.)

Mechanical Specifications

Contact:

Housing:

Copper alloy / plated gold in mating area; tin-lead on tails

(PBT) thermoplastic, gless filled, 130°C

(PA-6T) high temperature thermoplastic

Spring:

Shell:

Contact plating:

Stainless

154-AVR20-E

Steel / tin-lead plated over copper

Select plated gold 30μ

RoHS Compliant

Date Last Revised: 7-12-06

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

KC-301010

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
