85054-0062: DescriptionDIN 41612 Connectors DINCONN. R+ FEMALE 1 ALE 128CKT 850540062; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85054-0062 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	85054-0062	-	-	View	Buy Now

85054-0062 Overview

DIN 41612 Connectors DINCONN. R+ FEMALE 1 ALE 128CKT 850540062

85054-0062 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 603-2
body width	0.512 inch
subject depth	0.802 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9174 N
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	85054
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	DETENT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C,D
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	128
UL Flammability Code	94V-0

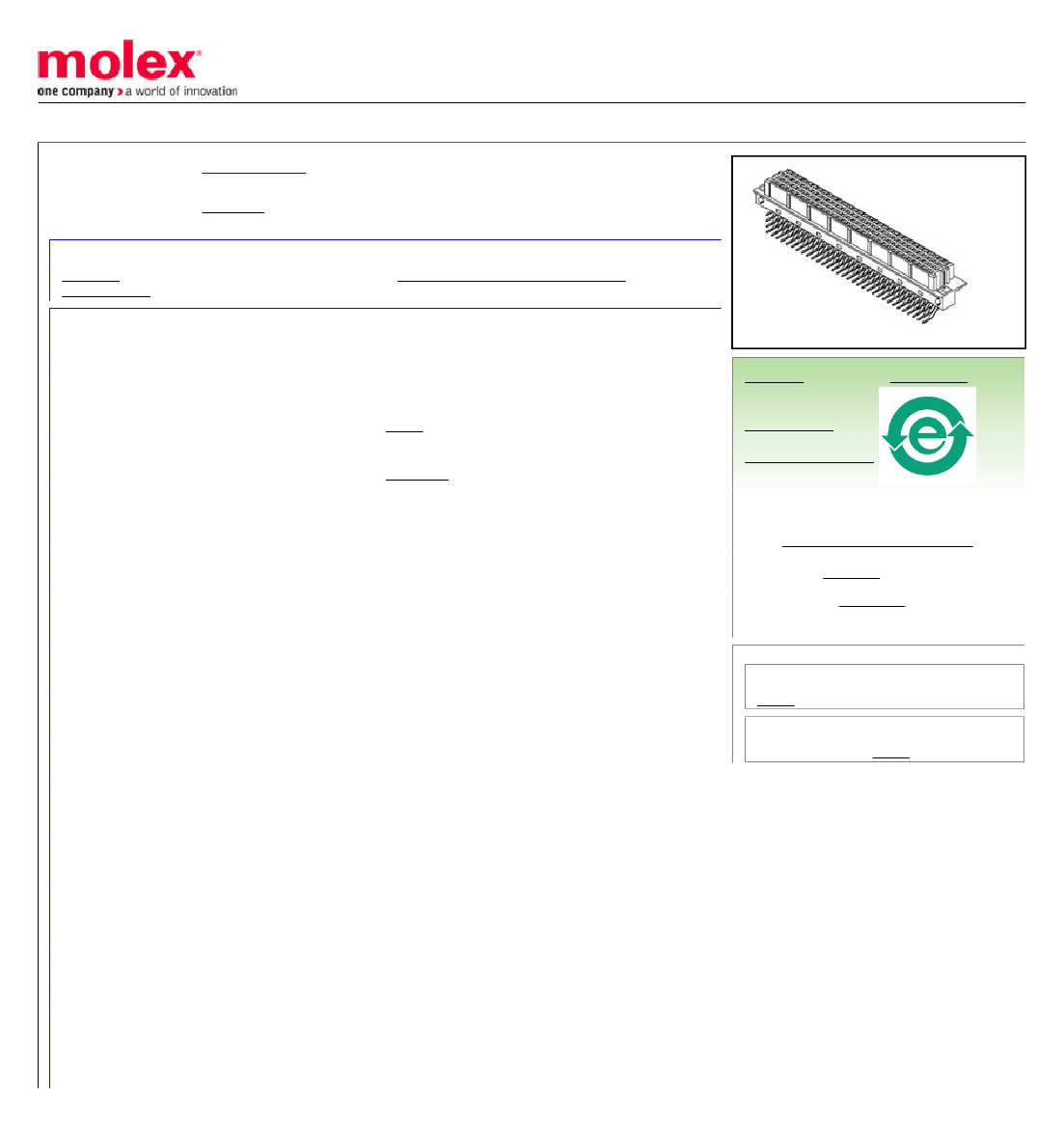

Preview

Download Datasheet

View All

This document was generated on 06/16/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0850540062

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Receptacle, Style R Reverse 4-Row, 128 Circuits

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

Backplane Connectors

85054

Backplane

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

R+

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

128

500

94V-0

Yes

Open Pin Field

Right Angle

2.80mm (.110")

Yes

1.60mm (.063"), 3.20mm (.126")

Bag

2.54mm (.100")

-55°C to +125°C

Through Hole

Search Parts in this Series

85054Series

Mates With

DIN 41612 Header 85015

Electrical

Current - Maximum per Contact

Data Rate

Real Signals (per 25mm)

Shielded

Voltage - Maximum

1.5A

622.0 Mbps

250V AC (RMS)

Material Info

Reference - Drawing Numbers
