Series 804
QDC

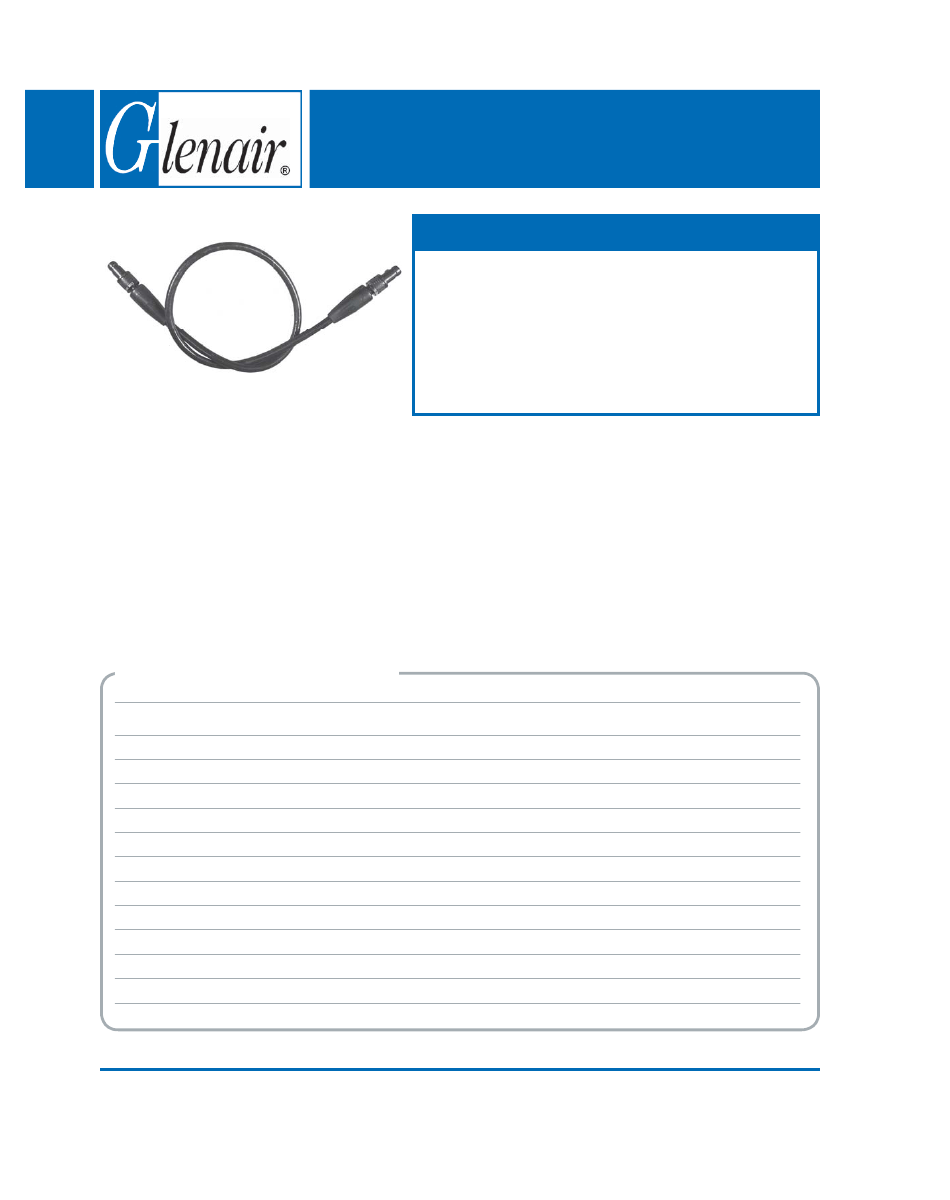

Series 804 ASAP Cordsets
Series 804 “Mighty Mouse”
ASAP Cordsets
Introduction and Specifications
PRODUCT FEATURES
Rugged Polyurethane Cable Jackets
ASAP QDC Cordsets Available with Plug and
Receptacle Connectors
Ideal for Hostile Environments
Braided Tinned Copper Shields Band
Terminated Directly to Connector Body
Glenair ASAP “Mighty Mouse” Cordsets Offer Watertight
Sealing and Excellent Cold Temperature Flexibility
Rugged thermoplastic polyurethane cable jackets provide excellent toughness and good
environmental weathering. Braided tinned copper shields are terminated directly to the connector
body with a stainless steel
BAND-IT
®
clamp . Ideal for hostile environments, these ASAP
cordsets are suitable for tactical military gear, geophysical equipment and industrial applications.
Contact Glenair for other cable options not covered in this catalog. Glenair offers a wide variety
of cabling materials and constructions to meet any requirement.
Series 804 Cordset Specifications
Primaries (Conductors)
Wire Color Code
Cable Shield
Jacket
Shield Termination
Operating Temperature
Overmolding Compound
Solvent Resistance
Resistance at 20° C.
EMI Shielding Effectiveness
Contact Current Rating
Dielectric Withstanding Voltage
Insulation Resistance
Immersion
#24 AWG Teflon®-Insulated Tinned Copper, 19 Strand, Per MIL-W-22759/11-24
3 - 10 Pin Cables: Color-Coded in Accordance With MIL-STD-681 System 1, Wire Number 1 Black
19 - 85 Pin Cables: White
Tinned Copper Braid, 90% Minimum Coverage
Thermoplastic Polyurethane, Black, UL 94 V-0 Rated
BAND-IT®
Termination Tystem With Stainless Steel Band
-30° C. to +105° C.
Polyamide
Excellent Resistance to Most Solvents, Fuels and Oils; Poor Resistance to Strong Acid and Bipolar Solvents (Alcohol)
(8 Milliohms Mated Contacts) + (15 Milliohms Per Foot Of Wire)
40 dB Attenuation, 100 MHz to 1000 MHz
5 Amps Maximum
500 VAC Sea Level
200 Megohms Minimum
1 Meter Immersion for 1 Hour per MIL-STD-810 Method 512
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
F-20
E-Mail: sales@glenair.com
Series 804 “Mighty Mouse”
ASAP Cordsets
807-169, 807-170 & 807-183
How to Order Series 804 ASAP Cordsets

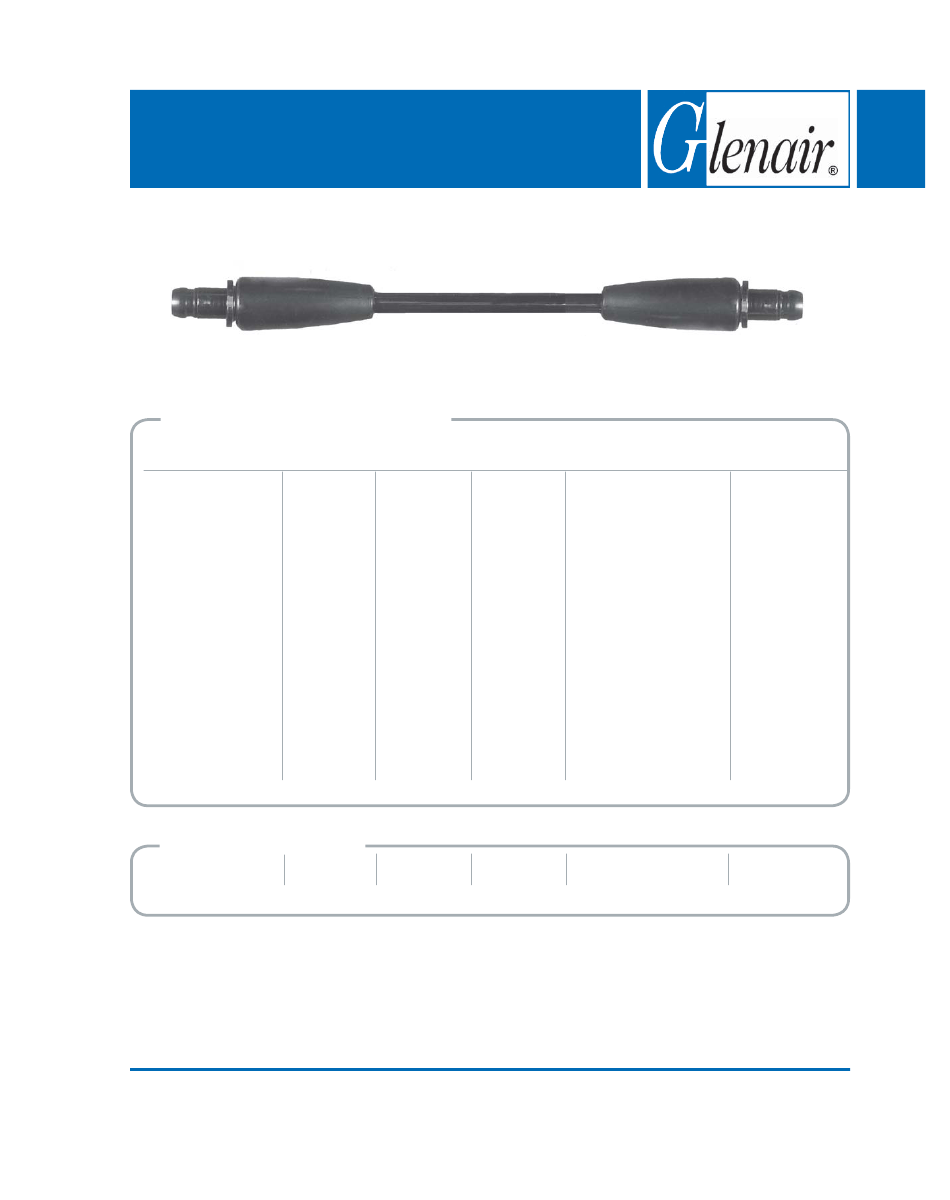

END A
END B
807-169 Plug-to-Plug Cordset Shown
How to Order Series 804 Cordsets
Series
807-169
Plug to Plug Cordset
Number Of
Contacts
4
(Shell Size 6)
End A
Contact Type
P
Male Pin
End B
Contact Type
P
Male Pin
Shell Material / Finish
M
Aluminum, with Electroless
Nickel Finish
Length in Inches
Example:
72 = Six Feet Overall
Length
7
807-170
Plug to In-Line Receptacle
Cordset
(Shell Size 6)
S
Female Socket
S
Female Socket
NF
Aluminum, with Olive Drab
Cadmium Finish
10
(Shell Size 7)
N
No Connector on
End B (Single-
Ended Cable-
Not Applicable
to 807-170)
19
807-183
In-Line Receptacle to
In-Line Receptacle Cordset
(Shell
Size 9)
ZN
Aluminum, with Olive Drab Zinc-
Nickel Finish
37
(Shell Size 12)
ZNU
Aluminum, with Black Zinc-
Nickel Finish
55
(Shell Size 14)
Z1
Stainless Steel, with Passivated
Finish
85
(Shell Size 15)
Part Number Example
807—169
—10
P
S
M
— 48
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
F-21
E-Mail: sales@glenair.com
Series 804
QDC
Series 804
QDC
Series 804 “Mighty Mouse”

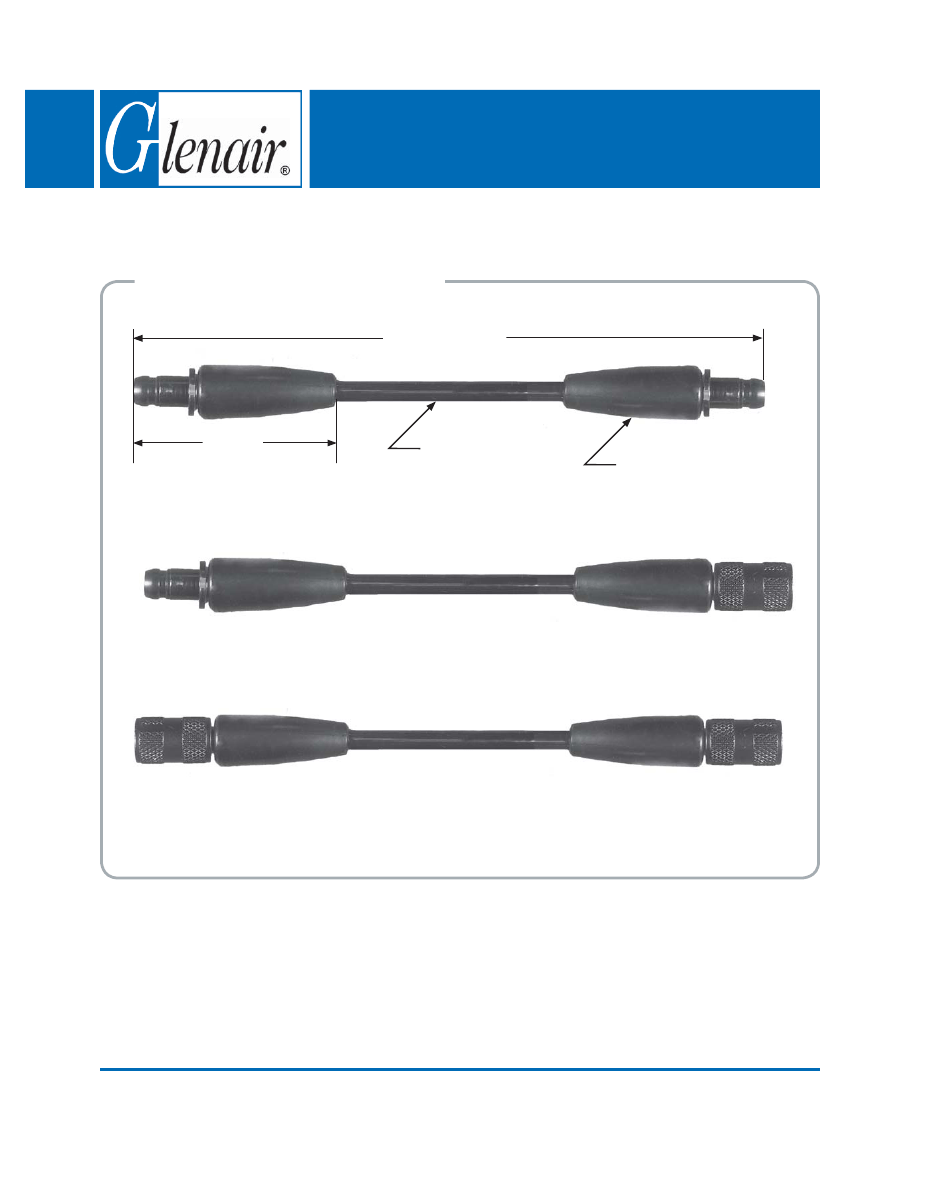

ASAP Cordset Dimensions
807-169, 807-170 & 807-183
ASAP Cordset Dimensions
Series 804 QDC Cordset Dimensions
LENGTH
- .000 (0.0)
+1.000 (25.4)
2.000 (50.8)
MAX
END A
SHIELDED
JACKETED
CABLE
END B
OVERMOLDING
Plug-to-Plug Cordset
807-16
807-1
69
END A
Plug-to-In Line Receptacle
807-170
807-1
70
END B
END A
In Line
Receptacle-t
o-In
Line
Receptacle
Receptacle-
t
807-183
807-
183
END B
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
F-22
E-Mail: sales@glenair.com
