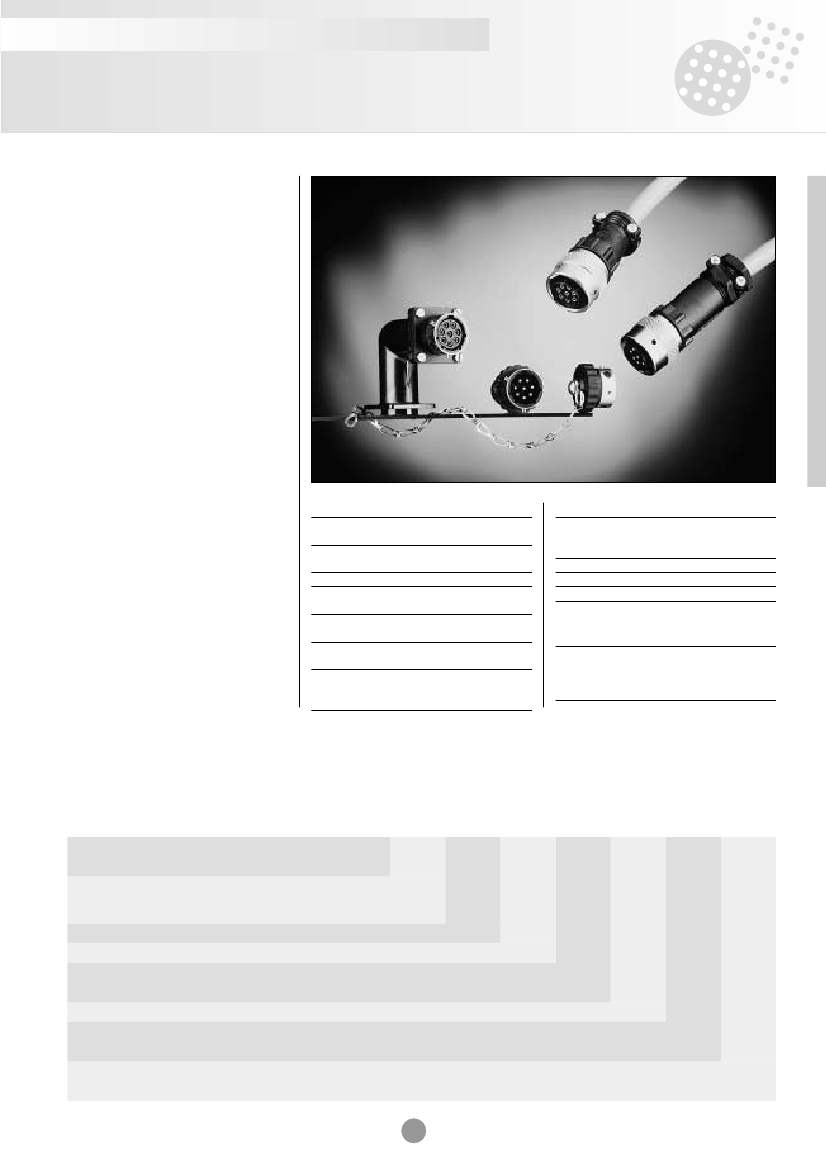

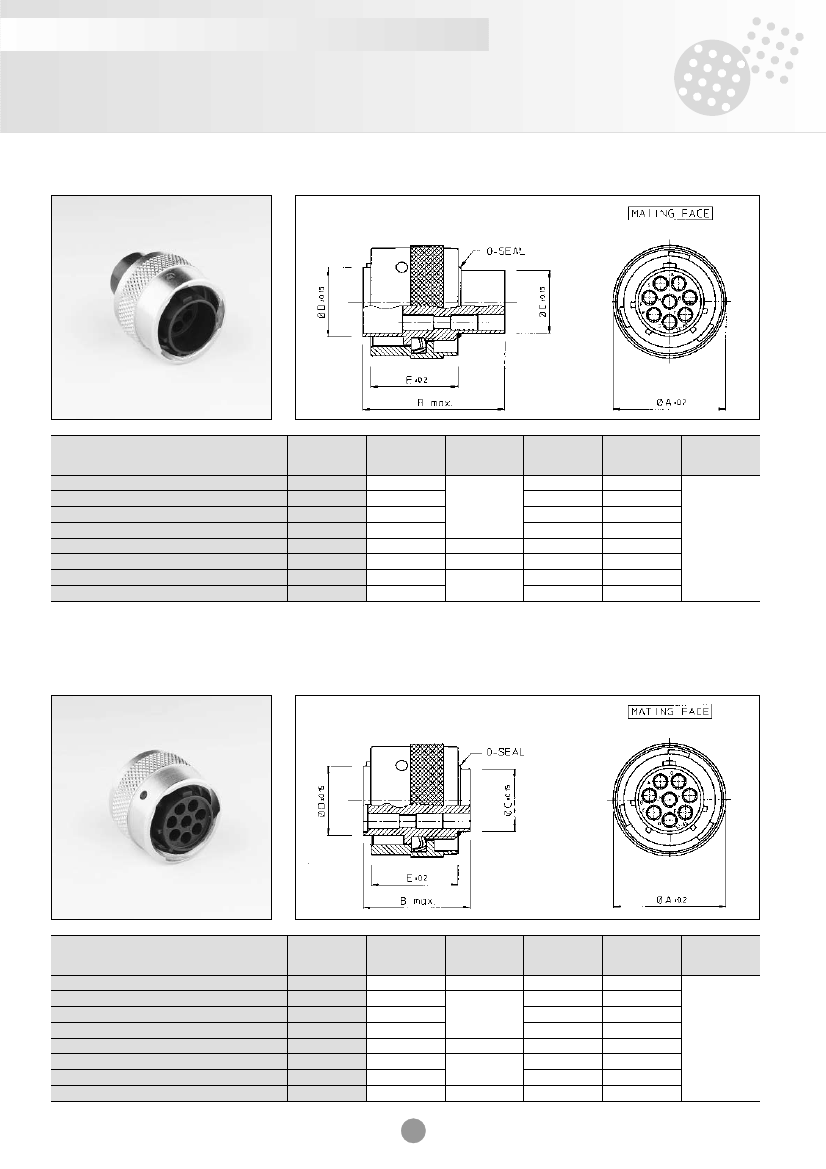

UTG
Plastic connector
with metal coupling
system
Description
“UTG” Metalok Bantam plastic industrial
circular connectors with metal coupling are
a range of multiway connectors to provide
the complete answer to the need for
leightweight, robust circular connectors.
They are available in 8 shell sizes, 11 insert
arrangements
all intermateable,
interchangeable and intermountable
with
the Trim-Trio “UT0” and “UTP industrial
connector families.
- Metalok Bantam
Features and benefits
• Available in 8 shell sizes and 11 insert
arrangements incl. 3 VDE versions.
• Available in plug and receptacle versions
for both male and female contacts.
• Connectors and accessories are moulded
from highly durable glass-filled
thermoplastic.
• Flammability rating: UL94-V0.
• UL approved-file Nr.: E31151
• Metal bayonet ring:
•
- Metal wave spring loaded.
•
- Locks with audible positive “click”
•
- Assures 500 matings and unmatings
Performance characteristics
Operating
temperature:
Insulation
resistance:
Test potential:
Durability:
-55°C to +125°C
Construction
Connector body
Glass filled thermoplast UL94-V0
Colour: black
Coupling ring:
Nickel plated brass
Tri-lock pins:
Stainless steel
Coupling spring: Spring steel
5000 MΩ min.
2000 VAC
500 matings and
unmatings.
Vibration
Per MIL-STD202
resistance:
method 204
Thermal
Per MIL-STD202
shock:
method 207
Degree of protection per DIN 40050:
IP67 in mated condition. “H” version used
with UTG —ST cable clamp
Contact accommodation
• “UTG” connectors accept Trim-Trio
removable snap-lock contacts (see
contact section)
• Contacts to be ordered seperately.
How to order
Connector family :
UTG
UTG
0 :

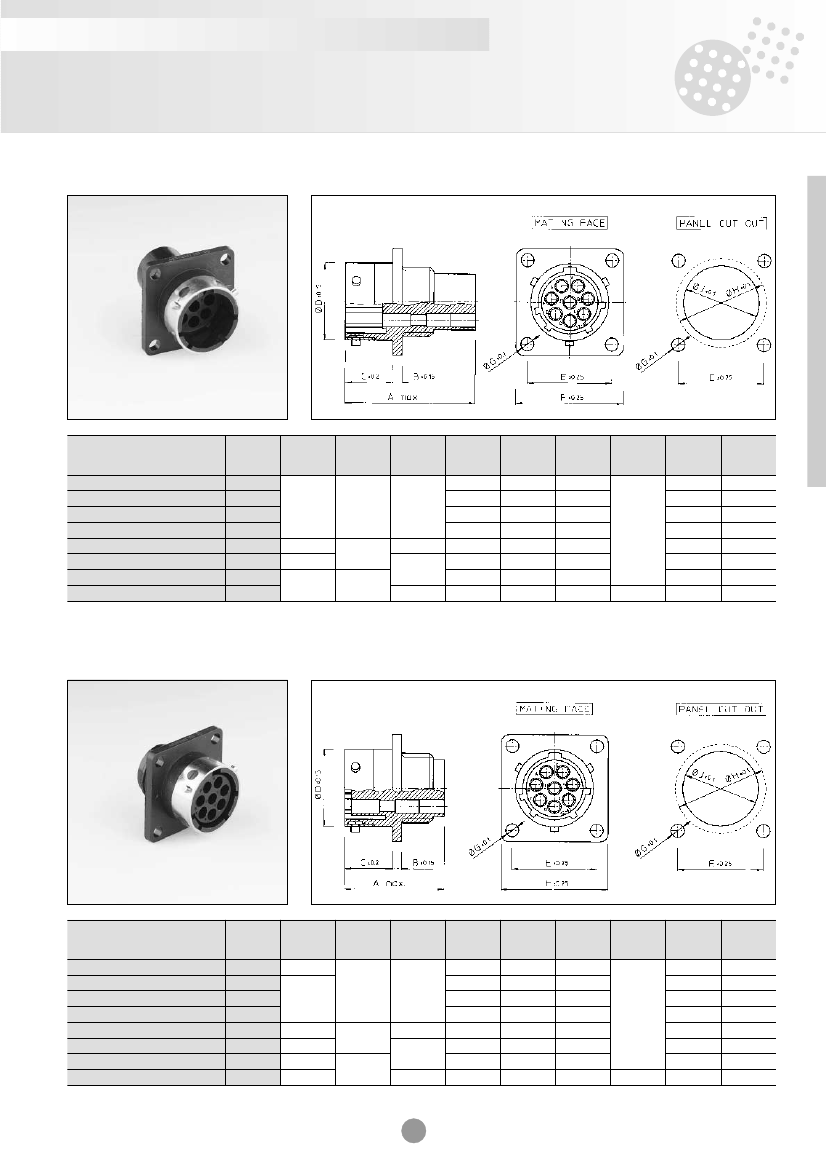

Wall mounting receptacle
6 :

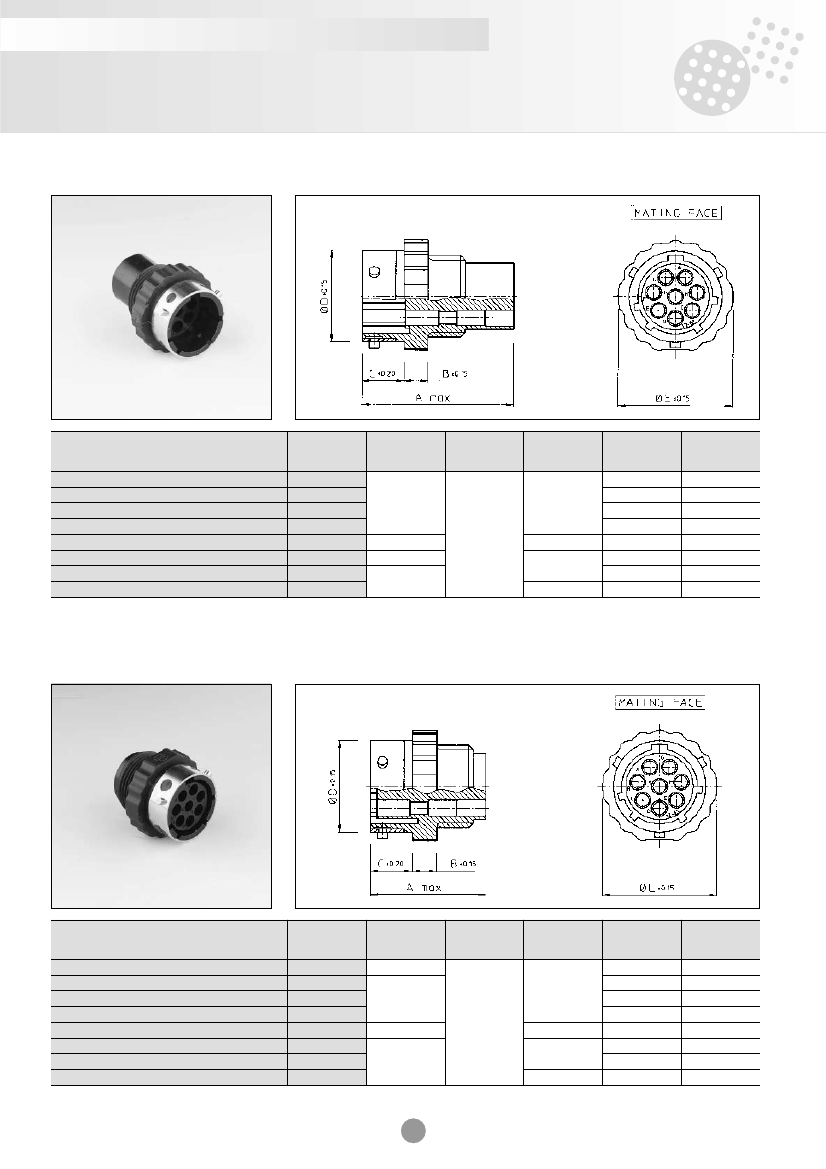

Cable plug
1 :
Free hanging receptacle
0
6
14
14
12
12
P
S
H
N
--
--
Body variation:
Shell size:
Insert arrangement:
Type of contacts: P :
Pin contacts
S :
Socket contacts
Plating
Application
N :
Nickelplated bayonet ring
No letter :
Standard version
H :
Water protected version (only receptacle)
No letter :
Moulded-in contact marking (standard version)
Others :
Specials versions
Design variation
11
UTG
