45912-0035 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 45912-0035

45912-0035: DescriptionStandard Card Edge Connectors Power Edge Assy Powe y Power / Signal CPI; CategoryThe connector The connector; File Size39KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

45912-0035 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	45912-0035	-	-	View	Buy Now

45912-0035 Overview

Standard Card Edge Connectors Power Edge Assy Powe y Power / Signal CPI

45912-0035 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POWER EDGE, TERMINAL PITCH FOR POWER CONTACTS : 12.90 MM, PANEL MOUNTABLE
Board mount options	COMPLIANT BOARDLOCK
body width	0.354 inch
subject depth	0.591 inch
body length	2.071 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.169 inch
Terminal pitch	2.5 mm
Termination type	PRESS FIT
Total number of contacts	26
Evacuation force-minimum value	.139 N
Base Number Matches	1

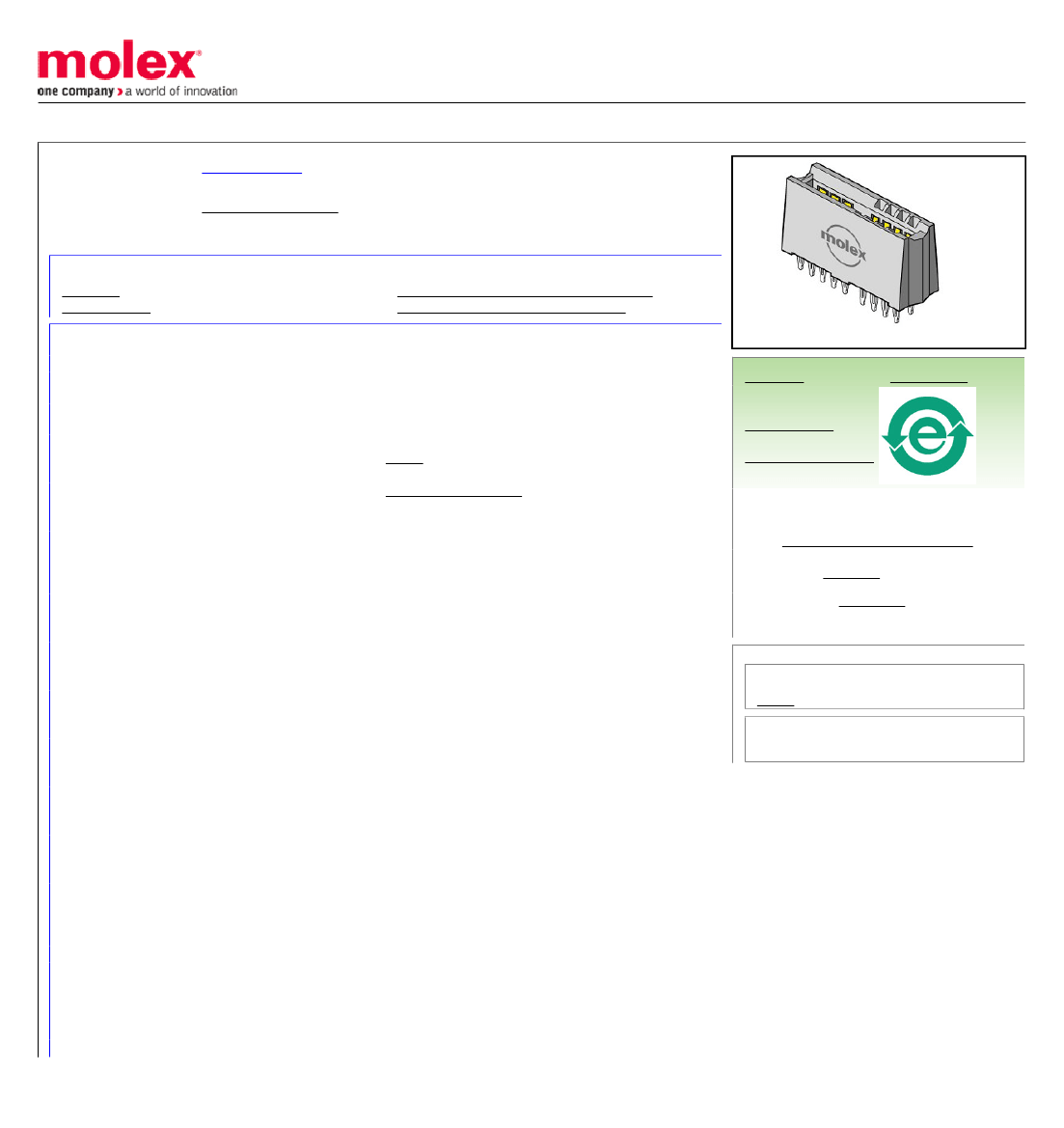

Preview

Download Datasheet

View All

This document was generated on 08/13/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

45912-0035

Active

Edge Card Connectors

12.90mm Pitch EXTreme PowerEdge™, Mixed Power/Signal Card Edge Connector,

Double Sided, 4 Segments (Signal, Signal, Power, Signal Sequence), Press-Fit

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45719-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

30482572

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

CSA

TUV

General

Product Family

Series

Component Type

Overview

Product Name

UPC

Edge Card Connectors

45912

Edgecard to PCB

Edge Card Connectors

EXTreme PowerEdge™

822350710022

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

(p)ower-(s)ignal Configuration

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

PC Tail Length

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Termination Interface: Style

8s - 8s - 2p - 8s

Black

250

Vertical (Top Entry)

94V-0

N/A

High Performance Alloy (HPA), Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

8.063/g

4.50mm

2.40mm

Tray

12.90mm

0.762µm

3.810µm

-40°C to +105°C

Through Hole - Compliant Pin

Search Parts in this Series

45912Series

Mates With

1.58mm double sided card edge

Electrical

Current - Maximum per Contact

Voltage - Maximum

3A, 40A

250V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-45719-001

SD-45912-001

Recommended Resources
