76762-8561

Description
Hard Metric Connectors VHDM 6R SHLD END ASY H-SERIES 25C LF
CategoryThe connector    The connector
File Size27KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

76762-8561 Online Shopping

Suppliers Part Number Price MOQ In stock
76762-8561 - - View Buy Now

76762-8561 Overview

Hard Metric Connectors VHDM 6R SHLD END ASY H-SERIES 25C LF

76762-8561 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time7 weeks
body width0.681 inch
subject depth0.484 inch
body length2.244 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleBLADE PIN-SKT
Dielectric withstand voltage750VAC V
Durability200 Cycles
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number76762
Plug contact pitch0.079 inch
Match contact row spacing0.089 inch
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number13
Number of rows loaded6
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.2606 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.071 inch
Terminal pitch2.0066 mm
Termination typePRESS FIT
Total number of contacts150
This document was generated on 03/02/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0767628561
Active
VHDM H-Series Backplane Connectors
VHDM H-Series Single-Ended Board-to-Board Backplane Header, 2.00mm Pitch,
Vertical, 6-Row, Guide Pin, Shield End Module, Open End Version, 150 Circuits, Pin
Length 4.75mm, Keying Orientation F . Series:76764 Enables designers to create
custom loaded connectors utilizing standard pin lengths 4.25, 4.75, 5.15 and 6.25mm
Documents:
Drawing (PDF)
Product Specification PS-74031-999-001 (PDF)
General
Product Family
Series
Application
Application Tooling Documents
Comments
Component Type
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Data Rate
Packaging Specification PK-74058-003 (PDF)
RoHS Certificate of Compliance (PDF)

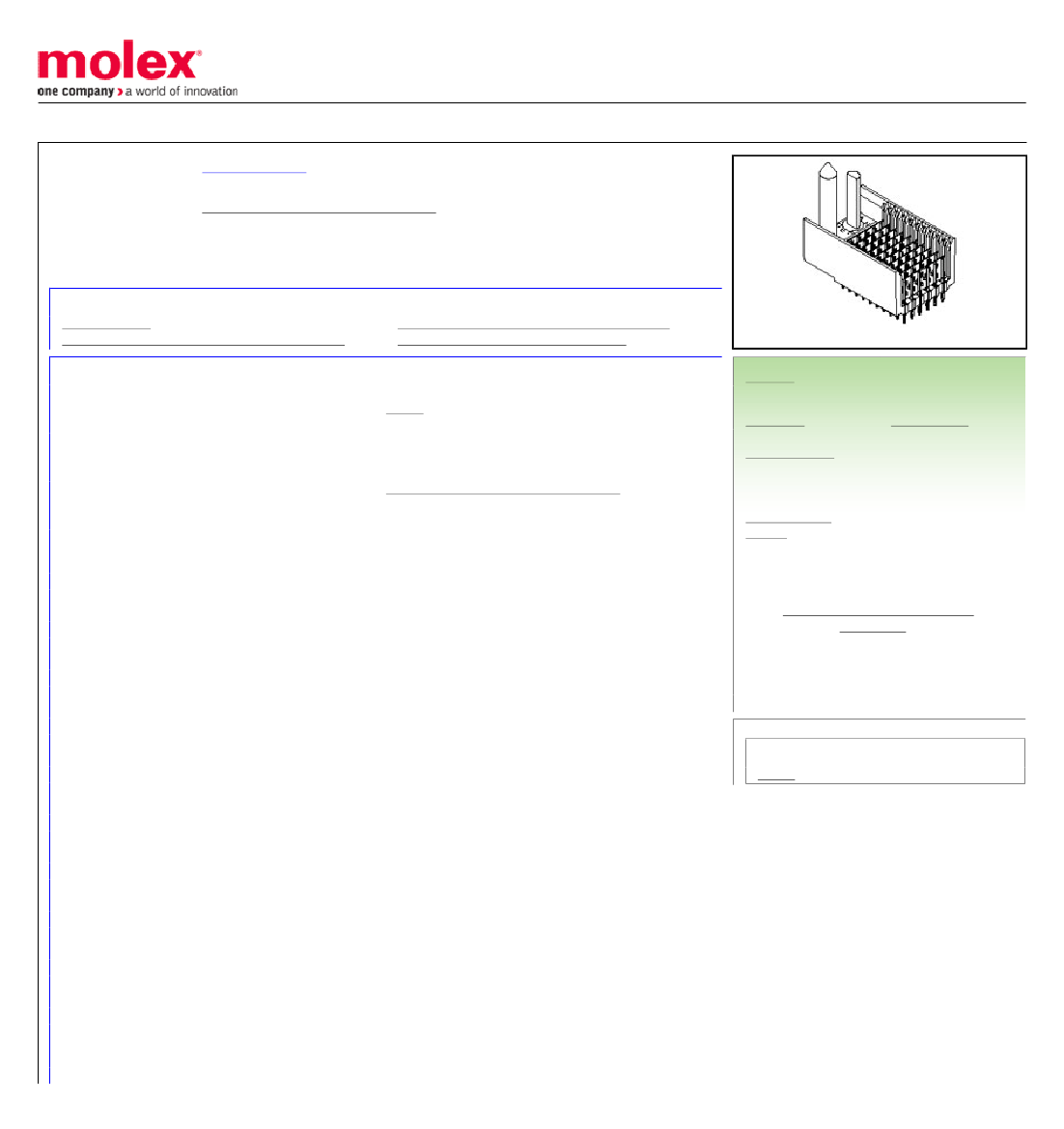

Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Backplane Connectors
76762
Backplane
TM-622010999
Keying Orientation F
PCB Header
VHDM H-Series Backplane Connectors
VHDM H-Series
884982398184
150
150
Black
200
No
Yes
None
Copper Alloy
Gold
Matte Tin
High Temperature Thermoplastic
16.513/g
25
Open Pin Field
6
Vertical
1.83mm
No
None
1.83mm
Tube
2.00mm
1.00mm
0.762µm
0.762µm
Yes
Yes
-55°C to +85°C
Through Hole - Compliant Pin
2.0A
6.25 Gbps
Search Parts in this Series
76762 Series
