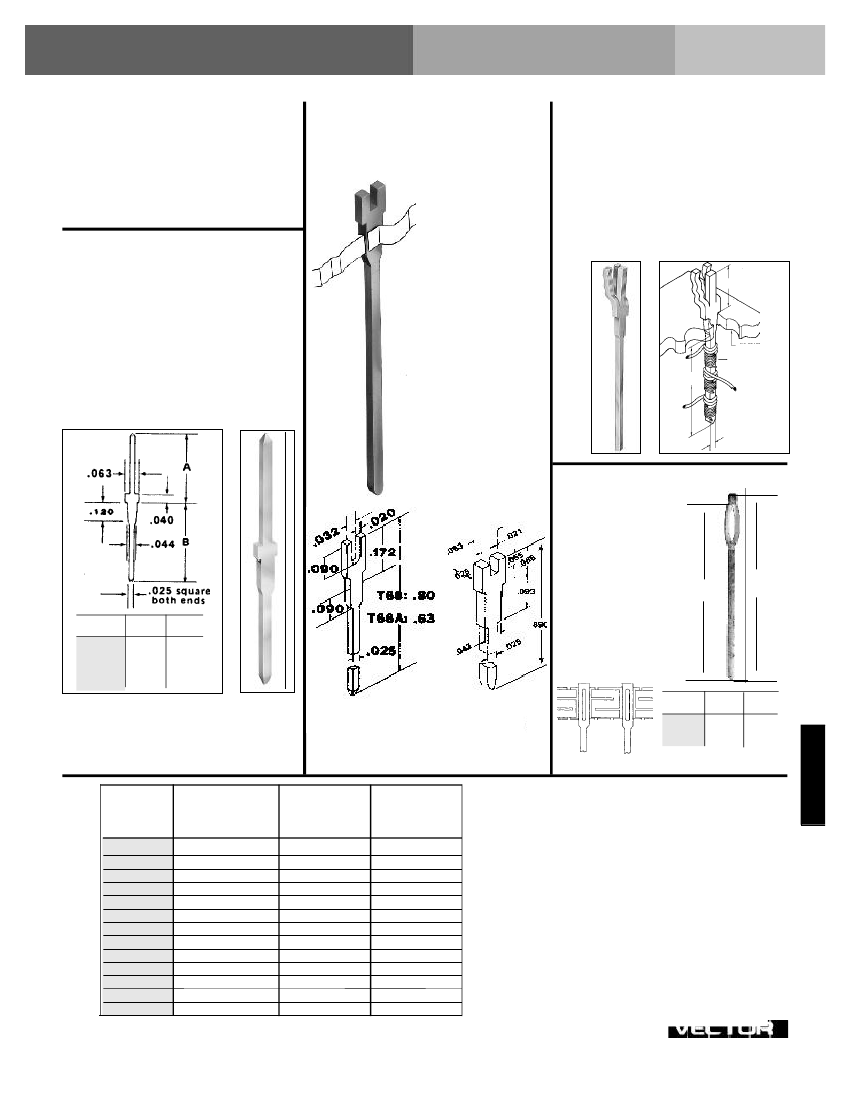

PCB
ACCESSORIES
Wire-Wrap Terminals
for .042" Holes
Vector Wiring Terminals
are useful for breadboarding or prototyping
using Vectorbord
®
plugbords™ and acces-
sories. Individual stamped and/or machine
terminals are provided in convenient pack-
age quantities. Tools for insertion and stak-
ing are also available.
Terminals:
T44, T68
Bifurcated
Miniwrap Terminals
for .042" diameter holes
• Wire -wrap tail with
two-pronged
receptacle for
wires or leads
• .025" square
posts
• Rectangular
terminal with
stepped shank
presses securely
into plated or
unplated holes,
requires no
staking or soldering
• Bifurcated end
holds soldered
leads securely
• T44: maximum
.021" diameter
leads or 24 gage
wires
• T68: maximum
.032 diameter leads
or 20 gage wires
T49
-
Trifurcated Klipwrap Terminals
for .042" diameter holes
•
•
•
•
Wire-wrap tail with three-pronged
receptacle for wires or leads
.025" square posts
Wires or leads are crimped into receptacle
on component side, secured for soldering
Holds .018"-.025" diameter leads or 22
gage wires in lower slot, .032"-.040"
diameter leads or 17 gauge wires in upper
slot
.200"
T46 - Press-In Terminals
for .042" diameter holes
•
•
•
•
Single and double-tailed (accessible from
both sides) wire-wrap terminals
.025" square posts
Provides secure contact without soldering
or staking
Rectangular base with stepped shank
presses into plain or plated-thru holes and
is retained without etching or soldering
Pointed ends slide neatly into all wrapping
bits
.
062" board
.
530"
Up to 3
wraps
•
.025"
square
T125, T126 - Wire-Wrap
Ð
Terminals
Ð
for .042" diameter holes
• Pressfit wire-wrap
terminals, ideal for
connecting voltage
and ground holes in
Vectorbord plus™ and
Pads & Planes™
patterns
• 2-level terminals:
Part No. T125
• 3-level terminals:
Part No. T126
A
B
Part No.
T46-2-9
T46-3-9
T46-4-9
T46-5-9
A
.36"
.46"
.04"
.28"
B
.42"
.60"
.42"
.60"
Use P133A insertion tool, see page 108
T68
T68A
Insertion Tool: A13-1
T44
Insertion Tool: A13
Layer 2
Layer 3
Part No.
T125/C
T126/C
A
.560"
.700"
B
.529"
.669"
See table below
Packages of 100 each.
Terminal:
Tin Plate
Part No.
T44/M
T46-2-9/M
T46-3-9/C
T46-3-9/M
T46-4-9/C
T46-4-9/M
T46-5-9/C
T46-5-9/M
T49/C
T49/M
T68/C
T68/M
T68A/M
Terminal:
Gold Plate:
Part No.
T44-1/M
-
T46-3A9/M
-
T46-4A9/M
-
T49A/C
T49A/M
-
T68-1/M
-
Package
Quantity
1000
1000
100
1000
100
1000
100
1000
100
1000
100
1000
1000
Hand
Insertion
Tool
A13
P133A
P133A
P133A
P133A
P133A
P133A
P133A
P156
P156
A13-1
A13-1
A13-1
11115 Vanowen ST., N.Hollywood, CA 91605 Phone(818)985-8208 Fax(818)985-7708
Toll-Free (800) 423-5659
E L E C T R O N I C
Web site: http://www.vectorelect.com
COMPANY
Ð
Ð
Products
Pins and Terminals
PCB
ACCESSORIES

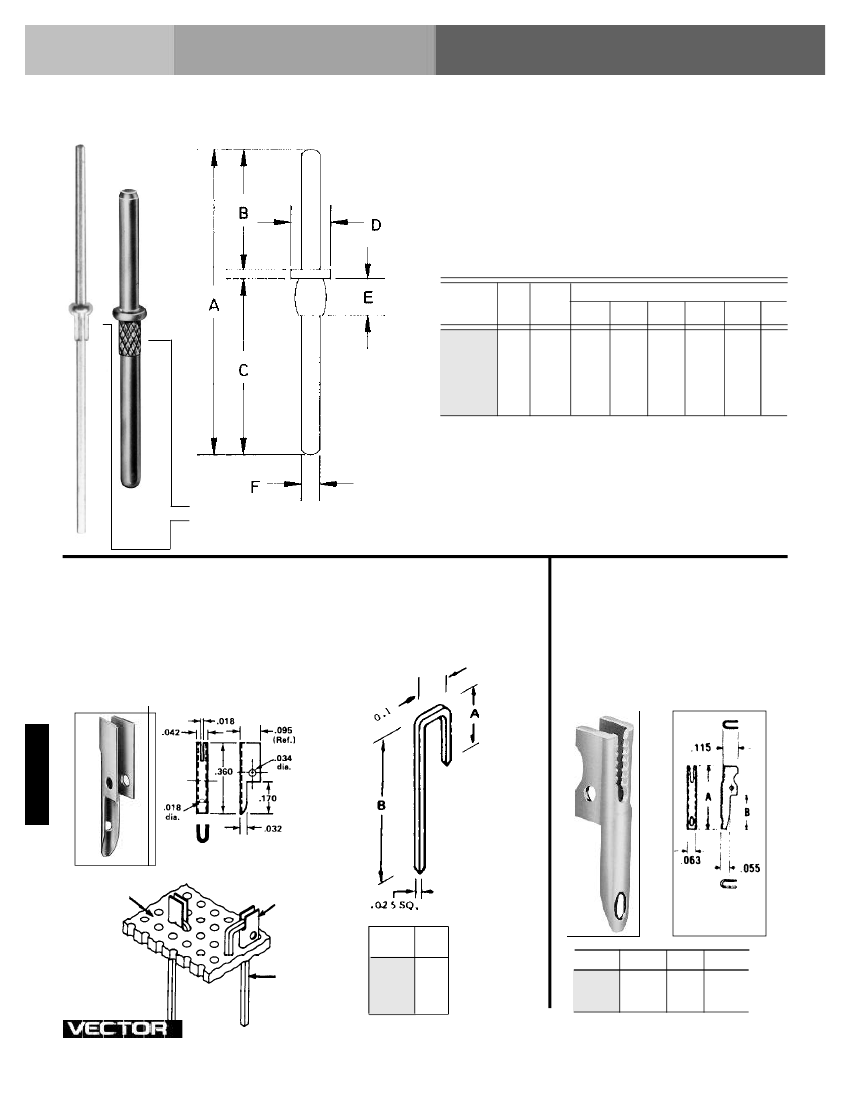

Inbord Pins
K36
For .042" diameter holes
K24
• Press-in pins provide excellent solder points
• Installation tools available separately, see
page 107
• Available in several sizes
Part No.
Ð
Pkg
Qty
1000
1000
1000
1000
1000
1000
Hole
Size
.042"
.042"
.042"
.042"
.042"
.025"
A
.650"
.650"
.375"
.550"
.375"
.705"
B
.255"
.255"
.160"
.225"
.160"
.293"
Dimensions
C
D
.375"
.375"
.195"
.305"
.195"
.400"
.073"
.073"
.075"
.085"
.075"
.040"
E
.080"
.080"
.080"
.060"
.060"
.050"
F
.039"
.039"
.040"
.040"
.040"
.023"
Ð
K24A/M*
K24C/M*
K26C/M
K30C/M
K31C/M
K36C/M
*Use in G-10 epoxy glass board only as knurled shoulder may split
CEM-1 composite material
Plating Note:
Tin plated, Gold plating available on K24 & K31 styles.
Add "A" suffix to numeric portion of part number.
Diamond knurl
Swage
T42 - 1 Push-In Terminals
for .042" diameter holes
•
Wiring terminals for mounting leads or
wires horizontally or vertically (through
board hole)
Connectors require no staking for most
applications
Horizontal slot holds up to seven wires,
depending upon thickness of wire
K32 J-Pin Terminals
for .042" diameter holes
•
•
•
•
Wire-wrap terminal installs in two .042"
diameter holes on 0.1" centers
Short leg can be bent to secure pin
Long post can share hole with T42-1
Micro-Klip
T28 Push-In Terminals
for .062" diameter holes
Wiring terminals for mounting leads or
wires horizontally or vertically (through
board holes)
Vertical (longitudinal) slot holes .025"
diameter leads or .22 gauge wires
Includes .018" diameter tab hole which
accepts transistor wires, can be used to
hold an anchoring wire
•
•
•
•
General Proto
Products
K32=.250"
K32-2=.170"
.650"
"P" Pattern
Vectorbord
®
T42-1
Micro-Klip
Insertion
Tool
P149A
J Pin
Part No.
K32/C
K32/M
K32-2/M
T42-1/C
T42-1/M
Qty
100
1000
1000
100
1000
Part No. Pkg Qty
T28/C
T28/M
A
.437"
.437"
B
.237"
.237"
100
1000
Specifications subject to change without notice.
ELECTRONIC
COMPANY
PCB
ACCESSORIES
Pins and Terminals

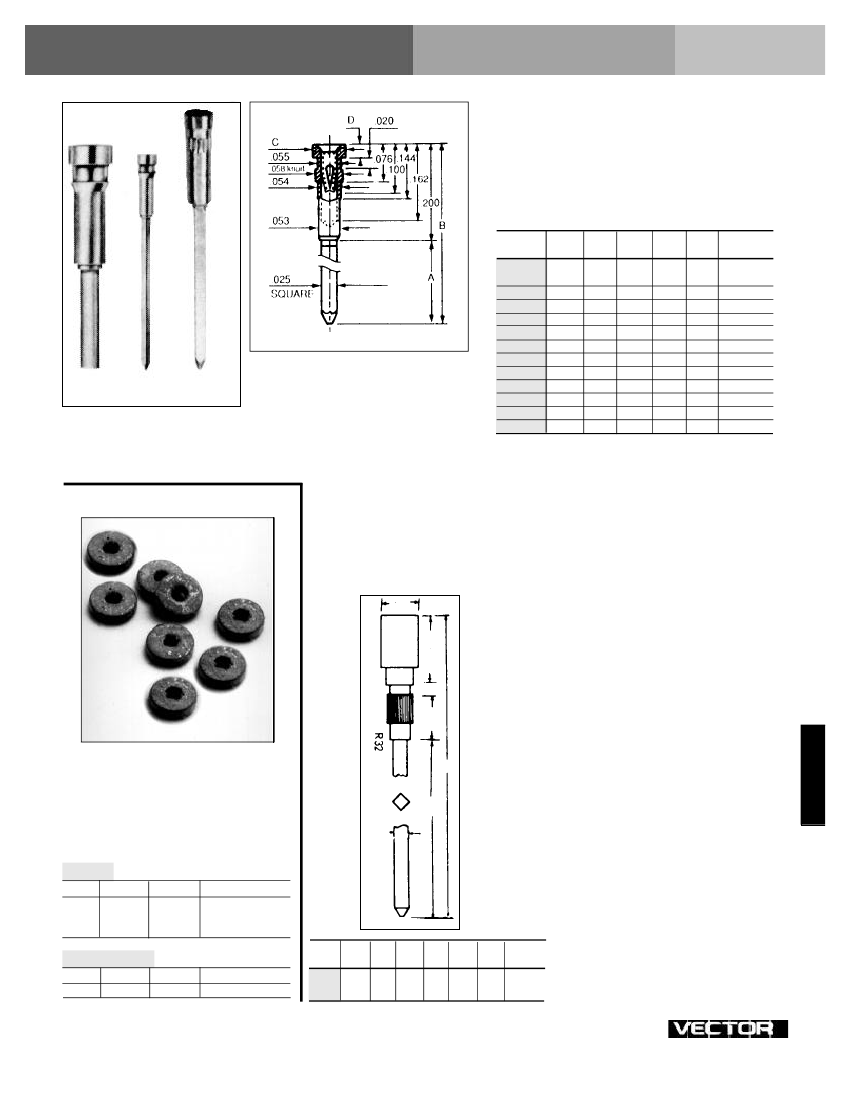

Socket pins For .055" Diameter
Holes
R30, R31, R50, R51, R52, R53
Part No. P k g
Qty
R30/C
R30/M
R31/C
R31/M
R50/C
R50/M
R51C
R51M
R52C
R52M
R53C
R53M
A
B
C
D
Male Pin
Depth
R30
R31
R50
100
1000
100
1000
100
1000
100
1000
100
1000
100
1000
.110"
.110"
.500"
.500"
.360"
.560"
.360"
.360"
.500"
.500"
.500"
.500"
.286" .072" .030"
.286" .072" .030"
.703" .072" .030"
.703" .072" .030"
.560" .062"
-
.360" .062"
-
.560" .062"
-
.560" .062"
-
.700" .062"
-
.700" .062"
-
.700" .062"
-
.700" .062"
-
.15"
.15"
.17"
.17"
-
-
-
-
-
-
-
-
R30
T124- Solder Washers
R32 - Socket Pins
for
.042 diameter holes
•
•
•
Low profile wire-wrap socket pins
Pressfit mounting
Four-finger contacts, tapered sockets for
easy insertion
•
•
Low profile, pressfit pins, for hand or dip
solder applications
Solder post is 0.110" long, extends 0.19"
below and 0.030" above board surface
R31
•
•
Low profile wire-wrap
Four-finger contacts, tapered socket for
easy insertion
C
R50
D
•
•
•
Two-level wire-wrap pins, .025" square
posts
Four-finger contacts, tapered socket for
easy insertion
Gold-plated contact surfaces
E
R51
•
Multi-functional solder washer kits, with three
sizes of washers. Different sizes provided to fit
over sockets and tails of most Vector socket
pins and wiring terminals. Ideal tools for
committing pins to voltage and ground planes in
Vectorbord patterns, such as Voltage/Ground
Plane and Vectorbord plus ™, that have
clearance area isolating holes from planes.
A
•
•
B
Two-level wire-wrap pins, .025" square
posts
Six-finger contacts, low insertion force
sockets
Gold-plated contact surfaces
Products
.
025"
Square
R52
•
•
Three-level wire-wrap pins, .025" square
posts
Four-finger contacts, tapered sockets for
easy insertion
Gold-plated contact surfaces
T124/M
QTY
500
500
100
ID
..
.078"
.058"
.040"
O.D.
.110"
.103"
.106"
Application
Vcc side
GND side
Connector
Part #
Qty
A
B
C
D
E
Male Pin
Depth
•
R53
•
•
R32/C
R32/M
100 .745" .500" .072" .155" .075" .13"
1000 .745" .500" .072" .155" .075" .13"
T124-040/500
QTY
500
I.D.
.040"
O.D.
.106"
Application
Connector
•
Three-level wire-wrap pins, .025" square
posts
Six-finger contacts, low insertion force
sockets
Gold-plated contact surfaces
11115 Vanowen ST., N.Hollywood, CA 91605 Phone(818)985-8208 Fax(818)985-7708
Toll-Free (800) 423-5659
E L E C T R O N I C
Web site: http://www.vectorelect.com
COMPANY
