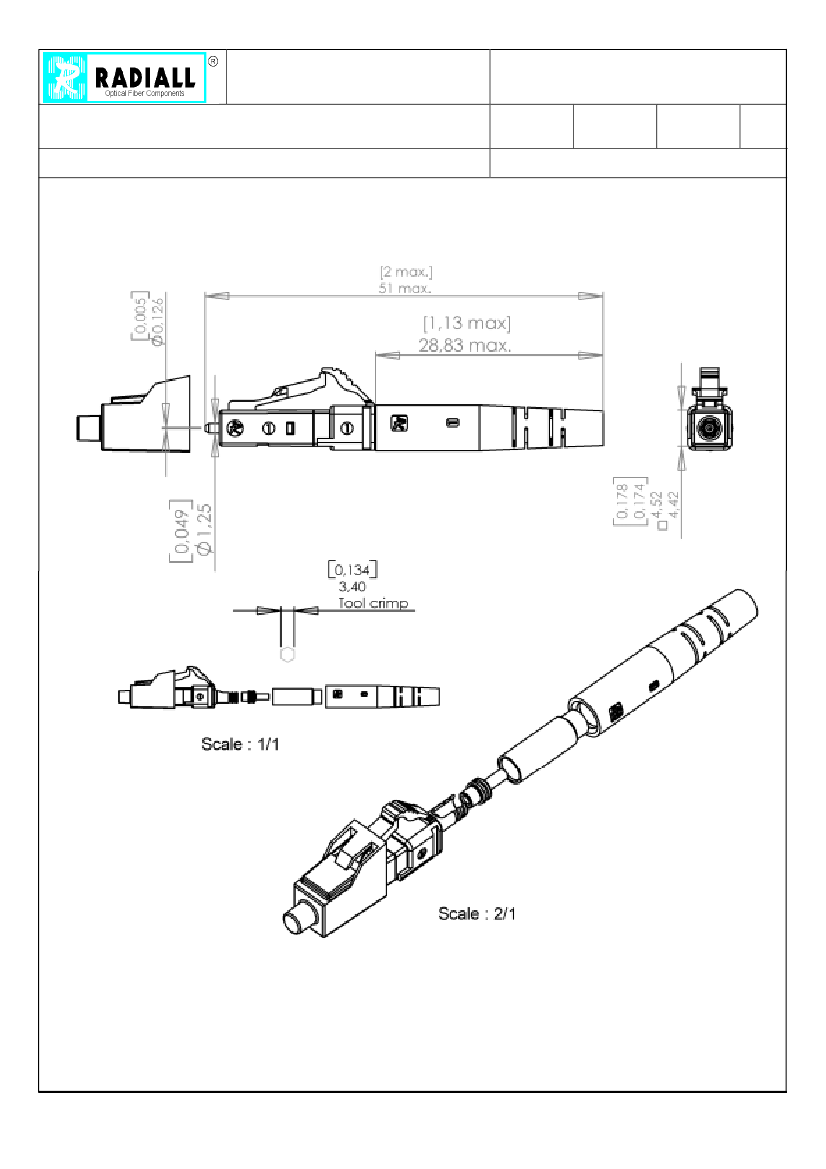

TECHNICAL DATA SHEET
LC SIMPLEX APC SINGLEMODE OPTICAL PLUG
FOR Ø2.4 MM CABLE
Outer plug body : color GREEN
F727.152.600
Packaging
100
Series
LC
Monobloc
Issue
30 JAN 06
Page
1/2
.
pn
.
ao
Original dimensions in mm [inch]
4112-9212 This information is given as an indication. In the continual goal to improve our products, we reserve the right to make any modifications judged necessary
TECHNICAL DATA SHEET
LC SIMPLEX APC SINGLEMODE OPTICAL PLUG
FOR Ø2.4 MM CABLE
Outer plug body : color GREEN
F727.152.600
Packaging
100
Series
LC
Monobloc
Issue
30 JAN 06
Page
2/2
G
ENERAL
!
TYPE
IEC 61754-20 (LC )
Singlemode Zirconia ferrule
RJ –45 latching connector system
126 µm
9/125µm singlemode
∅2,4
mm Simplex
Refer to503.08.500 assembly instruction manual
!
!
!
!
FERRULE SIZE
FIBER SIZE
CABLE SIZE & TYPE
CABLING PROCEDURE
C
HARACTERISTICS
(Depending on fibre or cable construction)
!
OPTICAL
Attenuation at 1300 nm and 1550 nm
Attenuation plug mated with reference plug :
P
ARAMETER
Mean
Standard deviation
STD
IEC 61300-3-4
Method B
≤0.15
dB
≤0.10
dB
IEC 61300-3-34
STD
≤0.15
dB
≤
0.07 dB
Attenuation of random mated connectors :
P
ARAMETER
Mean
Standard deviation
Return-Loss
Maximum loss variation :
R
L
APC
> 60
IEC 61300-3-6
!
MECHANICAL
Vibration
test
Impact test
Mechanical Endurance
Cable retention
10 to 55 Hz , 1,5 mm (peak to peak) , 2 Hr/axis
1,5 m drop , 8 cycles
200 matings
68 N
-40 °C to +85 °C
-40 °C to +70 °C
-40°C to +75°C , 21 Cycles , 168
95% RH , -10°C to + 65°C , 14 cycles , 168 Hr
!
ENVIRONMENTAL
Storage temperature range
Operating temperature range
Thermal cycle test
Humidity/Condensation cycling test
(Performance and specification : see document
GEN – F727 001)
