76145-1118: DescriptionHigh Speed / Modular Connectors Impact BP 6x10 LW Sn Impact BP 6x10 LW Sn; CategoryThe connector The connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76145-1118 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76145-1118	-	-	View	Buy Now

76145-1118 Overview

High Speed / Modular Connectors Impact BP 6x10 LW Sn Impact BP 6x10 LW Sn

76145-1118 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN AND ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IMPACT
subject depth	0.47 inch
body length	1.138 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3336 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	76145
Plug contact pitch	0.075 inch
Match contact row spacing	0.053 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	18
Number of rows loaded	18
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.9 mm
Termination type	PRESS FIT
Total number of contacts	180
UL Flammability Code	94V-0

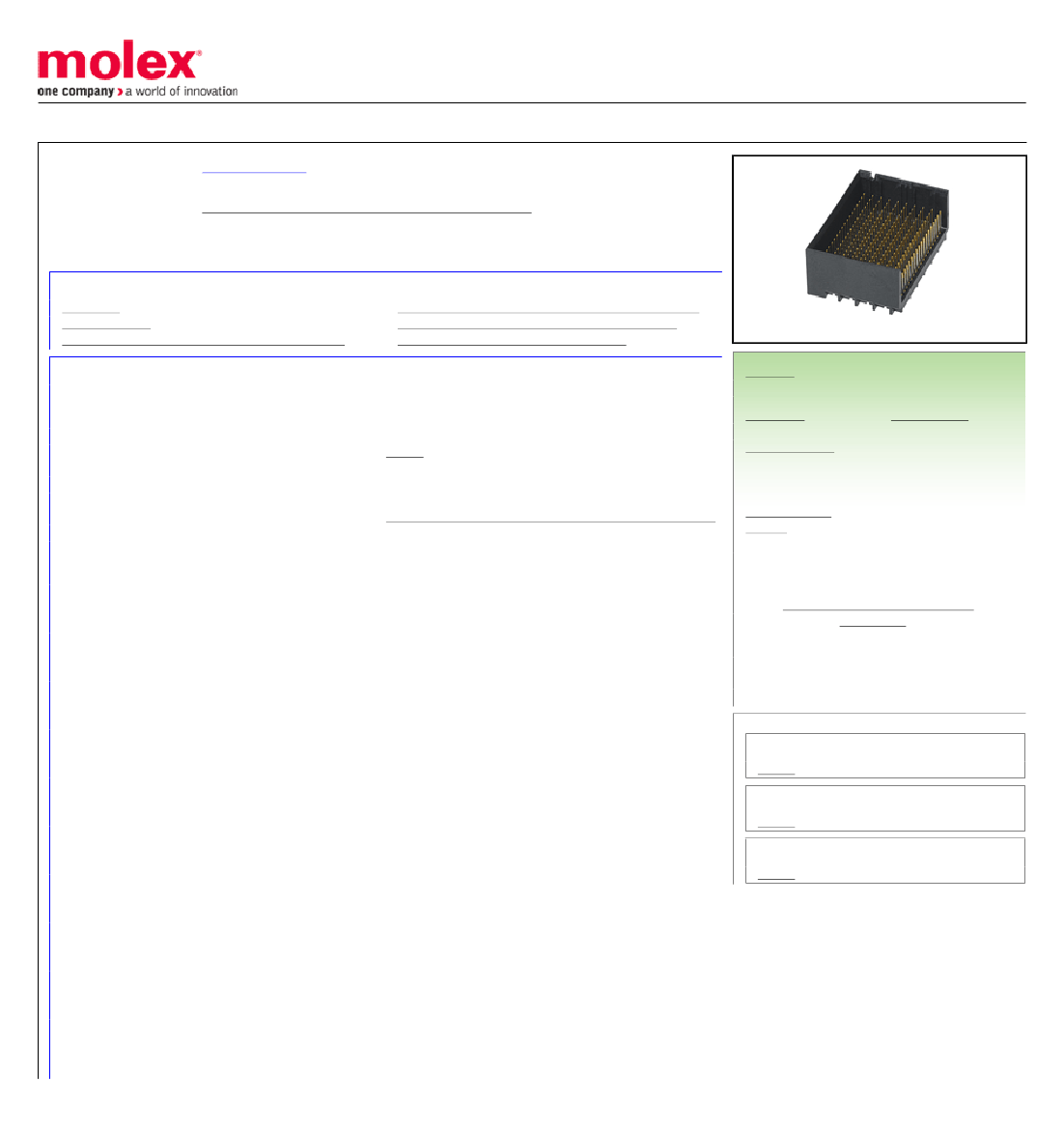

Preview

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0761451118

Active

Impact™ Backplane Connectors and Cable Assemblies

Impact 100 Ohm 6 Pair Vertical Backplane Header, Unguided, Left Endwall, 10

Columns, 180 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.39mm,

Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-76060-999-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Application Specification AS-76060-990-001 (PDF)

Packaging Specification PK-70873-7703 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

E29179

Backplane Connectors

76145

Conventional

TM-622018799

PCB Header

Impact™ Backplane Connectors and Cable Assemblies

Impact

883906407698

180

Black

200

94V-0

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

3.992/g

Vertical

1.40mm

None

1.00mm

Tray

1.90mm

0.762µm

-55°C to +85°C

Through Hole - Compliant Pin

Search Parts in this Series

76145 Series

Mates With

76150 Impact 100 Ohm Daughtercard

Use With

75234 Backplane Free Standing Guide Pin

Recommended Resources
