AT06-12SB-EC01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AT06-12SB-EC01

AT06-12SB-EC01: DescriptionAutomotive Connectors 12P PLUG W/ END CAP KEY POSITION B; CategoryThe connector The connector; File Size130KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

AT06-12SB-EC01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AT06-12SB-EC01	-	-	View	Buy Now

AT06-12SB-EC01 Overview

Automotive Connectors 12P PLUG W/ END CAP KEY POSITION B

AT06-12SB-EC01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks 1 day
body width	0.815 inch
subject depth	1.291 inch
body length	1.791 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE
Contact style	RND PIN-SKT
empty shell	YES
Filter function	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	13 A
Shell material	THERMOPLASTIC
Total number of contacts	12

Preview

Download Datasheet

View All

REVISIONS

REV

ECO

DESCRIPTION

RELEASE NEW DWG FORMAT

DATE

03/JAN/14

ORION

APPR

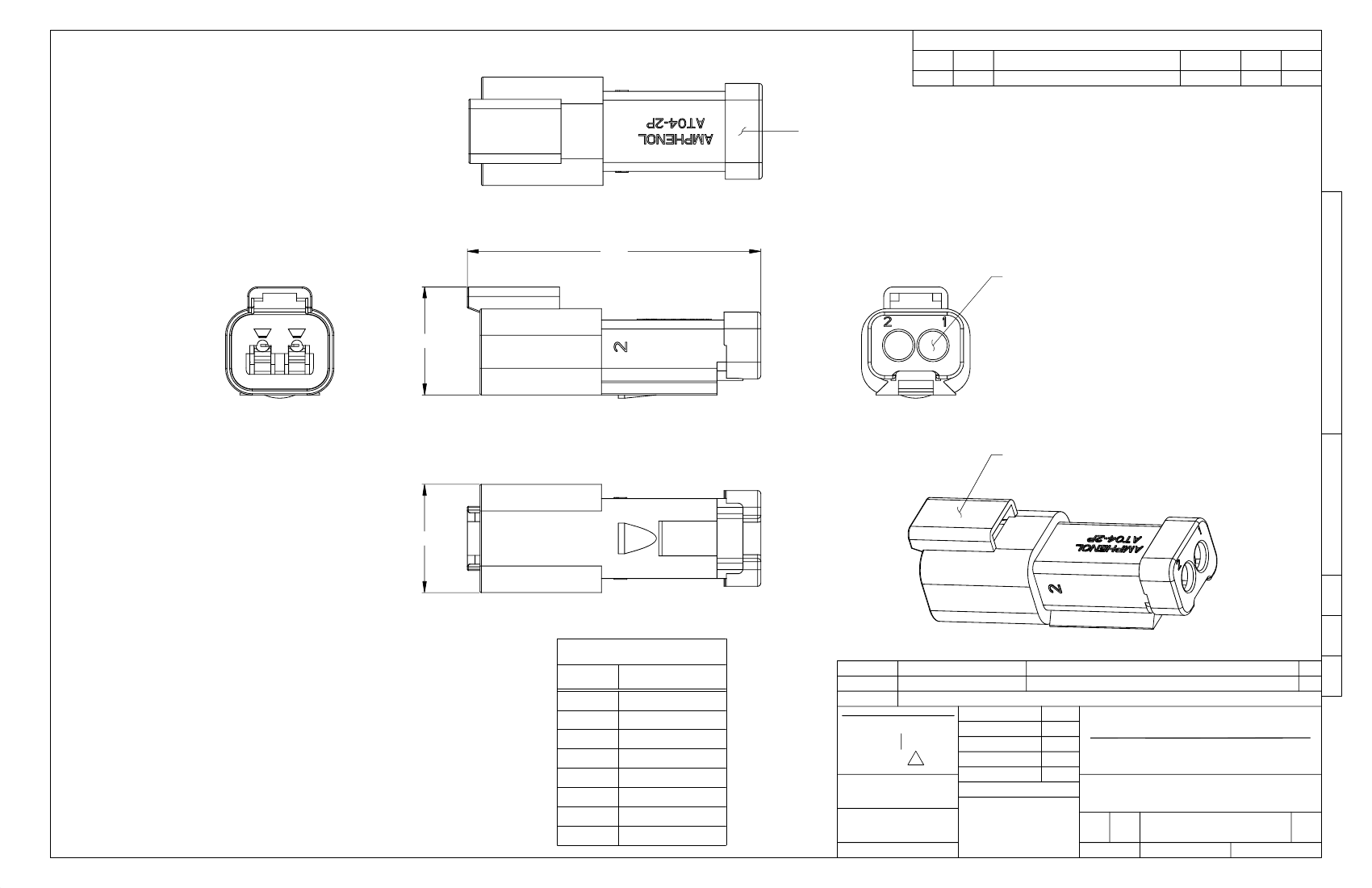

END CAP

TITLE:

RECEPTACLE, 2 PIN, AT SERIES, SOLID REAR SEAL, END CAP

46.2

SOLID REAR SEAL

DWG NO:

STANDARD MOLDED COLOR IS GREY.

ADDITIONAL COLORS SHOWN IN PART NUMBER

CHART ARE AVAILABLE VIA SPECIAL ORDER.

AT04-2P-SS01XXX

NOTES: UNLESS OTHERWISE SPECIFIED

1. MATERIAL:

HOUSING: THERMOPLASTIC

SEAL: SILICONE RUBBER

2. MODIFICATIONS: SOLID REAR SEAL; END CAP

3. SPECIFICATIONS:

3.1 CURRENT RATING: 13 AMPS

3.2 OPERATING TEMPERATURE: -55°C TO +125°C

3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2

MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.

3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.

3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )

3.6 MATING CYCLE DURABILITY: 100 CYCLES

3.7 RoHS COMPLIANT

4. MATING PART: AT06-2S* PLUG

( * = MODIFICATIONS AND COLORS )

5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.

17.1

REV:

SH:

PART NUMBER CHART

OF:

COLOR

GREY

BLACK

BLUE

BROWN

GREEN

RED

WHITE

YELLOW

PART NUMBER

AT04-2P-SS01

AT04-2P-SS01BLK

AT04-2P-SS01BLU

AT04-2P-SS01BRN

AT04-2P-SS01GRN

AT04-2P-SS01RED

AT04-2P-SS01WHT

AT04-2P-SS01YEL

SEE PART NUMBER CHART

DESCRIPTION

PART NUMBER

QUANTITY

MATERIALS LIST

UNLESS OTHERWISE SPECIFIED

1) All dimensions are in metric(mm).

2) Tolerances are as follows:

1 PL DEC ±0.30

Fractions ±1/64

2 PL DEC ±0.15

Angles ±1°

3 PL DEC ±0.08

3) Note reference =

ITEM

SIGNATURES

DRAWN:

CHECKED:

ENGINEER:

APPROVAL:

DATE

ORION.LI

03/JAN/14

Amphenol

Sine Systems - www.amphenol-sine.com

44724 Morley Drive

Clinton Township, MI 48036

MATERIAL SPECIFICATIONS:

CUSTOMER:

PROCESS SPECIFICATIONS:

NEXT ASS'Y:

THIS DRAWING IS SUPPLIED FOR

INFORMATION ONLY. DESIGN FEATURES,

SPECIFICATIONS AND PERFORMANCE DATA SIZE

SHOWN HEREON ARE THE PROPERTY OF

THE AMPHENOL CORPORATION. NO RIGHTS

OF REPRODUCTION ARE IMPLIED. ALL

DIMENSIONS ARE SUBJECT TO NORMAL

SCALE:

MANUFACTURING VARIATIONS.

RECEPTACLE, 2 PIN, AT SERIES,

SOLID REAR SEAL, END CAP

TYPE

DWG NO:

REVISION

B C-

NONE

AT04-2P-SS01XXX

SHEET
