High-Current Connector
CONNECTOR
MB-0283-1
August 2014
DW05 Series
DW05S01CCZZ1 (Housing)
DW05S01CAG1
(Socket Contact)
DW05P01CZZ1 (Housing)
DW05P01CAG1
(Pin Contact）
RoHS Compliant
DW05P01CZZ2 (Housing)
DW05P01CAG1
(Pin Contact）

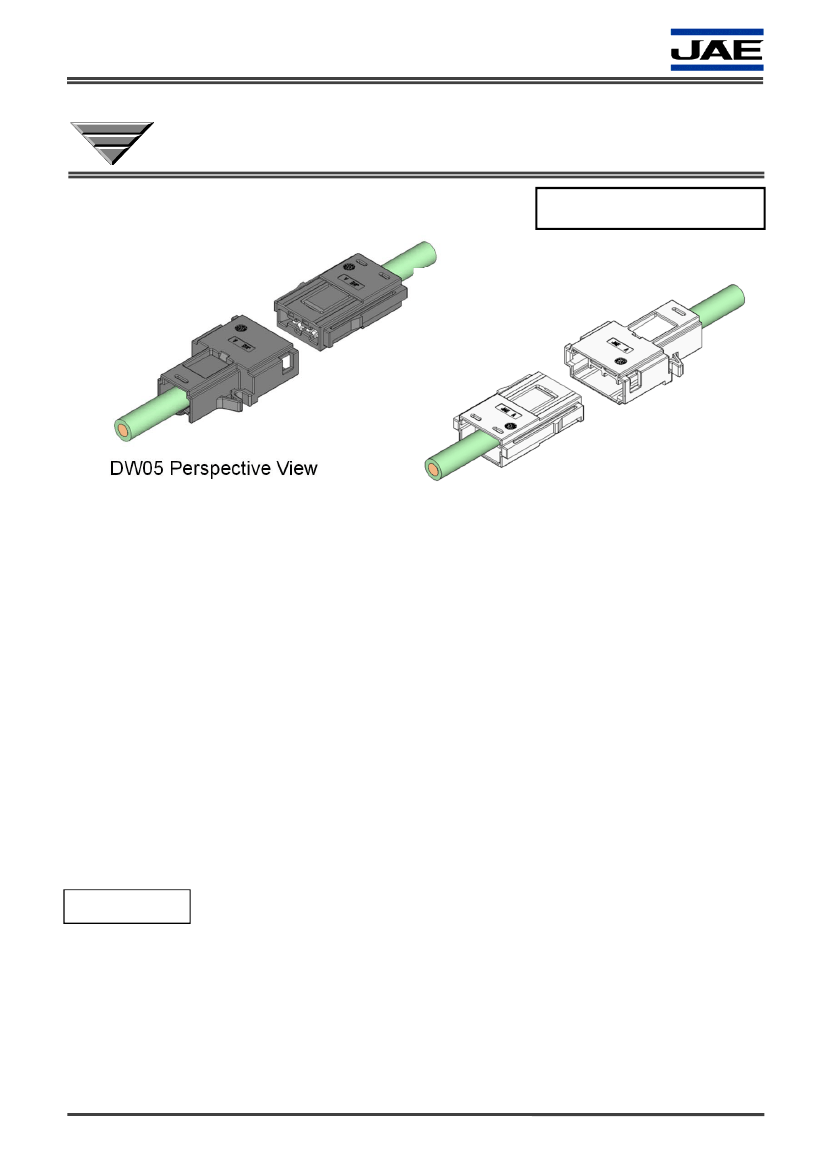

DW05 Perspective View
《Summary》
DW05S01CCZZ2 (Housing)
DW05S01CAG1
(Socket Contact)
Along with the spread of energy management systems in recent years, the introduction of
storage battery system using lithium-ion is becoming widespread.
As for the systems like storage battery one using high current, the importance is attached to
the safety at the time of assembly work and maintenance. So there are a lot of demands for
connection methods that can prevent incorrect wiring and short circuit accidents.
JAE has now developed the 150A-class high-current connector “DW05 Series” which can
realize a safe connection in the situation using such high current.
The contacts of the DW05 Series cannot be touched easily, and from the difference in the
mating shape, the connection between the opposite polarities cannot be made. So it is
possible to prevent short circuit accidents between the opposite polarities and realize a high
level of safety.
Also, it contributes to shorten work time for customers by simplifying connection work with
an easy operation lock structure equipped between the connectors, which can provide
adequate strength as well as screw fixing.
The DW05 Series features a multi-contact structure compatible with high-current connection
and also has superior connection stability.
Features
■
Improved Workability: With mis-mating prevention key to avoid wrong wiring and short-
circuit during assembly.
■
High Safety: With structure to prevent finger tips from touching the terminal to avoid
electrical shock.
Mis-connection of positive and negative polarity terminals prevented by using 2 different
colors for insulator (ivory and black), and a different mating shape for each.
■
Termination: Crimp termination considering on-site assembly.
Conductor cross-section of standard cable is 38 mm
2
. (Cable of 26 to 42 mm
2
in the same
shape is possible to be used)
JAE PMK Div. Proprietary. Copyright © 2014, Japan Aviation Electronics Industry, Ltd.
1/9
MB-0283-1
General Specifications
■
No. of Contacts: 1 pos.
■
Operating Temperature: -40 Deg. C to +85 Deg. C
■
Rated Current: 150A, DC150A (Temperature rise : 40 Deg. C max.)
■
Contact Resistance: 0.2m
Ω
max. (initial)
0.3m
Ω
max. (after various tests)

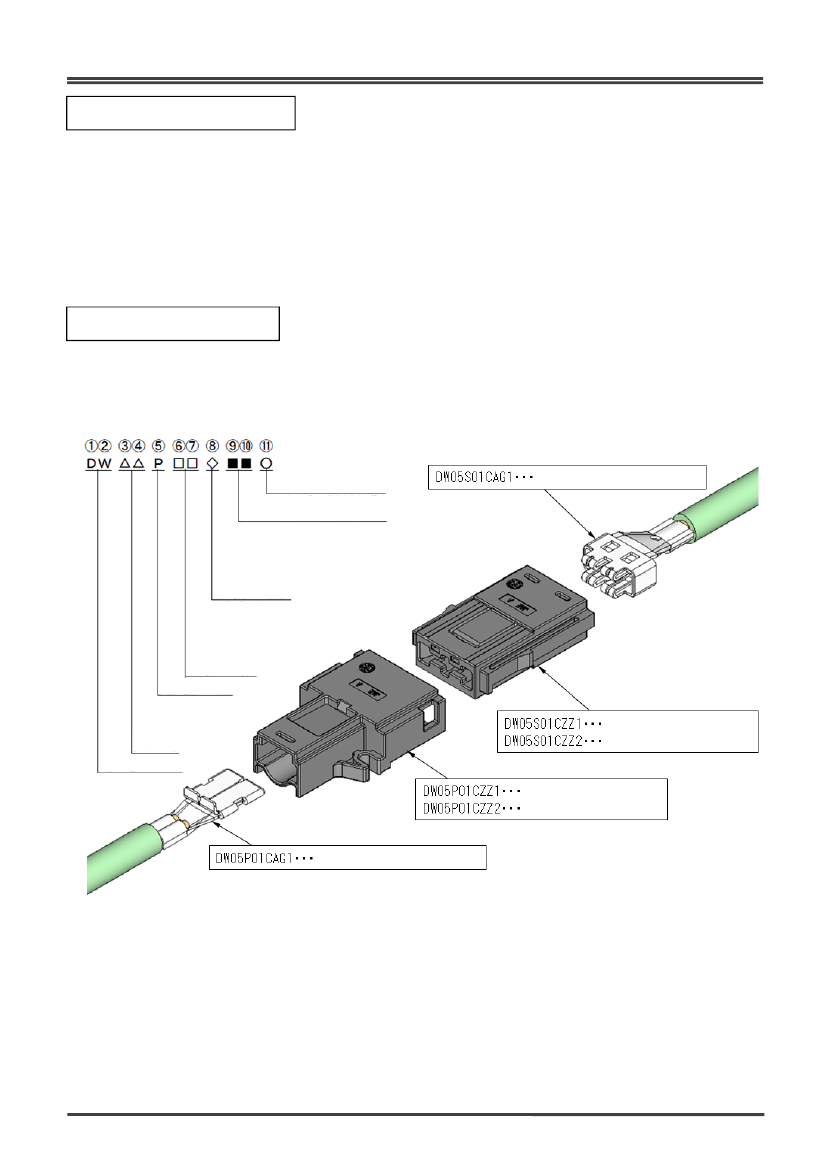

Ordering Information
Modification Code
1~9, A~Z *Excluding alphabetical characters I and O
Maximum Current C/T Plating of Connection Area
AG: Silver
AU: Gold
SN: Tin
NK: Nickel
CU: Copper
ZZ: Others
Maximum Current C/T Connections
B: Busbar
C: Cable
D: Device
P: PWB, PCB
S: Screw (Bolt)
Z: Others
Maximum Current C/T No. of Contacts
Socket Contact (Ag plating)
Maximum Current C/T Type
P: Pin
S: Socket
Z: Others
Development No.
(05~99)
Series
DW Series: DW
Socket Housing (Black)
Socket Housing (Ivory)

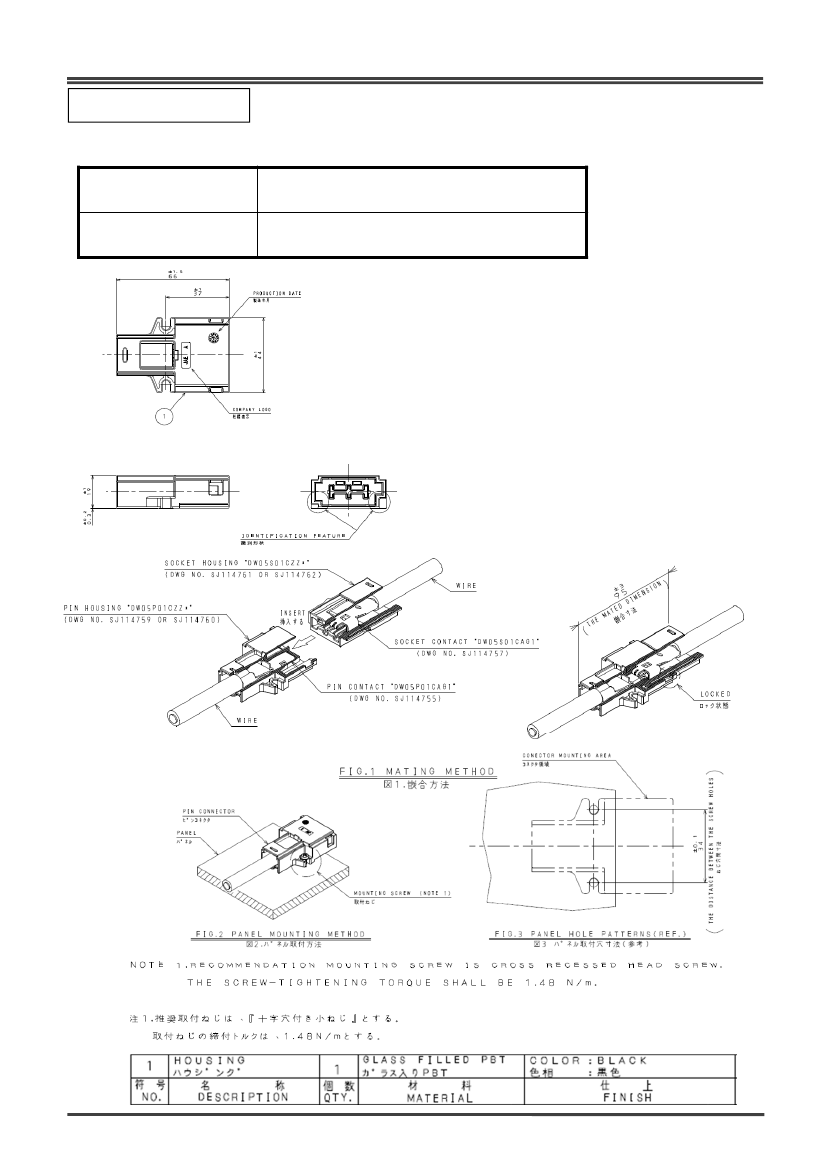

Pin Housing (Black)

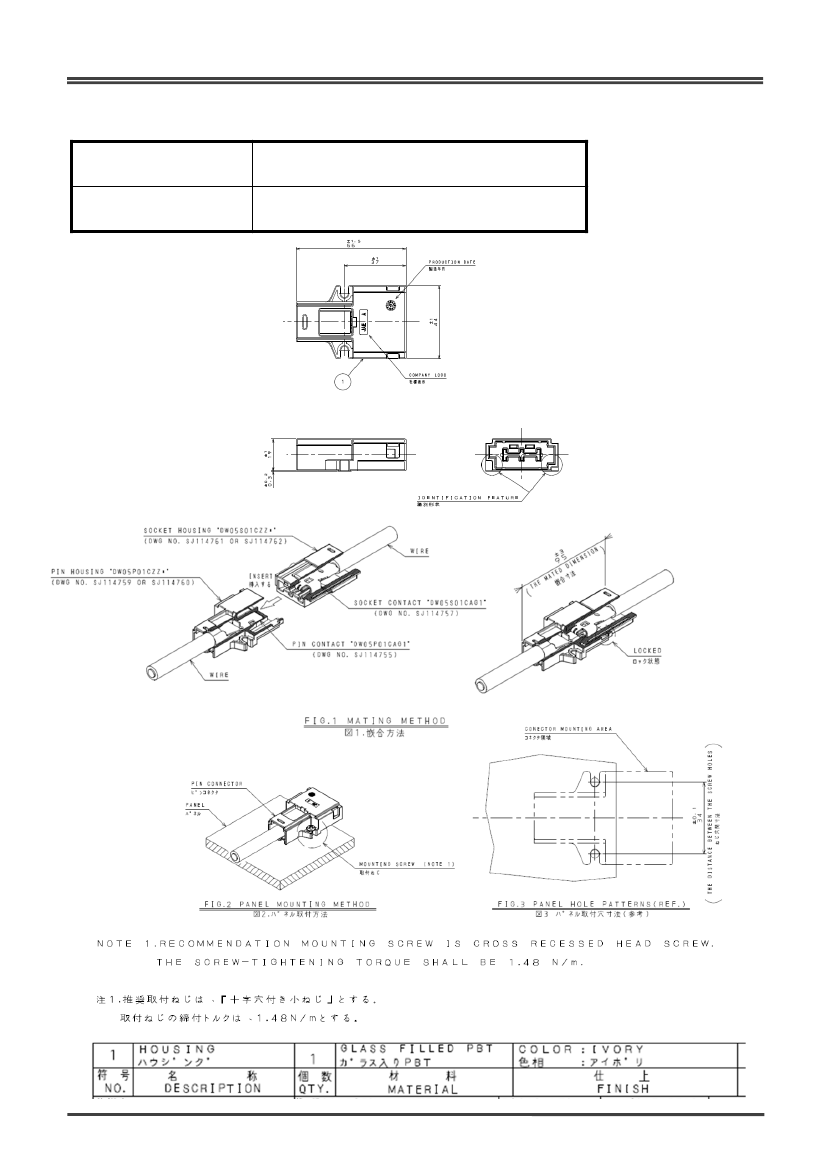

Pin Housing (Ivory)

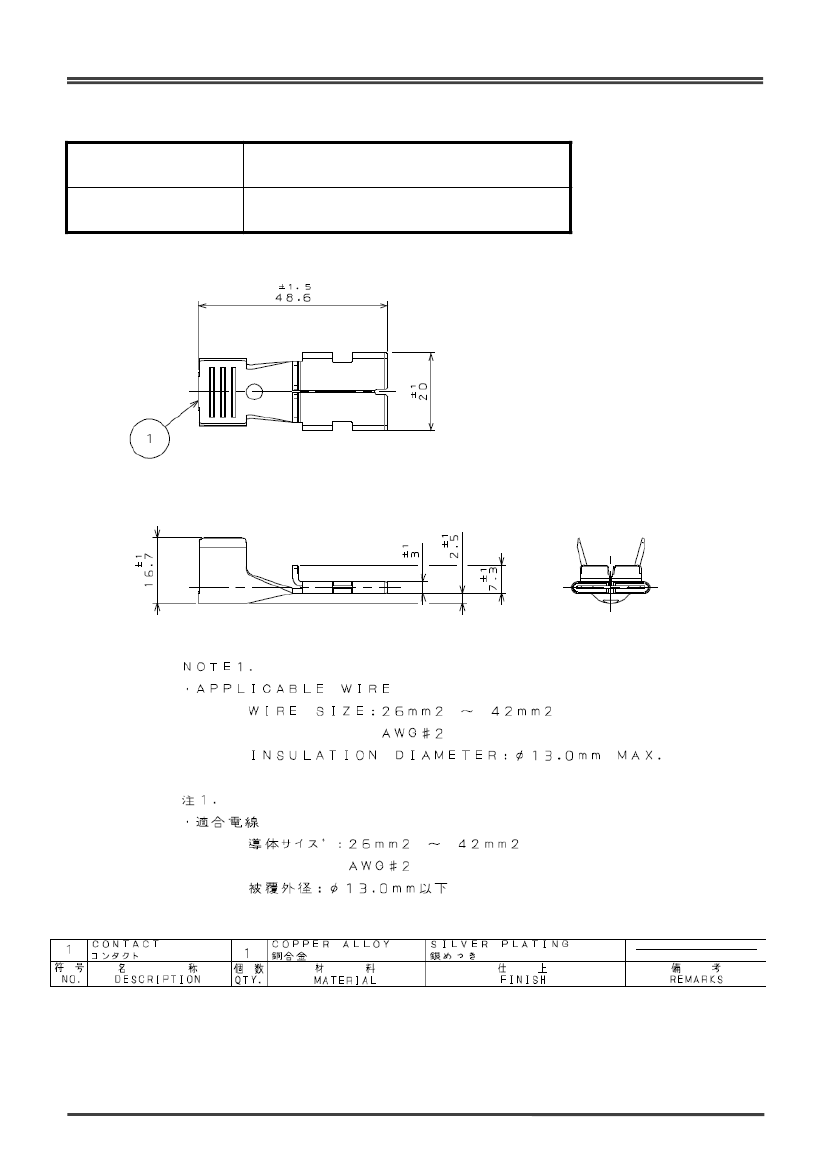

Pin Contact (Ag plating)
JAE PMK Div. Proprietary. Copyright © 2014, Japan Aviation Electronics Industry, Ltd.
2/9
