DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:

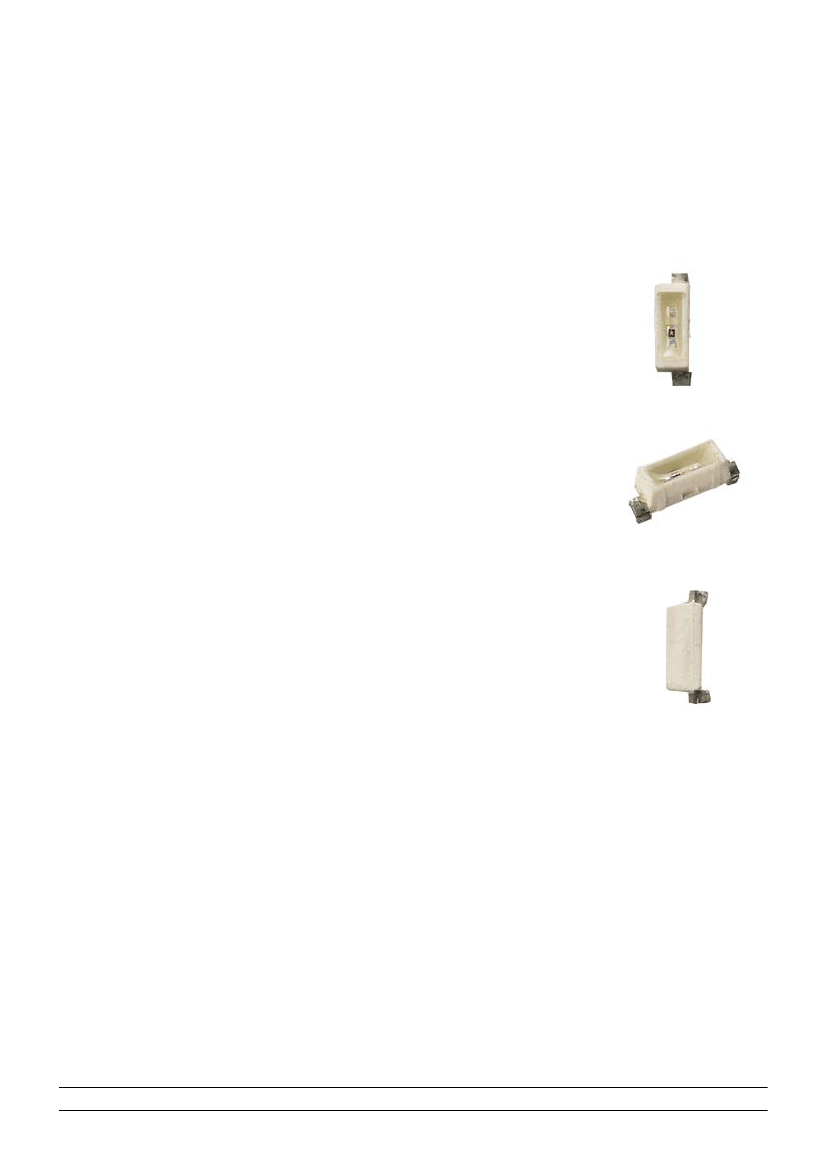

Right Angle DomiLED
TM
InGaN : DSx-xSx
DomiLED
TM
TM
Synonymous with function and performance, the
DomiLED
series is
perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
High brightness surface mount LED.
Designed for sideway illumination.
120° viewing angle.
Small package outline.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Applications:
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
© 2005 DomiLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
03/04/2006 V7.0
DOMINANT
TM
Semiconductors
Innovating Illumination
InGaN : DSx-xSx
Part Ordering
Number
DSB-SSS-PQ2-1
*
• DSB-SSS-P1
• DSB-SSS-P2
• DSB-SSS-Q1
• DSB-SSS-Q2
DSB-USS-QR2-1
• DSB-USS-Q1
• DSB-USS-Q2
• DSB-USS-R1
• DSB-USS-R2
DSB-USS-ST1-1
• DSB-USS-S1
• DSB-USS-S2
• DSB-USS-T1
DST-SSS-RS2-1
*
• DST-SSS-R1
• DST-SSS-R2
• DST-SSS-S1
• DST-SSS-S2
DST-SSS-TU1-1
*
• DST-SSS-T1
• DST-SSS-T2
• DST-SSS-U1
DST-USS-TU2-1
• DST-USS-T1
• DST-USS-T2
• DST-USS-U1
• DST-USS-U2
DST-USS-UV1-1
• DST-USS-U1
• DST-USS-U2
• DST-USS-V1
* Not for new design
Chip Technology
/ Color
InGaN
Blue, 470nm
Viewing
Angle˚
120
Luminous Intensity @
IF = 20mA IV (mcd)
45.0 - 112.5
45.0 - 56.0
56.0 - 71.5
71.5 - 90.0
90.0 - 112.5
71.5 - 180.0
71.5 - 90.0
90.0 - 112.5
112.5 - 140.0
140.0 - 180.0
180.0 - 355.0
180.0 - 224.0
224.0 - 285.0
285.0 - 355.0
InGaN
True Green, 525nm
120
112.5 - 285.0
112.5 - 140.0
140.0 - 180.0
180.0 - 224.0
224.0 - 285.0
285.0 - 560.0
285.0 - 355.0
355.0 - 450.0
450.0 - 560.0
285.0 - 715.0
285.0 - 355.0
355.0 - 450.0
450.0 - 560.0
560.0 - 715.0
450.0 - 900.0
450.0 - 560.0
560.0 - 715.0
715.0 - 900.0
NOTE
1. All part number above comes in a quantity of 2500 units per reel.
2. Other luminous intensity groups are also available upon request.
3. Luminous intensity is measured with an accuracy of ± 11%.
4. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
5. An optional Vf binning is also available upon request. Binning scheme is as per following table. Please contact marketing for special part
number
2
03/04/2006 V7.0
DOMINANT
TM
Semiconductors
Innovating Illumination
InGaN : DSx-xSx
Wavelength Grouping
Color
Group
Wavelength distribution (nm)
DSB;Blue
Full
W
X
Y
464 - 476
464 - 468
468 - 472
472 - 476
520 - 536
520 - 524
524 - 528
528 - 532
532 - 536
DST; True Green
Full
W
X
Y
Z
Dominant wavelength is measured with an accuracy of ± 1 nm.
3
03/04/2006 V7.0
DOMINANT
TM
Semiconductors
Innovating Illumination
InGaN : DSx-xSx
Electrical Characteristics at Ta=25˚C
Vf @ If = 20mA
Part Number
DSB
Vr @ Ir = 10uA
Max. (V)
3.8
Typ. (V)
2.9
Typ. (V)
3.2
Min. (V)
5.0
DST
2.9
3.4
4.0
5.0
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Vf Binning (Optional)
Vf Bin @ 20mA
0A
00
01
02
03
Forward Voltage (V)
2.75 ... 3.05
3.05 ... 3.35
3.35 … 3.65
3.65 … 3.95
3.95 … 4.25
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Please consult sales and marketing for special part number to incorporate Vf binning.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.005)
Reverse voltage
ESD threshold (HBM)
LED juction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
20
200
5
2
125
-40 … +100
-40 … +100
80
Unit
mA
mA
V
kV
˚C
˚C
˚C
mW
4
03/04/2006 V7.0
DOMINANT
TM
Semiconductors
Innovating Illumination
InGaN : DSx-xSx

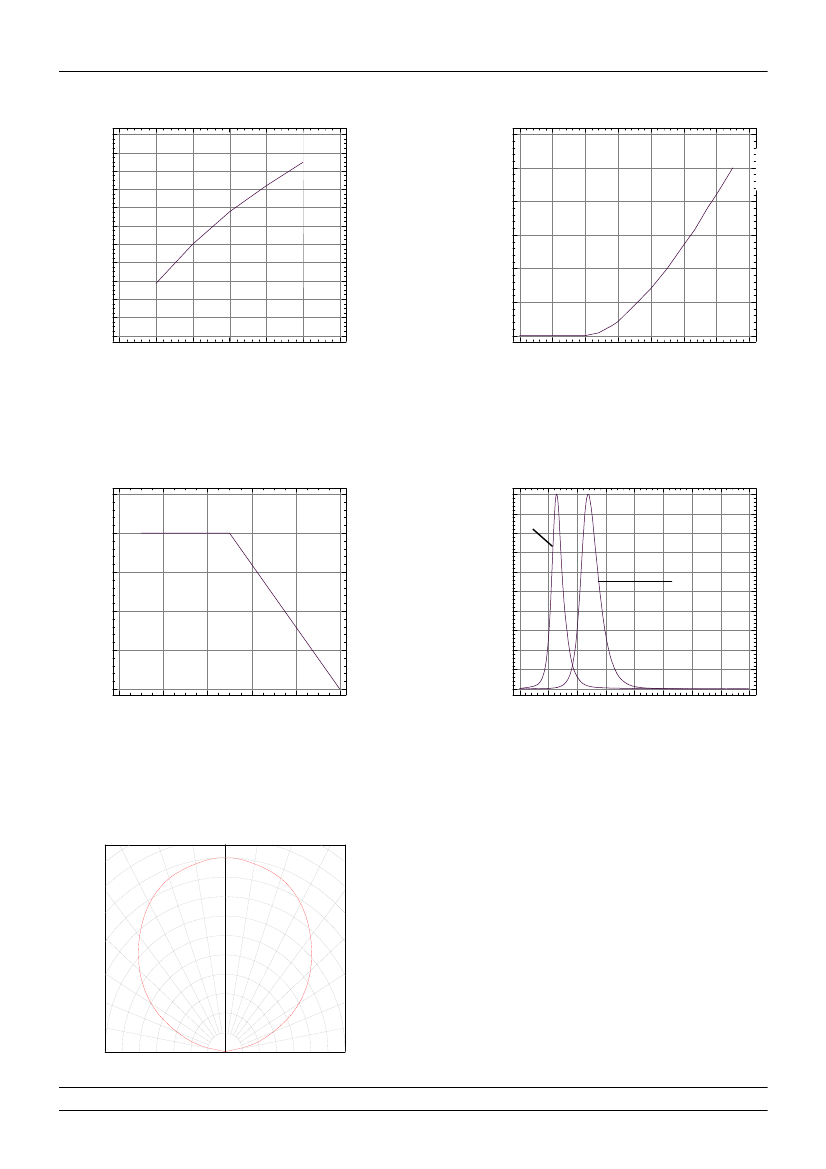

Forward Current Vs Forward Voltage
60
50
40
30
20
10
0
Relative Luminous Intensity Vs Forward Current
2.2
2
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
1.8
Forward Current, mA
Relative Intensity
1.5
2
2.5
3
3.5
4
4.5
5
Forward Current, mA
Forward Voltage, V
Maximum Current Vs Temperature
25
Relative Intensity Vs Wavelength
1
0.9
0.8
Blue
Forward Current, mA
20
Relative Intensity
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
True Green
15
10
5
0
0
20
40
60
80
100
400
450
500
550
600
650
700
750
800
Ambient Temperature
Wavelength, nm
Radiation Pattern
30°
20°
10°
0°
1.0
40°
0.8
50°
0.6
60°
70°
80°
90°
0.4
0.2
0
5
03/04/2006 V7.0
