8-1570-1E

Description
Terminals LUG
CategoryThe connector
File Size68KB,1 Pages
ManufacturerCinch Connectivity Solutions
Environmental Compliance
Download Datasheet Parametric View All

8-1570-1E Online Shopping

Suppliers Part Number Price MOQ In stock
8-1570-1E - - View Buy Now

8-1570-1E Overview

Terminals LUG

8-1570-1E Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerCinch Connectivity Solutions
Product CategoryTerminals
RoHSDetails
ProductLug Terminals
Type-
Stud / Tab Size-
Wire Gauge-
Termination Style-
Gender-
Insulation-
Color-
Contact Plating-
Contact Material-
Current Rating-
Insulation Material-
Length19.05 mm
MaterialBrass Alloy
Mounting Angle-
Mounting Method-
Voltage Rating-
Width-
Maximum Bundle Diameter-
Contact Gender-
1
2
3

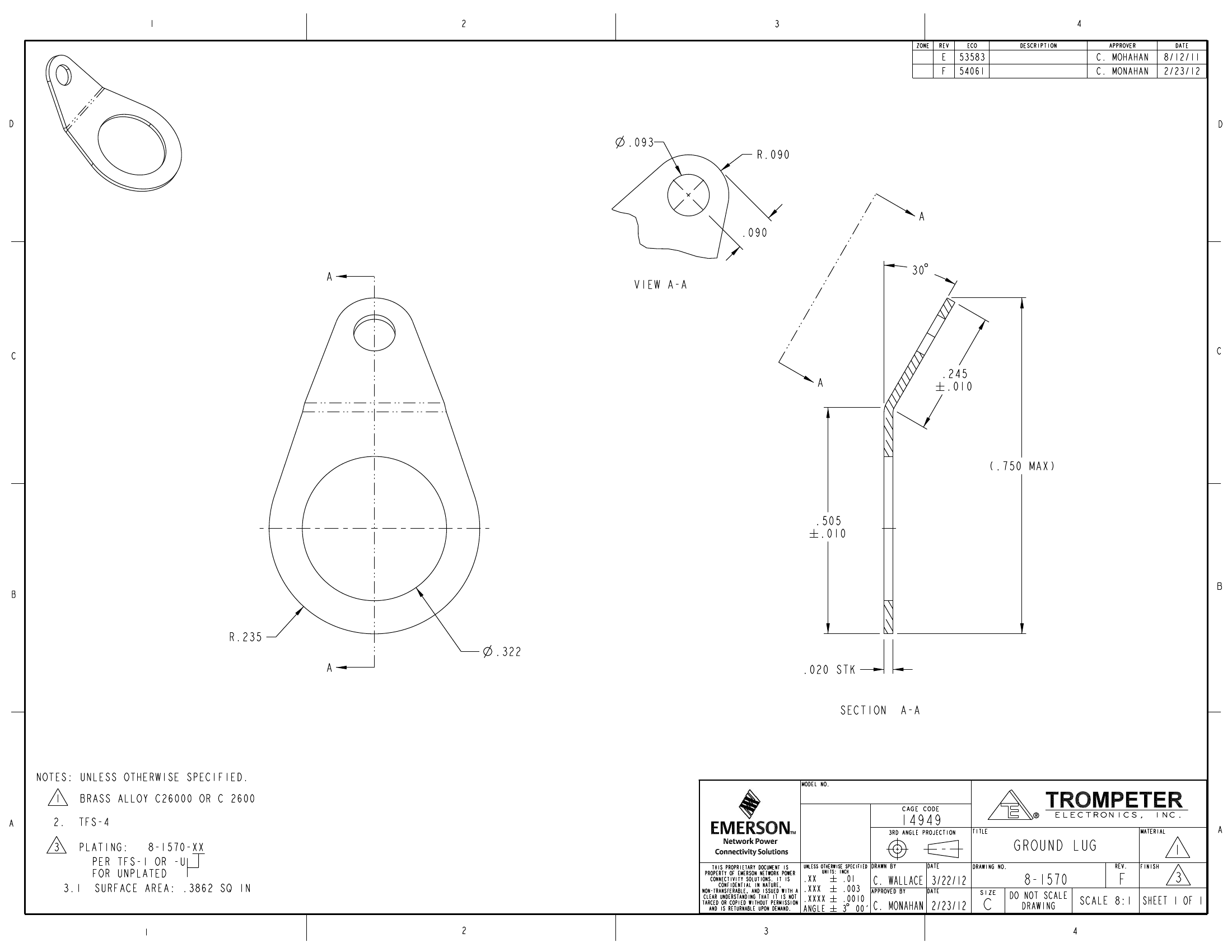

ZONE
REV
ECO
DESCRIPTION
4
APPROVER
DATE
E
F
53583
54061
C. MOHAHAN
C. MONAHAN
8/12/11
2/23/12
D
D
.093
R.090
A
.090
A
30
VIEW A-A
C
C
A
.245
.010
(.750 MAX)
.505
.010
B
B
R.235
.322
A
.020 STK
SECTION
A-A
NOTES: UNLESS OTHERWISE SPECIFIED.
MODEL NO.
1
A
BRASS ALLOY C26000 OR C 2600
CAGE CODE
2.
3
TFS-4
14949
3RD ANGLE PROJECTION
TITLE
R
ELECTRONICS, INC.
MATERIAL
A
8-1570-XX
PLATING:
PER TFS-1 OR -U
FOR UNPLATED
3.1 SURFACE AREA: .3862 SQ IN
GROUND LUG
DRAWN BY
THIS PROPRIETARY DOCUMENT IS
UNLESS OTHERWISE SPECIFIED
UNITS: INCH
PROPERTY OF EMERSON NETWORK POWER
CONNECTIVITY SOLUTIONS. IT IS
CONFIDENTIAL IN NATURE,
NON-TRANSFERABLE, AND ISSUED WITH A
APPROVED BY
CLEAR UNDERSTANDING THAT IT IS NOT
TARCED OR COPIED WITHOUT PERMISSION
AND IS RETURNABLE UPON DEMAND.
DATE
DRAWING NO.
REV.
FINISH
1
.XX
.XXX
.XXXX
ANGLE
.01
C.
.003
.0010
3 00'
C.
WALLACE/22/12
3
DATE
SIZE
8-1570
F
3
SHEET1 OF 1
MONAHAN/23/12
2
C
DO NOT SCALE
SCALE 8:1
DRAWING
4
1
2
3
