335104-14-0300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 335104-14-0300

335104-14-0300: DescriptionRF Cable Assemblies AMC Plug to AMC Plug 137mm Cable, 300mm; CategoryWire/cable; File Size98KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

335104-14-0300 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	335104-14-0300	-	-	View	Buy Now

335104-14-0300 Overview

RF Cable Assemblies AMC Plug to AMC Plug 137mm Cable, 300mm

335104-14-0300 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	AMC
Connector A Gender	Plug (Male)
Connector A Body Style	Right Angle
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	300 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.37 mm Coax
Connector A Polarity	Normal
Connector B Polarity	Normal
Polarity	Normal
Factory Pack Quantity	1

Preview

Download Datasheet

View All

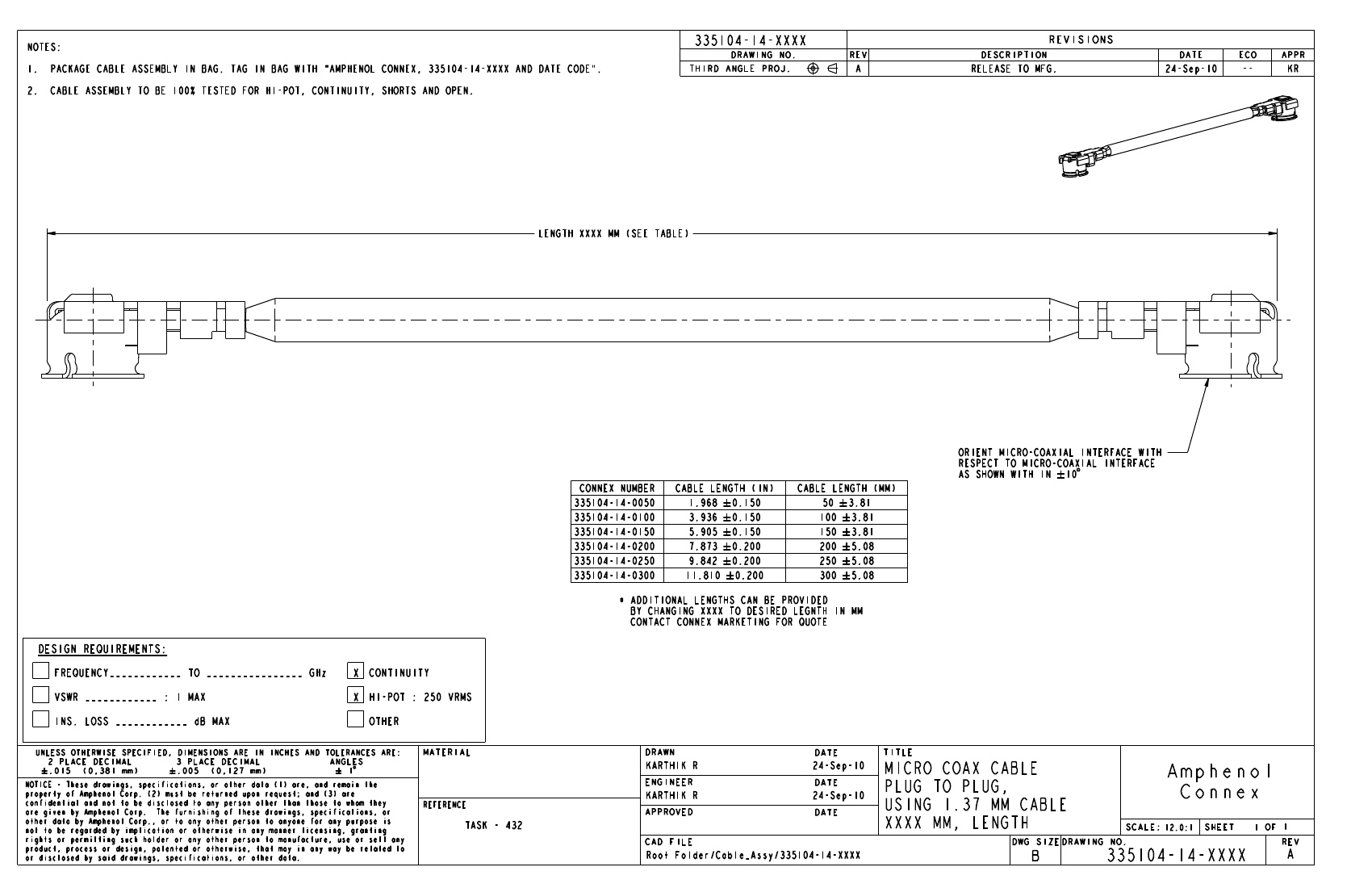

NOTES:

PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,

335104-14-XXXX AND DATE CODE".

335104-14-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REV

DESCRIPTION

REVISIONS

DATE

ECO

APPR

RELEASE TO MFG.

24-Sep-10

CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT, CONTINUITY, SHORTS AND OPEN.

LENGTH XXXX MM (SEE TABLE)

ORIENT MICRO-COAXIAL INTERFACE WITH

RESPECT TO MICRO-COAXIAL INTERFACE

AS SHOWN WITH IN #

10 $

CONNEX NUMBER

335104-14-0050

335104-14-0100

335104-14-0150

335104-14-0200

335104-14-0250

335104-14-0300

CABLE LENGTH (IN)

1.968

3.936

5.905

7.873

9.842

11.810

0.150

0.200

CABLE LENGTH (MM)

100

150

200

250

300

3.81

5.08

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XXXX TO DESIRED LEGNTH IN MM

CONTACT CONNEX MARKETING FOR QUOTE

DESIGN REQUIREMENTS:

FREQUENCY____________ TO ________________ GHz

VSWR ____________ : 1 MAX

INS. LOSS ____________ dB MAX

CONTINUITY

HI-POT : 250 VRMS

OTHER

MATERIAL

DRAWN

DATE

TITLE

UNLESS OTHERWISE SPECIFIED, DIMENSIO

NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

.015 (0,381 mm)

.005 (0,127 mm)

#1 $

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

KARTHIK R

ENGINEER

REFERENCE

24-Sep-10

DATE

KARTHIK R

APPROVED

24-Sep-10

DATE

TASK - 432

CAD FILE

MICRO COAX CABLE

PLUG TO PLUG,

USING 1.37 MM CABLE

XXXX MM, LENGTH

DWG SIZE

DRAWING NO.

Amphenol

Connex

SCALE:

12.0:1

SHEET

REV

Root Folder/Cable_Assy/ 335104-14-XXXX

335104-14-XXXX

335104-14-0300 Related Products

	335104-14-0300	335104-14-0200	335104-14-0050	335104-14-0250	335104-14-0100	335104-14-0150
Description	RF Cable Assemblies AMC Plug to AMC Plug 137mm Cable, 300mm	RF Cable Assemblies AMC Plug to AMC Plug 137mm Cable, 200mm	RF Cable Assemblies AMC Plug to AMC Plug 137mm Cable, 50mm	RF Cable Assemblies AMC Plug to AMC Plug 137mm Cable, 250mm	RF Cable Assemblies AMC Plug to AMC Plug 137mm Cable, 100mm	RF Cable Assemblies AMC Plug to AMC Plug 137mm Cable, 150mm
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Details	Details	Details	Details	Details	Details
Connector A Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector A Gender	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector A Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector B Gender	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Length	300 mm	200 mm	50 mm	250 mm	100 mm	150 mm
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Cable Type	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax
Connector A Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Factory Pack Quantity	1	1	1	1	1	1
