336209-13-0100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 336209-13-0100

336209-13-0100: DescriptionRF Cable Assemblies TNC Blkhd Jack - AMC Plug 132mm, 100mm; CategoryWire/cable; File Size160KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336209-13-0100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336209-13-0100	-	-	View	Buy Now

336209-13-0100 Overview

RF Cable Assemblies TNC Blkhd Jack - AMC Plug 132mm, 100mm

336209-13-0100 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	TNC
Connector A Gender	Jack (Female)
Connector A Body Style	Bulkhead
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	100 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.32 mm Coax
Packaging	Bulk
Connector A Polarity	Normal
Connector B Polarity	Normal
Polarity	Normal
Factory Pack Quantity	1

Preview

Download Datasheet

View All

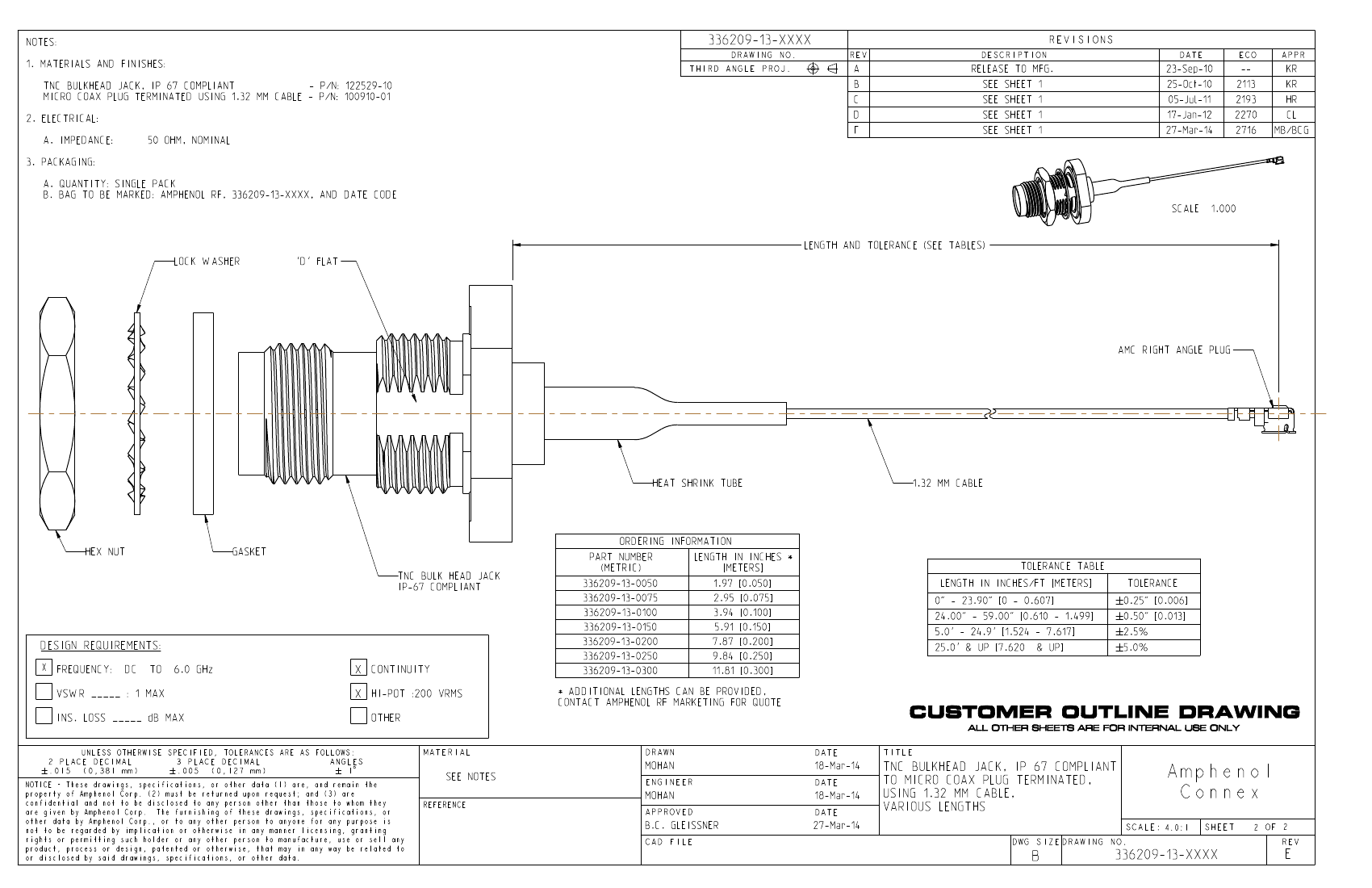

NOTES:

1. MATERIALS AND FINISHES:

TNC BULKHEAD JACK, IP 67 COMPLIANT

- P/N: 122529-10

MICRO COAX PLUG TERMINATED USING 1.32 MM CABLE - P/N: 100910-01

2. ELECTRICAL:

A. IMPEDANCE:

3. PACKAGING:

A. QUANTITY: SINGLE PACK

B. BAG TO BE MARKED: AMPHENOL RF, 336209-13-XXXX, AND DATE CODE

50 OHM, NOMINAL

336209-13-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

SEE SHEET 1

DESCRIPTION

23-Sep-10

DATE

ECO

25-Oct-10

SEE SHEET 1

05-Jul-11

2113

APPR

SEE SHEET 1

17-Jan-12

2193

27-Mar-14

2270

2716

MB/BCG

SCALE 1.000

LENGTH AND TOLERANCE (SEE TABLES)

LOCK WASHER

'D' FLAT

AMC RIGHT ANGLE PLUG

HEAT SHRINK TUBE

1.32 MM CABLE

HEX NUT

GASKET

TNC BULK HEAD JACK

IP-67 COMPLIANT

336209-13-0050

336209-13-0100

336209-13-0150

336209-13-0075

PART NUMBER

(METRIC)

ORDERING INFORMATION

LENGTH IN INCHES *

[METERS]

1.97 [0.050]

2.95 [0.075]

3.94 [0.100]

5.91 [0.150]

7.87 [0.200]

11.81 [0.300]

9.84 [0.250]

TOLERANCE TABLE

LENGTH IN INCHES/FT [METERS]

0" - 23.90" [0 - 0.607]

24.00" - 59.00" [0.610 - 1.499]

5.0' - 24.9' [1.524 - 7.617]

25.0' & UP [7.620 & UP]

TOLERANCE

0.50" [0.013]

5.0%

2.5%

0.25" [0.006]

DESIGN REQUIREMENTS:

336209-13-0200

FREQUENCY:

6.0 GHz

CONTINUITY

HI-POT :200 VRMS

OTHER

MATERIAL

336209-13-0250

336209-13-0300

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

* ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

DRAWN

SEE NOTES

REFERENCE

MOHAN

18-Mar-14

27-Mar-14

DATE

TITLE

ENGINEER

MOHAN

APPROVED

CAD FILE

TNC BULKHEAD JACK, IP 67 COMPLIANT

TO MICRO COAX PLUG TERMINATED,

USING 1.32 MM CABLE,

VARIOUS LENGTHS

DWG SIZE DRAWING NO.

Amphenol

Connex

SCALE: 4.0:1

SHEET

2 OF 2

REV

B.C. GLEISSNER

336209-13-XXXX

336209-13-0100 Related Products

	336209-13-0100	336209-13-0250	336209-13-0200	336209-13-0300	336209-13-0150	336209-13-0050	336209-13-0075
Description	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 132mm, 100mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 132mm, 250mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 132mm, 200mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 132mm, 300mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 132mm, 150mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 132mm, 50mm	RF Cable Assemblies TNC BLKHD JK to AMC Plug 1.32MM CBL 75MM
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Details	Details	Details	Details	Details	Details	Details
Connector A Series	TNC	TNC	TNC	TNC	TNC	TNC	TNC
Connector A Gender	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC	AMC
Connector B Gender	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Length	100 mm	250 mm	200 mm	300 mm	150 mm	50 mm	75 mm
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Cable Type	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.37 mm Coax
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector A Polarity	Normal	Normal	Normal	Normal	Normal	Normal	Normal
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal	Normal
Factory Pack Quantity	1	1	1	1	1	1	1
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	-
Polarity	Normal	Normal	Normal	Normal	Normal	Normal	-
