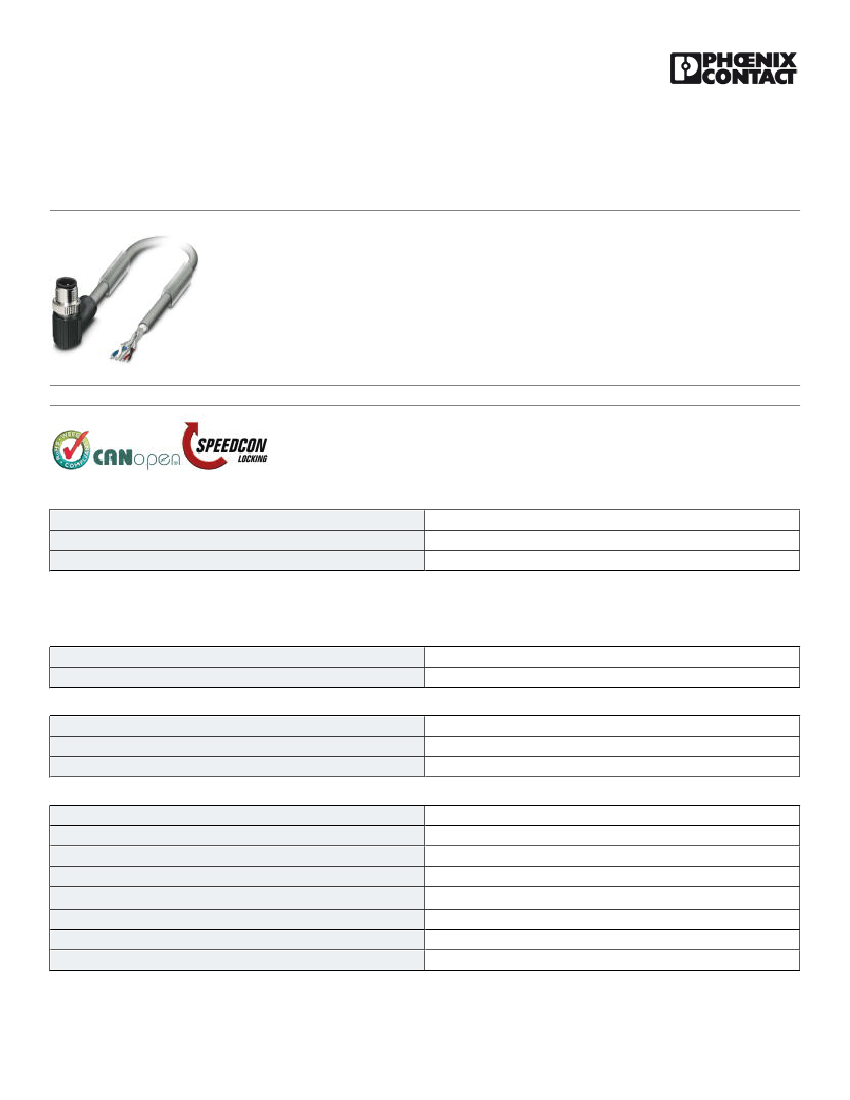

Bus system cable - SAC-5P-MR/20,0-923 CAN SCO - 1419048
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bus system cable, CANopen , DeviceNet™, 5-position, PUR halogen-free, gray RAL 7001, shielded, Plug angled
M12 SPEEDCON, A-coded, on free cable end, Cable length: 20 m, Connector, unshielded
®
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85444290
Germany
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
20 m
50 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Coding
Signal type/category
Status display
Overvoltage category
4A
60 V
5
A - standard
CANopen
No
II
04/14/2016 Page 1 / 5
®
DeviceNet™
https://www.phoenixcontact.com/us/products/1419048
Bus system cable - SAC-5P-MR/20,0-923 CAN SCO - 1419048
Technical data
General
Degree of pollution
Torque
3
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Pin assignment
Position = wire color (signal) = position (optional)
1 (Plug) = SR (shield)
2 (Plug) = RD (V+)
3 (Plug) = BK (V-)
4 (Plug) = WH (CAN_H)
5 (Plug) = BU (CAN_L)
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Cable structure
Conductor cross section
CAN Bus/DeviceNet drop cable
923
21198 (80°C/300 V)
2xAWG24/19+2xAWG22/19
2x 0.25 mm² (Data cable)
2x 0.34 mm² (Power supply)
1x 0.34 mm² (Drain wire)
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
Wire colors
Twisted pairs
Type of pair shielding
24
22
19x 0.13 mm
19x 0.15 mm
1.95 mm ±0.05 mm (Data cable)
1.4 mm ±0.05 mm (Power supply)
Red-black, blue-white
2 cores to the pair
Plastic-coated aluminum foil, aluminum side outside
04/14/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1419048
Bus system cable - SAC-5P-MR/20,0-923 CAN SCO - 1419048
Technical data
Cable
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Loop resistance
Working capacitance
Wave impedance
Shield attenuation
2 pairs around a drain wire in the center to the core
Tinned copper braided shield
80 %
Silver-gray RAL 7001
6.7 mm ±0,3 mm
10 x D
5000000
70 mm
4.5 m
3 m/s
3 m/s²
PUR
Foamed PE (Data cable)
PE (Power supply)
Tin-plated Cu litz wires
≥ 5 GΩ*km (Data cable)
≥ 5 GΩ*km (Power supply)
≤ 181.8 Ω (Data cable)
≤ 114.8 Ω (Power supply)
nom. 40 nF (Data cable)
120 Ω ±12 Ω (f = 1 MHz)
≤ 0.95 dB (f = 125 kHz)
≤ 1.64 dB (f = 500 kHz)
≤ 2.29 dB (f = 1 MHz)
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Other resistance
Ambient temperature (operation)
≤ 300 V (Peak value, not for high-power applications)
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
UL 1581, Sec. 1060 (FT-1)
IEC 60332-1
Low adhesion
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 70 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
27060307
04/14/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1419048
Bus system cable - SAC-5P-MR/20,0-923 CAN SCO - 1419048
Classifications
eCl@ss
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27060307
27061801
27060307
27279218
27279218
27279218
27060311
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC000830
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121616
26121616
26121604
26121616
26121616
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approvals submitted
Approval details
EAC
04/14/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1419048
Bus system cable - SAC-5P-MR/20,0-923 CAN SCO - 1419048

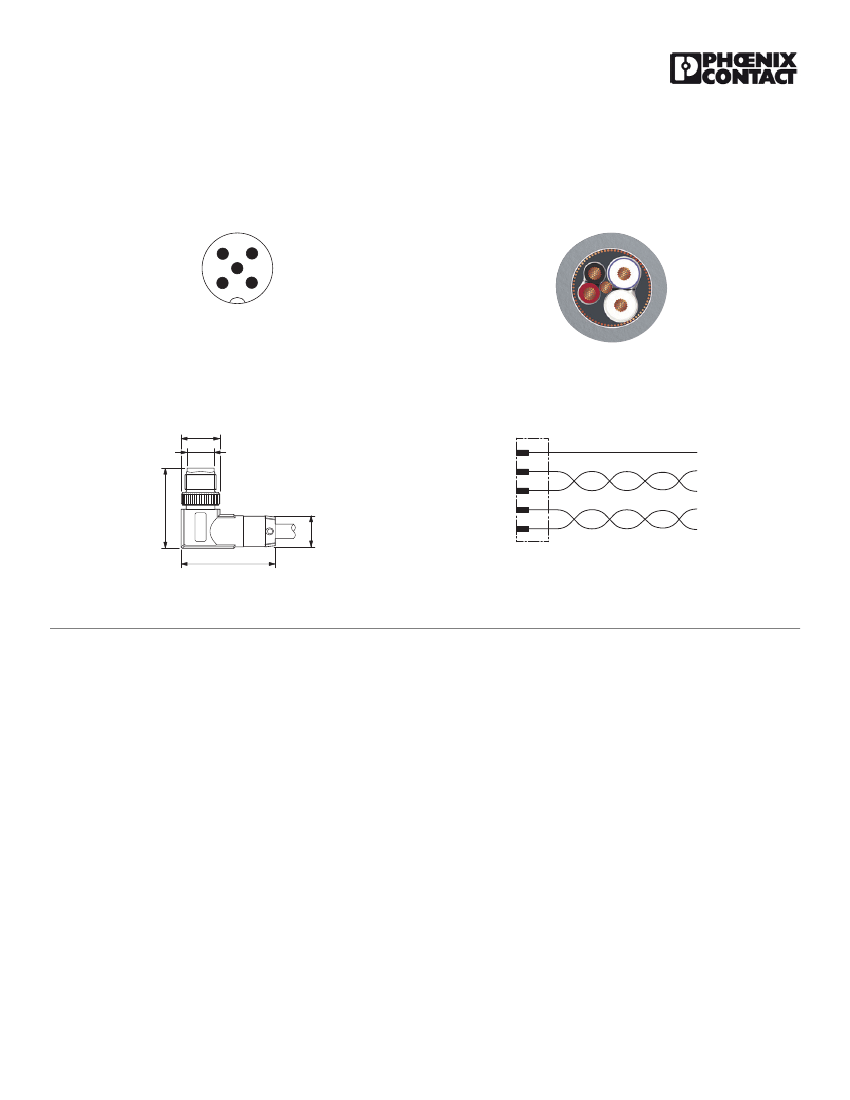

Drawings
Schematic diagram
4
5
3
Cable cross section
1
2
Pin assignment M12 male connector, 5-pos., A-coded, male side
CAN Bus/DeviceNet [923]
Dimensional drawing
Ø15
M12
1
2
3
Circuit diagram
SH
RD
BK
WH
BU
30
4
Ø12
5
36,25
Contact assignment of the M12 plug
M12 x 1 male plug, angled
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/14/2016 Page 5 / 5
