336306-14-0300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 336306-14-0300

336306-14-0300: DescriptionRF Cable Assemblies SMA Blkhd Jack - AMC Plug 137mm, 300mm; CategoryWire/cable; File Size103KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336306-14-0300 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336306-14-0300	-	-	View	Buy Now

336306-14-0300 Overview

RF Cable Assemblies SMA Blkhd Jack - AMC Plug 137mm, 300mm

336306-14-0300 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	SMA
Connector A Gender	Jack (Female)
Connector A Body Style	Bulkhead
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	300 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.37 mm Coax
Packaging	Bulk
Connector A Polarity	Reverse
Connector B Polarity	Normal
Polarity	Reverse
Factory Pack Quantity	1

Preview

Download Datasheet

View All

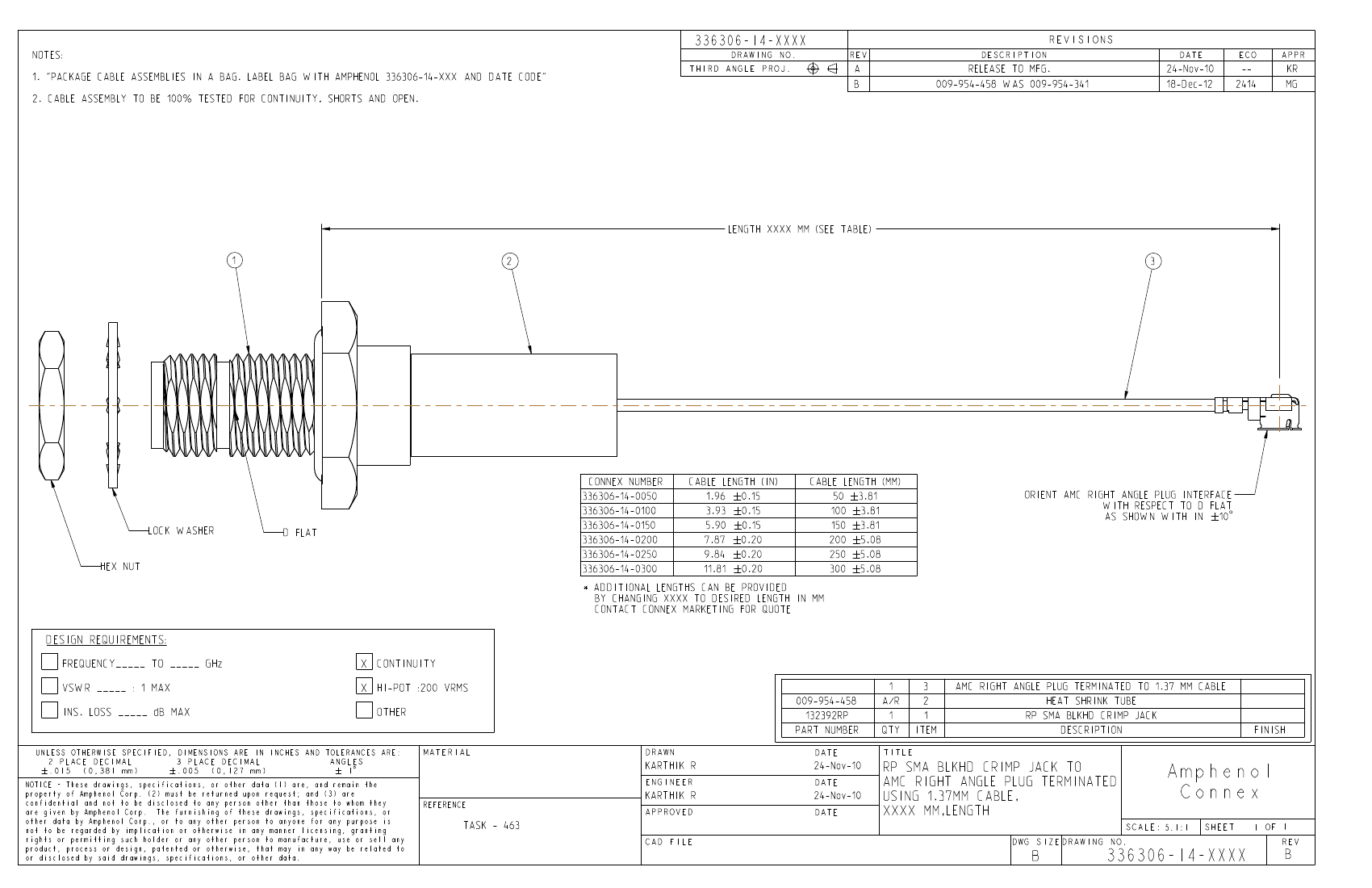

NOTES:

1. "PACKAGE CABLE ASSEMBLIES IN A BAG. LABEL BAG WITH AMPHENOL 336306-14-XXX AND DATE CODE"

2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.

336306-14-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

009-954-458 WAS 009-954-341

RELEASE TO MFG.

DESCRIPTION

18-Dec-12

24-Nov-10

DATE

ECO

2414

APPR

LENGTH XXXX MM (SEE TABLE)

336306-14-0050

336306-14-0100

LOCK WASHER

HEX NUT

D FLAT

CONNEX NUMBER

CABLE LENGTH (IN)

1.96 #

0.15

5.90

3.93 #

0.15

7.87

9.84

CABLE LENGTH (MM)

100 #

3.81

200

250

300

150 #

3.81

5.08

3.81

336306-14-0150

336306-14-0200

336306-14-0250

336306-14-0300

0.20

0.15

ORIENT AMC RIGHT ANGLE PLUG INTERFACE

WITH RESPECT TO D FLAT

AS SHOWN WITH IN

# $

11.81 #

0.20

5.08

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XXXX TO DESIRED LENGTH IN MM

CONTACT CONNEX MARKETING FOR QUOTE

DESIGN REQUIREMENTS:

FREQUENCY_____ TO _____ GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

CONTINUITY

HI-POT :200 VRMS

OTHER

009-954-458

PART NUMBER

132392RP

DATE

A/R

QTY

TITLE

ITEM

AMC RIGHT ANGLE PLUG TERMINATED TO 1.37 MM CABLE

RP SMA BLKHD CRIMP JACK

DESCRIPTION

HEAT SHRINK TUBE

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

KARTHIK R

24-Nov-10

ENGINEER

REFERENCE

APPROVED

CAD FILE

TASK - 463

RP SMA BLKHD CRIMP JACK TO

AMC RIGHT ANGLE PLUG TERMINATED

USING 1.37MM CABLE,

XXXX MM,LENGTH

Amphenol

Connex

SCALE: 5.1:1

SHEET

1 OF 1

REV

DWG SIZE DRAWING NO.

336306-14-XXXX

336306-14-0300 Related Products

	336306-14-0300	336306-14-0050	336306-14-0150	336306-14-0200	336306-14-0100	336306-14-0250
Description	RF Cable Assemblies SMA Blkhd Jack - AMC Plug 137mm, 300mm	RF Cable Assemblies SMA Blkhd Jack - AMC Plug 137mm, 50mm	RF Cable Assemblies SMA Blkhd Jack - AMC Plug 137mm, 150mm	RF Cable Assemblies SMA Blkhd Jack - AMC Plug 137mm, 200mm	RF Cable Assemblies SMA Blkhd Jack - AMC Plug 137mm, 100mm	RF Cable Assemblies SMA Blkhd Jack - AMC Plug 137mm, 250mm
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Details	Details	Details	Details	Details	Details
Connector A Series	SMA	SMA	SMA	SMA	SMA	SMA
Connector A Gender	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector B Gender	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Length	300 mm	50 mm	150 mm	200 mm	100 mm	250 mm
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Cable Type	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector A Polarity	Reverse	Reverse	Reverse	Reverse	Reverse	Reverse
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Polarity	Reverse	Reverse	Reverse	Reverse	Reverse	Reverse
Factory Pack Quantity	1	1	1	1	1	1
