336314-13-0050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 336314-13-0050

336314-13-0050: DescriptionRF Cable Assemblies SMA RP BH Jk-AMC Plg 1.32mm cable, 50 mm; CategoryWire/cable; File Size318KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336314-13-0050 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336314-13-0050	-	-	View	Buy Now

336314-13-0050 Overview

RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.32mm cable, 50 mm

336314-13-0050 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	SMA
Connector A Gender	Jack (Female)
Connector A Body Style	Bulkhead
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	50 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.32 mm Coax
Packaging	Bulk
Color	Black
Contact Plating	Gold
Contact Material	Brass
Connector A Polarity	Normal
Connector B Polarity	Normal
Polarity	Normal
Factory Pack Quantity	1

Preview

Download Datasheet

View All

NOTES:

1. MATERIALS AND FINISHES:

RP SMA STR BHD JACK - BRASS, GOLD PLATING

CABLE - 1.32 MM TO AMC R/A PLUG

2. ELECTRICAL:

A. IMPEDANCE: 50 OHM, NOMINAL

3. PACKAGING:

A. QUANTITY:

B. BAG TO BE MARKED:

SINGLE PACK

AMPHENOL RF, 336314-13-XXXX, AND DATE CODE

6.50

THIRD ANGLE PROJ.

REV

REVISIONS

RELEASE TO MFG

DESCRIPTION

DATE

DRAWING UPDATED & COD SHEET ADDED

28-Jul-15

ECO

50567

APPR

6.00

SCALE

1.500

RECOMMENDED MOUNTING

HOLE DIMENSIONS

(MAX.PANEL THICKNESS = 3.20 MM)

LENGTH AND TOLERANCE XX.XX (SEE TABLE)

15.00 # 1.00

'D' FLAT

1.32 MM CABLE

AMC R/A PLUG

HEAT SHRINK TUBE

ORIENT AMC R/A PLUG INTERFACE

WITH RESPECT TO 'D FLAT'

AS SHOWN WITH IN # 10 $

LOCK WASHER

8.00 (5/16") HEX

PART NUMBER

DESIGN REQUIREMENTS:

FREQUENCY : DC TO 6 GHz

VSWR : ____ MAX

INS. LOSS : ---- dBMAX

336314-13-0050

336314-13-0100

LENGTH AND TOLERANCE

XX.XX IN MM

100.00 # 5.00

150.00 # 5.00

200.00 # 5.00

250.00 # 5.00

300.00 # 5.00

50.00 # 5.00

CONTINUITY

HI-POT : 200 VRMS

OTHER

MATERIAL

SEE NOTES

REFERENCE

EAR # 6751

CONFIGURATION LEVEL: In Work

336314-13-0150

336314-13-0200

336314-13-0250

336314-13-0300

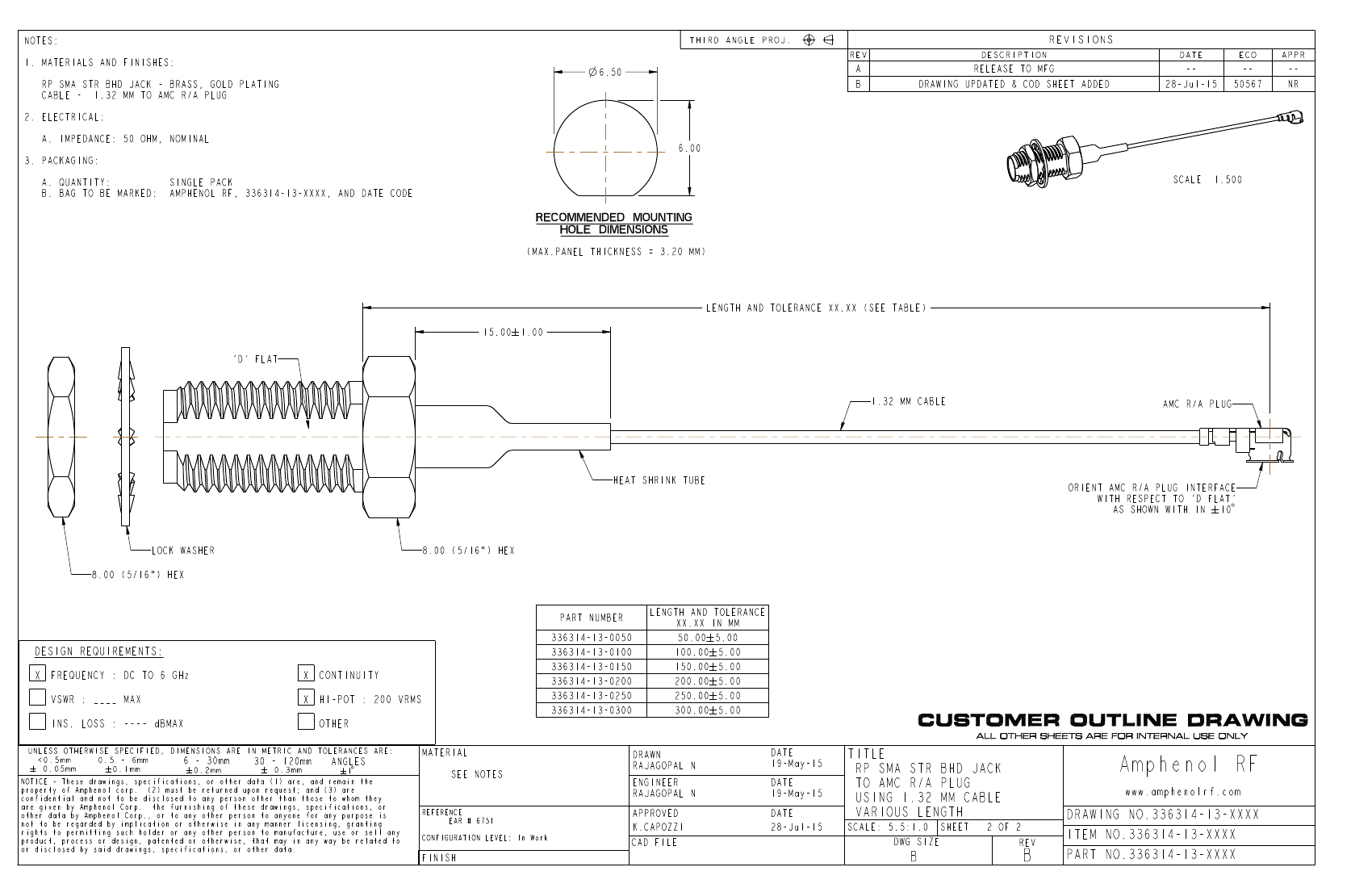

CUSTOMER OUTLINE DRAWING

ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY

DATE

19-May-15

DATE

19-May-15

DATE

28-Jul-15

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:

<0.5mm

0.5 - 6mm

6 - 30mm

30 - 120mm

ANGLES

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon request; and (3) are

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the furnishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implication or otherwise in any manner licensing,

granting

rights to permitting such holder or any other person to manufacture, use or

sell any

product, process or design, patented or otherwise, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

DRAWN

RAJAGOPAL N

ENGINEER

RAJAGOPAL N

APPROVED

K.CAPOZZI

TITLE

RP SMA STR BHD JACK

TO AMC R/A PLUG

USING 1.32 MM CABLE

VARIOUS LENGTH

SCALE: 5.5:1.0

DWG SIZE

SHEET

Amphenol RF

www.amphenolrf.com

FINISH

CAD FILE

2 OF 2

DRAWING NO. 336314-13-XXXX

REV

ITEM NO. 336314-13-XXXX

PART NO. 336314-13-XXXX

336314-13-0050 Related Products

	336314-13-0050	336314-13-0150	336314-13-0300	336314-13-0200	336314-13-0100	336314-13-0250
Description	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.32mm cable, 50 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.32mm cable, 150 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.32mm cable, 300 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.32mm cable, 200 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.32mm cable, 100 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.32mm cable, 250 mm
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Details	Details	Details	Details	Details	Details
Connector A Series	SMA	SMA- RP Reverse Polarity	SMA	SMA	SMA	SMA
Connector A Gender	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector B Gender	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Length	50 mm	150 mm	300 mm	200 mm	100 mm	250 mm
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Cable Type	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Color	Black	Black	Black	Black	Black	Black
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass
Connector A Polarity	Normal	Reverse	Normal	Normal	Normal	Normal
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Polarity	Normal	Reverse	Normal	Normal	Normal	Normal
Factory Pack Quantity	1	1	1	1	1	1
