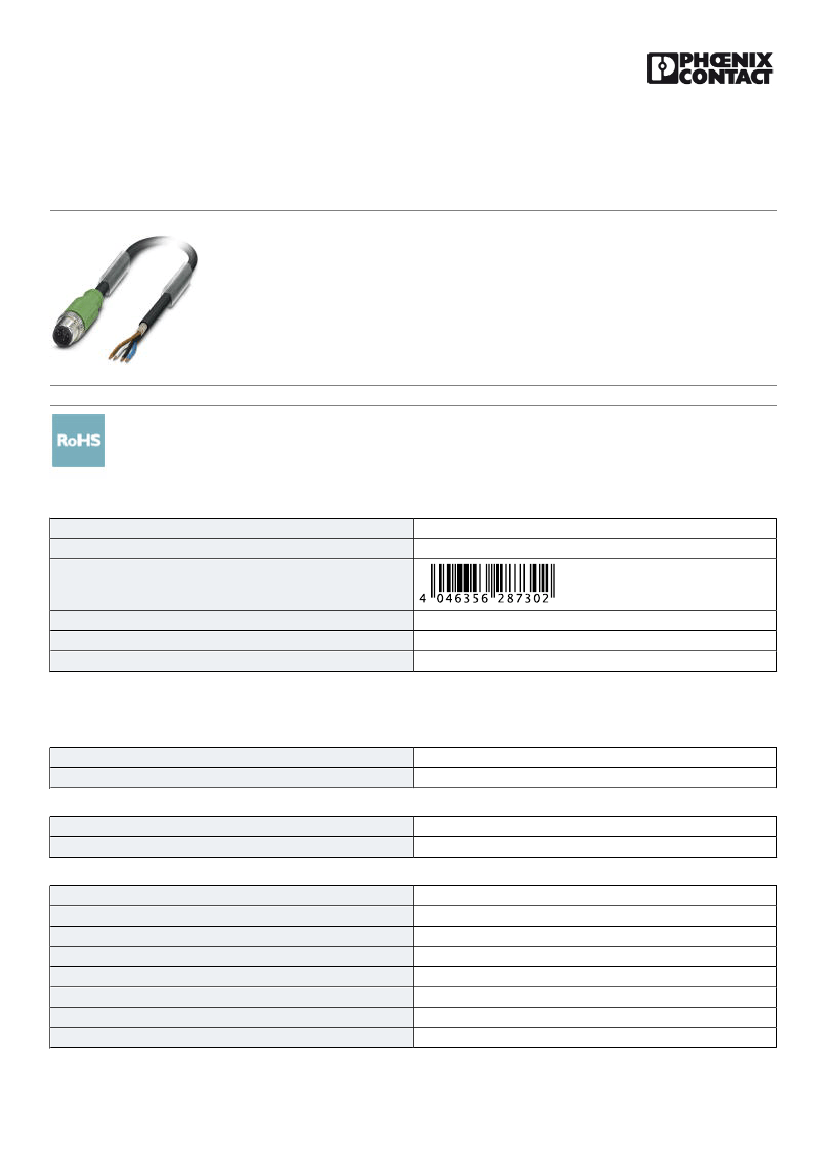

Sensor/Actuator cable - SAC-4P-M12MS/45,0-PUR SH - 1561632
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12, A-
coded, on free cable end, Cable length: 45 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356287302
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
45 m
50 mm
Ambient conditions
Degree of protection
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Overvoltage category
Degree of pollution
4A
250 V
4
≥ 100 MΩ
A - standard
No
II
3
11/13/2016 Page 1 / 5
https://www.phoenixcontact.com/hq/products/1561632
Sensor/Actuator cable - SAC-4P-M12MS/45,0-PUR SH - 1561632
Technical data
General
Insertion/withdrawal cycles
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
PUR halogen-free black
PUR
Li9Y-V1-C-V1-11Y
20549 / 10493 (80°C/300 V)
4x 0.34 mm² (Signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (Signal line)
≥ 0.21 mm
brown, white, blue, black
4 wires, twisted
Tinned copper braided shield
85 %
black-gray RAL 7021
approx. 1 mm
5.9 mm ±0.2 mm
29.5 mm
59 mm
5xD
10 x D
2000000
59 mm
10 x D
10 m
3 m/s
10 m/s²
46 kg/km
PUR
11/13/2016 Page 2 / 5
https://www.phoenixcontact.com/hq/products/1561632
Sensor/Actuator cable - SAC-4P-M12MS/45,0-PUR SH - 1561632
Technical data
Cable
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Working capacitance
Wave impedance
Inductance
Nominal voltage, cable
Test voltage, cable
Special properties
PP
Bare Cu litz wires
≥ 100 GΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
≤ 80 pF (Conductor-Conductor)
≤ 135 pF (Wire/shield)
≥ 62 Ω (f = 10 MHz)
approx. 0.75 mH (f = 1 kHz)
≤ 300 V
≥ 3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Low adhesion surface
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in acc. with UL FT-2
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
abrasion-resistant
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

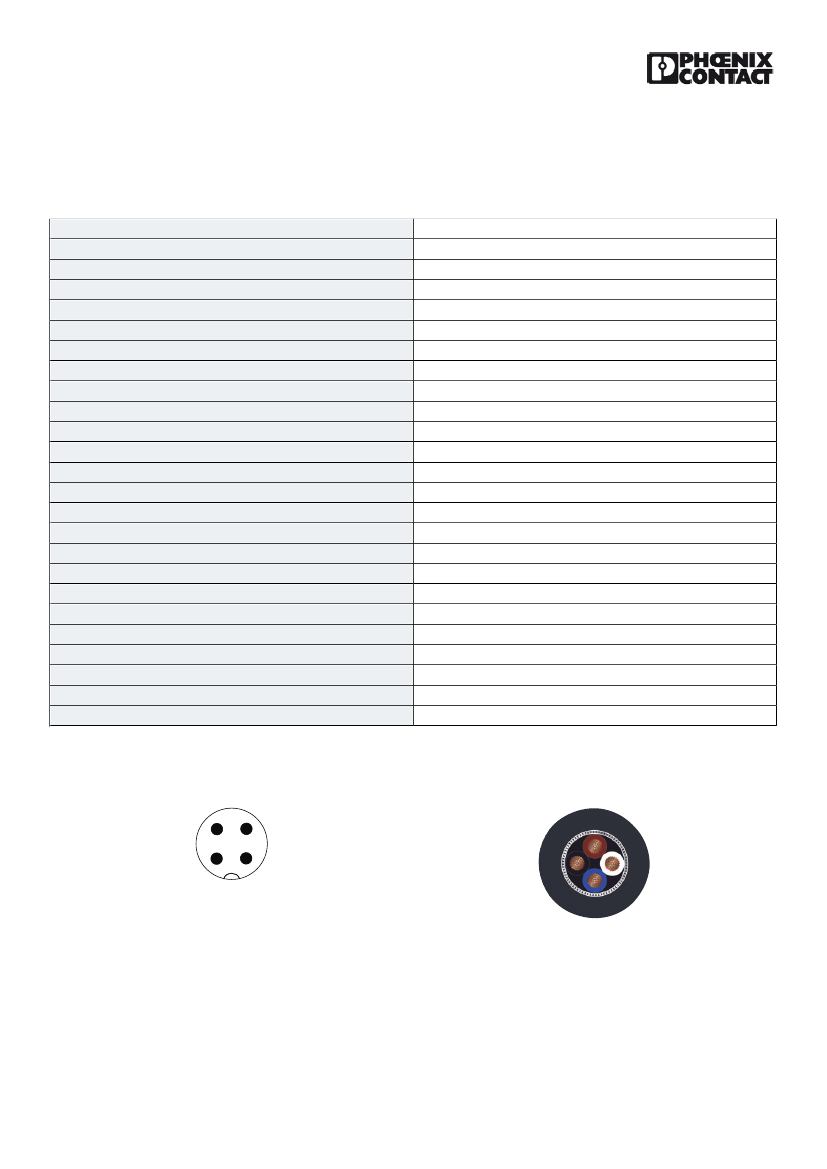

Drawings
Schematic diagram
4
3
Cable cross section
1
2
Pin assignment M12 plug, 4-pos., A-coded, view plug side
PUR halogen-free black [PUR]
11/13/2016 Page 3 / 5
https://www.phoenixcontact.com/hq/products/1561632
Sensor/Actuator cable - SAC-4P-M12MS/45,0-PUR SH - 1561632
Dimensional drawing
Circuit diagram
47,3
1
2
BN
WH
BK
BU
Ø14,8
M12
Ø12
4
3
Plug, M12 x 1, straight, shielded
Contact assignment of the M12 plug
Diagram
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
300 V
Nominal current IN
Nominal voltage UN
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
300 V
Nominal current IN
Nominal voltage UN
cULus Listed
11/13/2016 Page 4 / 5
https://www.phoenixcontact.com/hq/products/1561632
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 5 / 5
