Sensor/Actuator cable - SAC-3P- 5,0-540/M12FR BK - 1400502
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PVC, yellow RAL 1021, free cable end, on Socket angled M12, A-coded,
Cable length: 5 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356498654
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
5m
50 mm
Ambient conditions
Degree of protection
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
4A
250 V
3
≥ 100 MΩ
A - standard
No
II
3
≥ 100
Material
Flammability rating according to UL 94
HB
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1400502
Sensor/Actuator cable - SAC-3P- 5,0-540/M12FR BK - 1400502
Technical data
Material
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Ambient temperature (operation)
PVC yellow
540
LiYY
0.34 mm²
22
42x 0.10 mm
1.45 mm ±0.02 mm
≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
brown, blue, black
3 wires, twisted
yellow RAL 1021
5.2 mm ±0.2 mm
40 kg/km
PVC
PVC
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
As per UL-Style 2464
-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Drawings
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1400502
Sensor/Actuator cable - SAC-3P- 5,0-540/M12FR BK - 1400502

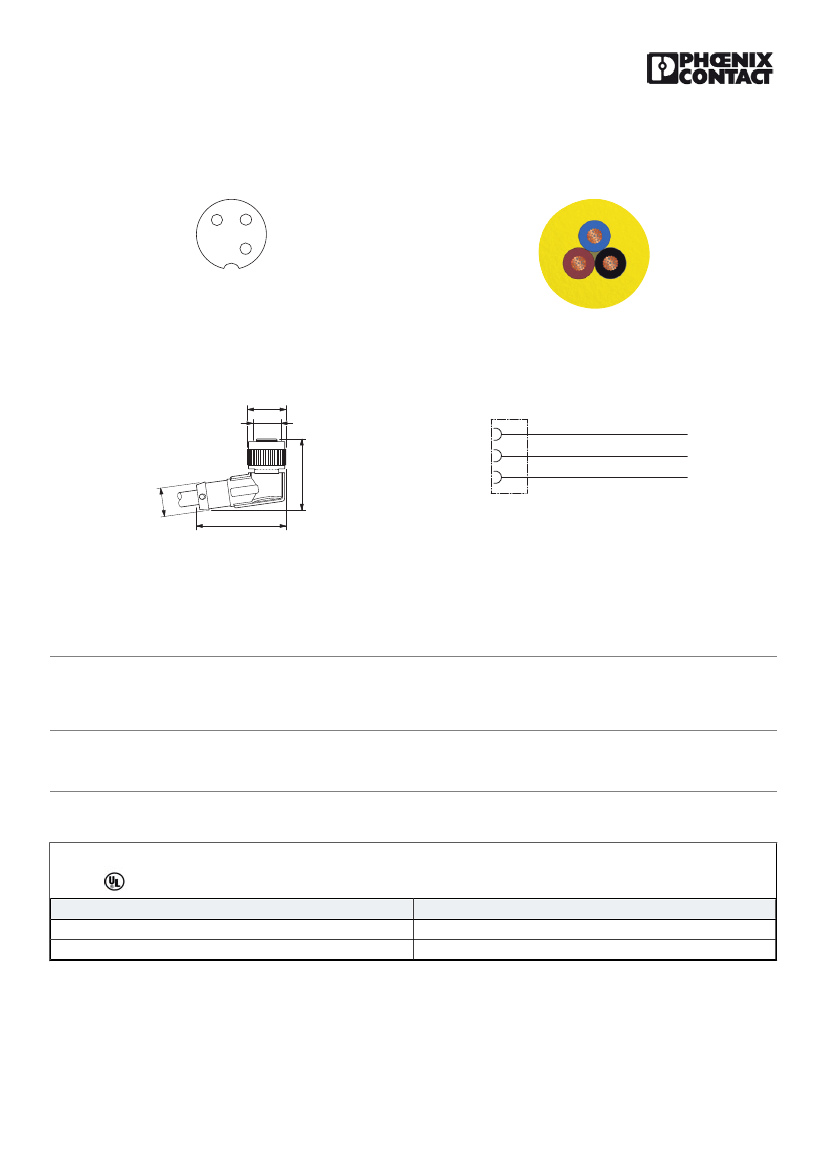

Schematic diagram
3
4
Cable cross section
1
Pin assignment M12 socket, 3-pos., A-coded, view female side
PVC yellow [540]
Dimensional drawing
Ø14,8
M12
1
4
Circuit diagram
BN
BK
BU
27,4
3
M12 x 1 socket, angled
Ø11
34,5
Contact assignment of the M12 socket
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
300 V
Nominal current IN
Nominal voltage UN
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1400502
Sensor/Actuator cable - SAC-3P- 5,0-540/M12FR BK - 1400502
Approvals
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
300 V
Nominal current IN
Nominal voltage UN
cULus Listed
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
