3023019-02M

Description
USB Cables / IEEE 1394 Cables USB 3.0 MICRO AB MICRO B 2M
CategoryWire/cable
File Size313KB,2 Pages
ManufacturerQualtek
Environmental Compliance
Download Datasheet Parametric View All

3023019-02M Online Shopping

Suppliers Part Number Price MOQ In stock
3023019-02M - - View Buy Now

3023019-02M Overview

USB Cables / IEEE 1394 Cables USB 3.0 MICRO AB MICRO B 2M

3023019-02M Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerQualtek
Product CategoryUSB Cables / IEEE 1394 Cables
RoHSDetails
ProductUSB Cables
TypeUSB 3.0
Connector End AUSB Type A, Micro
Connector End A Pin Count10 Position
Connector End BUSB Type B, Micro
Connector End B Pin Count10 Position
GenderMale / Male
Length2000 mm
ColorBlack
Factory Pack Quantity50

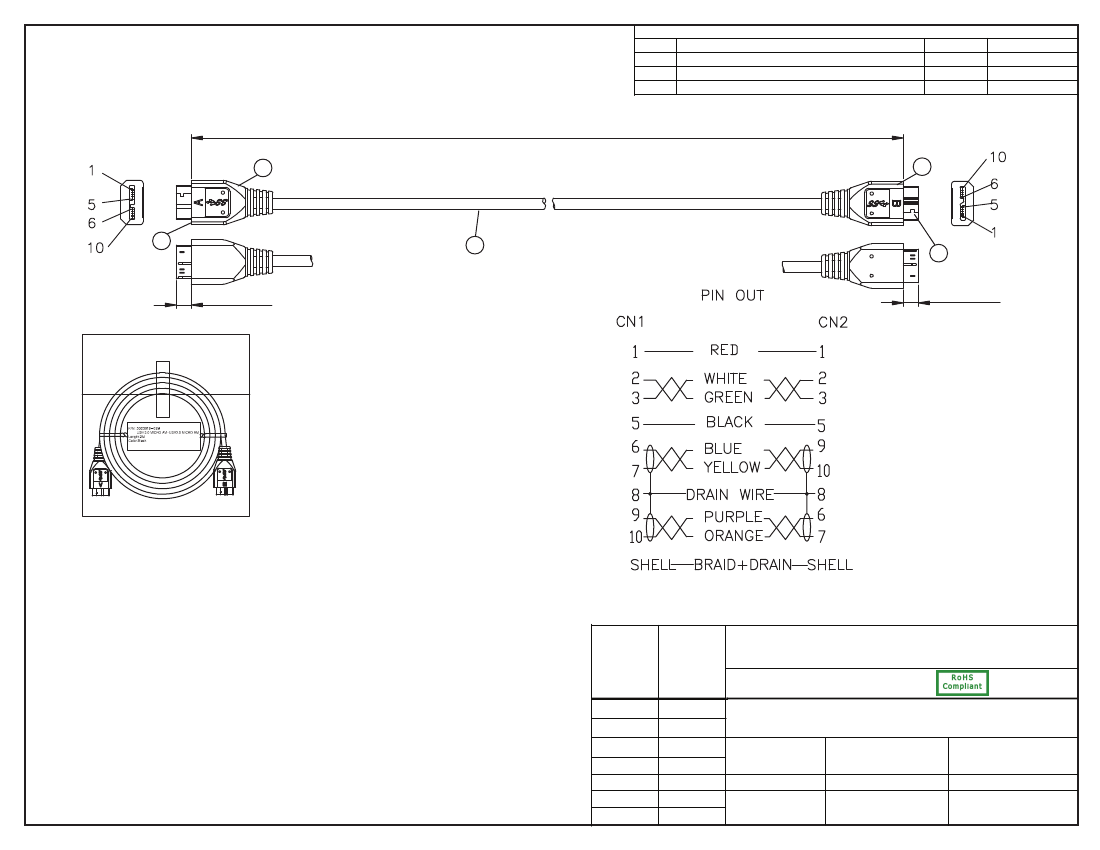

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
2000 ± 30mm
4
REV.
B
REVISION
DESCRIPTION
Updated Specifications
DATE
02-15-17
APPROVED
LY
4
CN1
2
1
3
CN2
5.5 ±
0.3
0.1
5.5 ±
0.3
0.1
NOTES:
1. CABLE: UL20276
(30AWG*1PR+EAM)*2C+30AWG*1PR+24AWG*2C+AEB (AL) 65%
OUTER JACKET: BLACK, OD: 5.5 ± 0.2mm
2. CONNECTOR: MICRO USB 3.0 A TYPE MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
3. CONNECTOR: MICRO USB 3.0 B TYPE MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
4. PVC MOLDED: 45P BLACK
5. ELECTRICAL TEST:
<1>.100% OPEN SHORT & MISS WIRE TEST
<2>. INSULATION RESISTANCE: DC300V 20M ohm MIN.
<3>. CONDUCTOR RESISTANCE: 2 ohm MAX.
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
3023019-02M
MICRO USB 3.0 A/M - MICRO USB 3.0 B/M
UNIT: mm
REV. B
Approved / Date
LY / 06-25-10
Drawn / Date
R.Nuti
06-25-10
Checked / Date
06-25-10
