336314-14-0200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 336314-14-0200

336314-14-0200: DescriptionRF Cable Assemblies SMA RP BH Jk-AMC Plg 1.37mm cable, 200 mm; CategoryWire/cable; File Size666KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336314-14-0200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336314-14-0200	-	-	View	Buy Now

336314-14-0200 Overview

RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.37mm cable, 200 mm

336314-14-0200 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	SMA
Connector A Gender	Jack (Female)
Connector A Body Style	Bulkhead
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	200 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.37 mm Coax
Packaging	Bulk
Color	Black
Contact Plating	Gold
Contact Material	Brass
Connector A Polarity	Normal
Connector B Polarity	Normal
Polarity	Normal
Factory Pack Quantity	1

Preview

Download Datasheet

View All

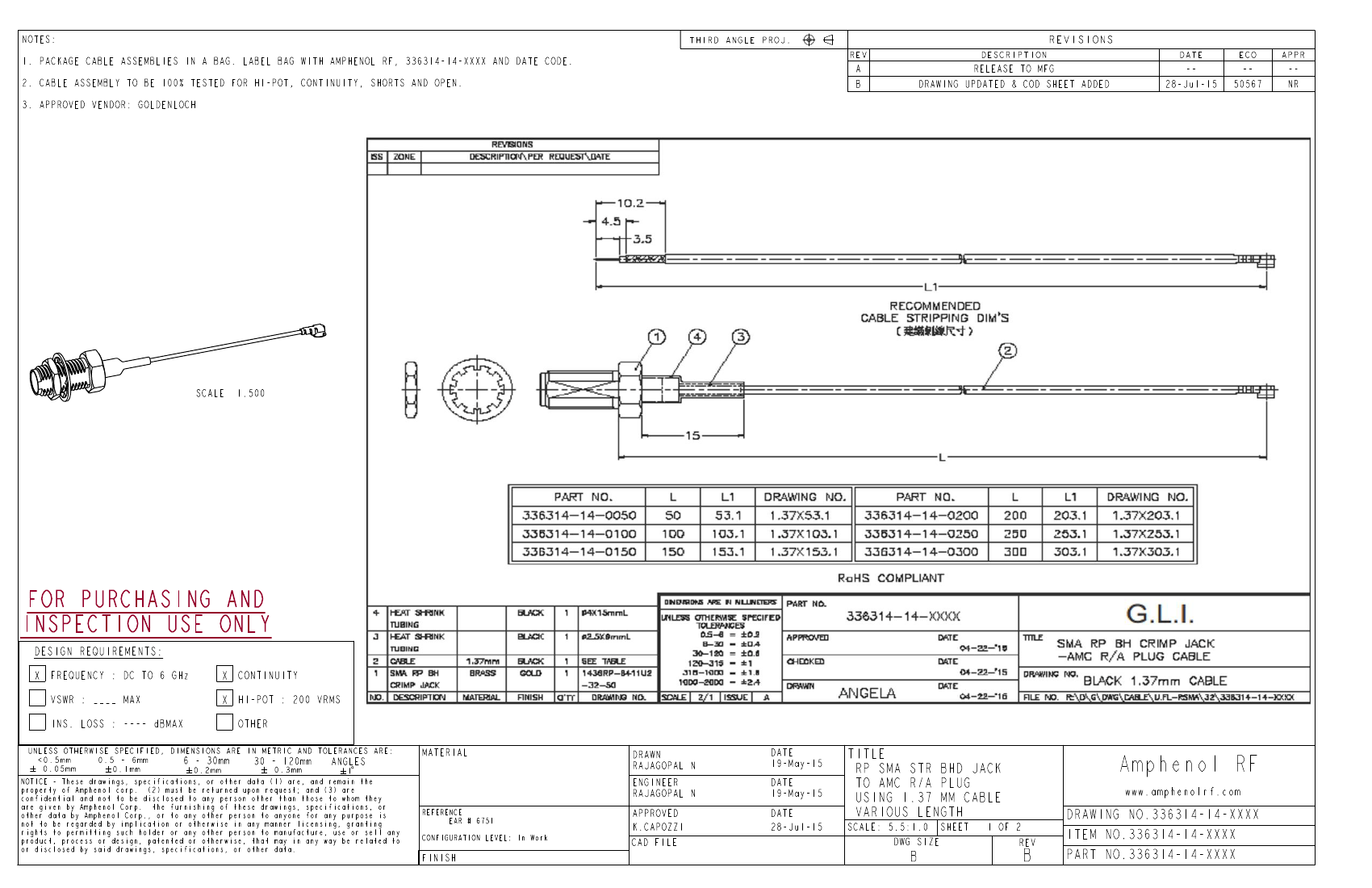

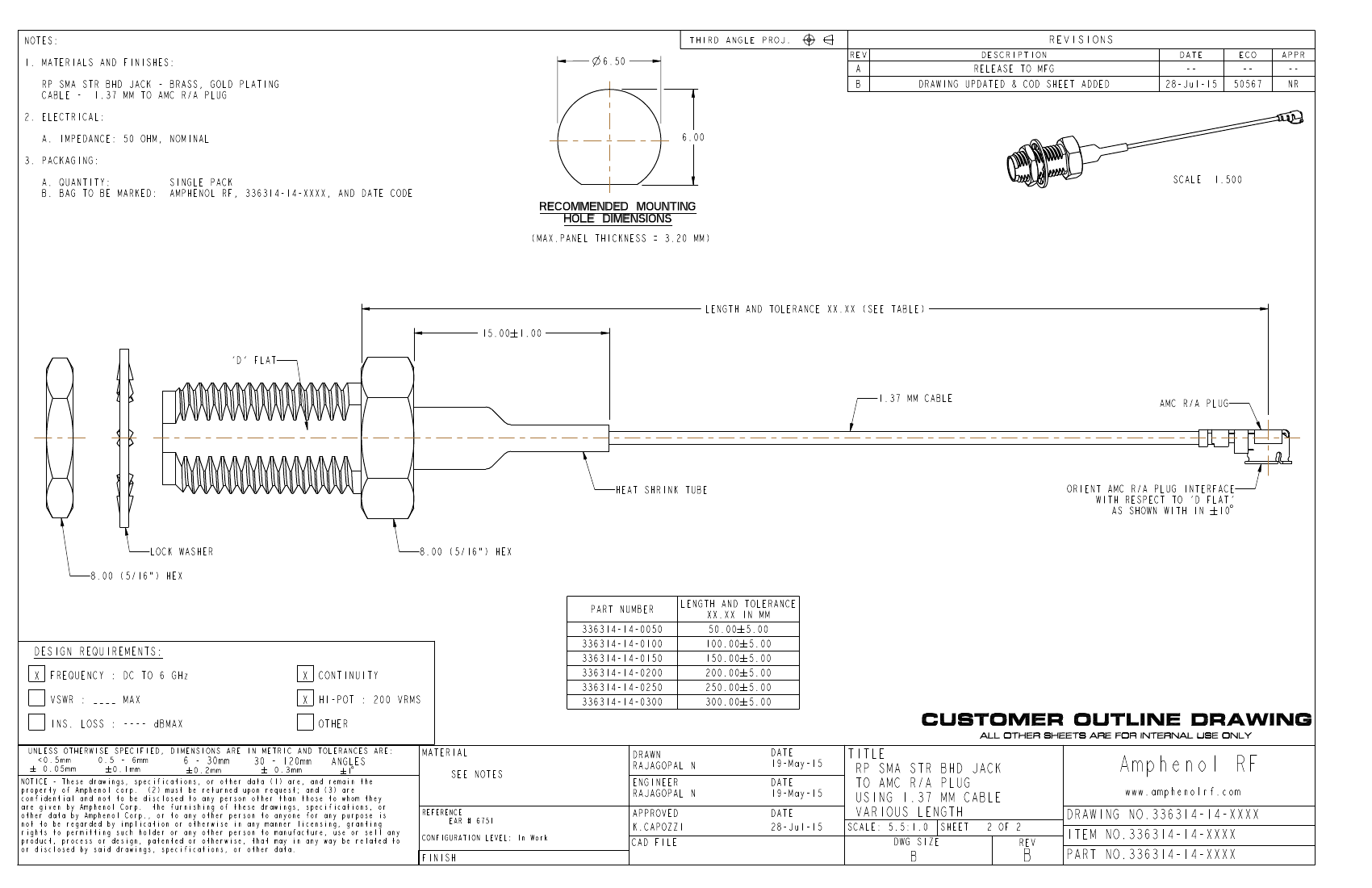

NOTES:

1. PACKAGE CABLE ASSEMBLIES IN A BAG. LABEL BAG WITH AMPHENOL RF,

336314-14-XXXX AND DATE CODE.

THIRD ANGLE PROJ.

REV

REVISIONS

RELEASE TO MFG

DESCRIPTION

DATE

2. CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT, CONTINUITY, SHORTS AND OPEN.

3. APPROVED VENDOR: GOLDENLOCH

DRAWING UPDATED & COD SHEET ADDED

28-Jul-15

ECO

50567

APPR

SCALE

1.500

FOR PURCHASING AND

INSPECTION USE ONLY

DESIGN REQUIREMENTS:

FREQUENCY : DC TO 6 GHz

VSWR : ____ MAX

INS. LOSS : ---- dBMAX

CONTINUITY

HI-POT : 200 VRMS

OTHER

MATERIAL

DRAWN

RAJAGOPAL N

ENGINEER

RAJAGOPAL N

REFERENCE

EAR # 6751

CONFIGURATION LEVEL: In Work

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:

<0.5mm

0.5 - 6mm

6 - 30mm

30 - 120mm

ANGLES

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon request; and (3) are

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the furnishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implication or otherwise in any manner licensing,

granting

rights to permitting such holder or any other person to manufacture, use or

sell any

product, process or design, patented or otherwise, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

DATE

19-May-15

DATE

19-May-15

DATE

28-Jul-15

FINISH

CAD FILE

APPROVED

K.CAPOZZI

TITLE

RP SMA STR BHD JACK

TO AMC R/A PLUG

USING 1.37 MM CABLE

VARIOUS LENGTH

SCALE: 5.5:1.0

DWG SIZE

SHEET

Amphenol RF

www.amphenolrf.com

1 OF 2

DRAWING NO. 336314-14-XXXX

REV

ITEM NO. 336314-14-XXXX

PART NO. 336314-14-XXXX

336314-14-0200 Related Products

	336314-14-0200	336314-14-0100	336314-14-0300	336314-14-0250	336314-14-0050	336314-14-0150
Description	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.37mm cable, 200 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.37mm cable, 100 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.37mm cable, 300 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.37mm cable, 250 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.37mm cable, 50 mm	RF Cable Assemblies SMA RP BH Jk-AMC Plg 1.37mm cable, 150 mm
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Details	Details	Details	Details	Details	Details
Connector A Series	SMA	SMA	SMA	SMA	SMA	SMA-RP Reverse Polarity
Connector A Gender	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector B Gender	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Length	200 mm	100 mm	300 mm	250 mm	50 mm	150 mm
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Cable Type	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Color	Black	Black	Black	Black	Black	Black
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass
Connector A Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Factory Pack Quantity	1	1	1	1	1	1
