NK4106MFBL: DescriptionWire Ducting NK 4-port screw mount 106 dupl mod; CategoryWire/cable; File Size142KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

NK4106MFBL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NK4106MFBL	-	-	View	Buy Now

NK4106MFBL Overview

Wire Ducting NK 4-port screw mount 106 dupl mod

NK4106MFBL Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panduit
Product Category	Wire Ducting
RoHS	Details
Type	Module Frames
Color	Black
Duct External Width	38.1 mm
Duct External Height	13.2 mm
Family	NetKey "106" Duplex and Rectangular Module Frames
Features	Accepts all NetKey Keystone Copper Modules and recommended Duplex Fiber Optic Modules
Factory Pack Quantity	1
Unit Weight	0.862400 oz

Preview

Download Datasheet

View All

2

1

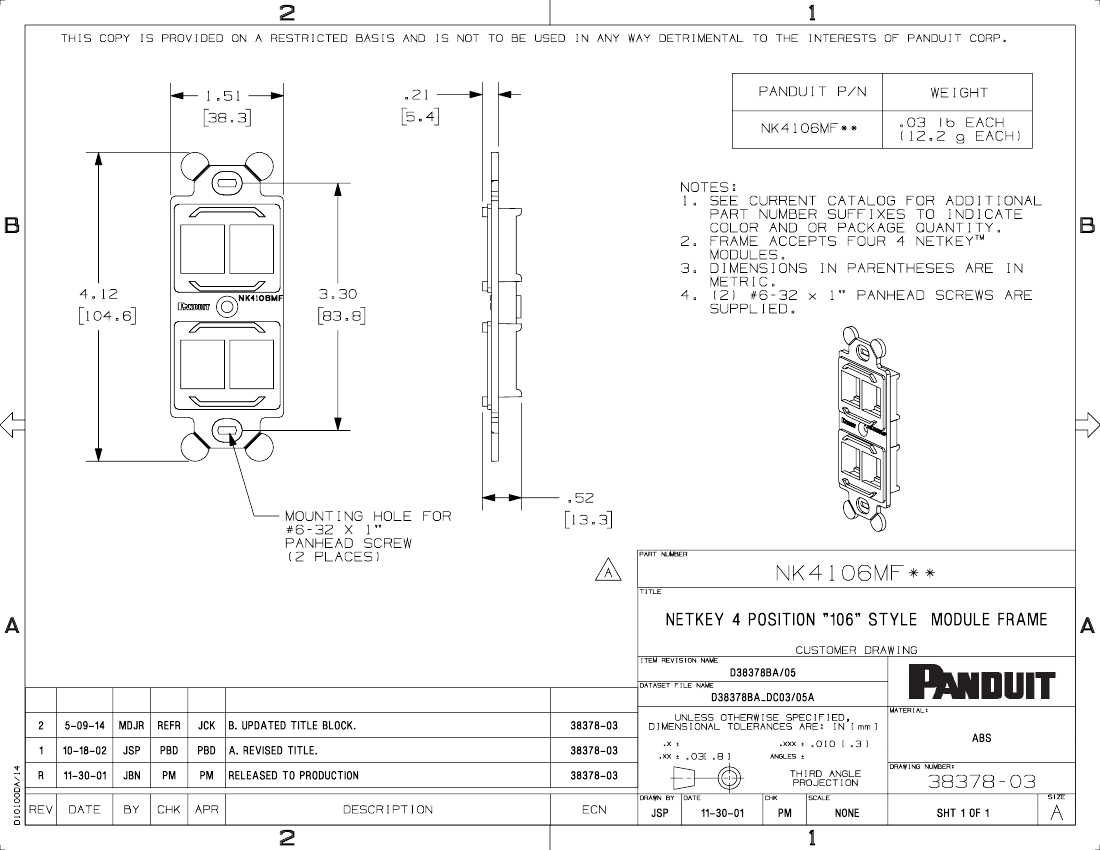

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

1.51

38.3

.21

5.4

PANDUIT P/N

NK4106MF**

WEIGHT

.03 lb EACH

(12.2 g EACH)

B

4.12

104.6

3.30

83.8

NOTES:

1. SEE CURRENT CATALOG FOR ADDITIONAL

PART NUMBER SUFFIXES TO INDICATE

COLOR AND OR PACKAGE QUANTITY.

2. FRAME ACCEPTS FOUR 4 NETKEY

TM

MODULES.

3. DIMENSIONS IN PARENTHESES ARE IN

METRIC.

4. (2) #6-32 x 1" PANHEAD SCREWS ARE

SUPPLIED.

B

.52

MOUNTING HOLE FOR

#6-32 X 1"

PANHEAD SCREW

(2 PLACES)

13.3

PART NUMBER

A

TITLE

NK4106MF**

NETKEY

4

POSITION

"106"

STYLE

MODULE

FRAME

CUSTOMER DRAWING

ITEM REVISION NAME

A

D38378BA/05

DATASET FILE NAME

D38378BA_DC03/05A

MATERIAL:

2

1

D10100DA/14

5-09-14

10-18-02

11-30-01

DATE

MDJR

REFR

JCK

PBD

B.

UPDATED

TITLE

BLOCK.

38378-03

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.X

.XX

.XXX

JSP

JBN

PBD

A.

REVISED

TITLE.

RELEASED

TO

PRODUCTION

.010 [.3]

DRAWING NUMBER:

ABS

.03[.8]

ANGLES

R

PM

THIRD ANGLE

PROJECTION

DRAWN BY

DATE

CHK

SCALE

38378-03

SIZE

REV

BY

CHK

APR

DESCRIPTION

ECN

JSP

11-30-01

PM

NONE

SHT

1

OF

1

A

2

1
