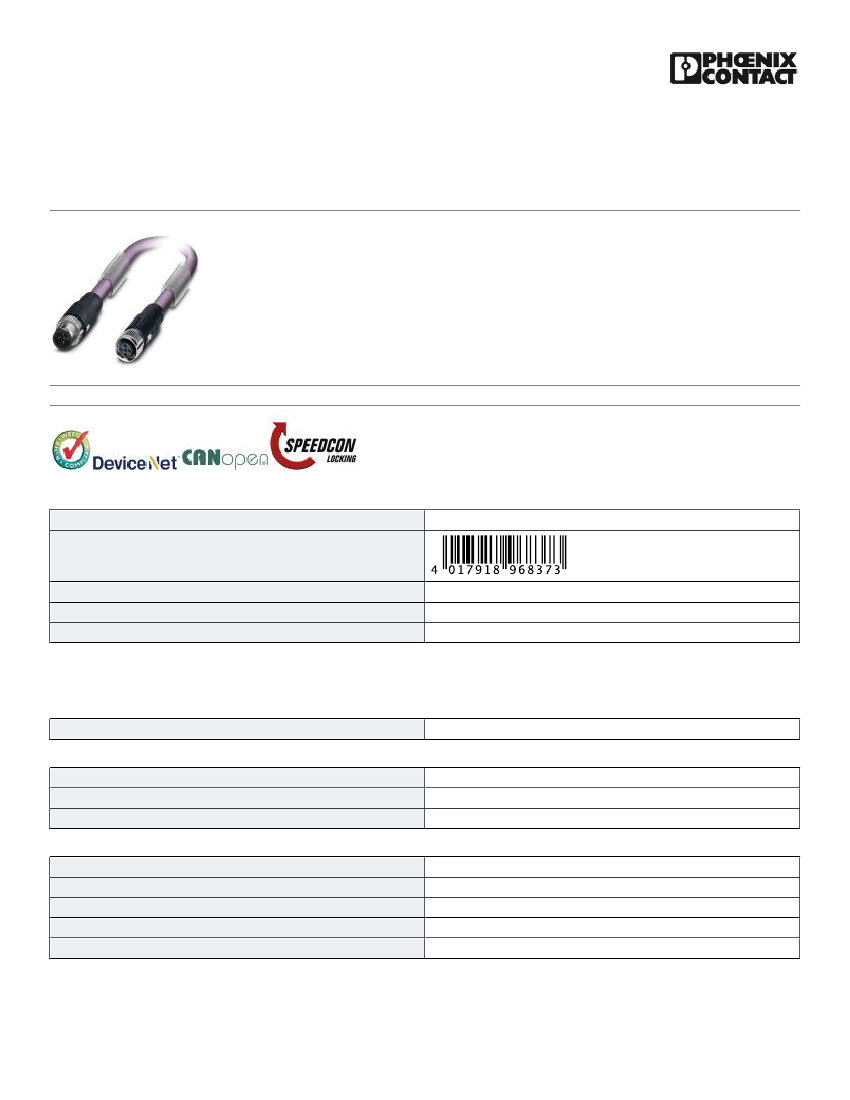

Bus system cable - SAC-5P-MS/ 0,3-920/FS SCO - 1518258
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bus system cable, CANopen , DeviceNet™, 5-position, PUR halogen-free, violet RAL 4001, shielded, Plug
straight M12 SPEEDCON, A-coded, on Socket straight M12 SPEEDCON, A-coded, Cable length: 0.3 m
®
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
54.3 g
85444290
Poland
1 pc
Technical data
Dimensions
Length of cable
0.3 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
4A
60 V
5
≥ 100 MΩ
A - standard
04/14/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/1518258
Bus system cable - SAC-5P-MS/ 0,3-920/FS SCO - 1518258
Technical data
General
Signal type/category
Status display
Overvoltage category
Degree of pollution
Torque
CANopen
No
II
3
0.4 Nm (M12 connector)
®
DeviceNet™
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Pin assignment
Position = wire color (signal) = position (optional)
1 (Plug) = SR (shield) = 1 (Socket)
2 (Plug) = RD (V+) = 2 (Socket)
3 (Plug) = BK (V-) = 3 (Socket)
4 (Plug) = WH (CAN_H) = 4 (Socket)
5 (Plug) = BU (CAN_L) = 5 (Socket)
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Cable structure
Conductor cross section
CAN Bus/DeviceNet
920
21198 (80°C/300 V)
2xAWG24/19+2xAWG22/19
2x 0.25 mm² (Data cable)
2x 0.34 mm² (Power supply)
1x 0.34 mm² (Drain wire)
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
24
22
19x 0.13 mm
19x 0.15 mm
1.95 mm ±0.05 mm (Data cable)
04/14/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/1518258
Bus system cable - SAC-5P-MS/ 0,3-920/FS SCO - 1518258
Technical data
Cable
1.4 mm ±0.05 mm (Power supply)
Wire colors
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Cable capacity
Wave impedance
Wave attenuation
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Red-black, blue-white
2 cores to the pair
Plastic-coated aluminum foil, aluminum side outside
2 pairs around a drain wire in the center to the core
Tinned copper braided shield
80 %
violet RAL 4001
6.7 mm ±0,3 mm
10 x D
5000000
70 mm
4.5 m
3 m/s
3 m/s²
PUR
Foamed PE (Data cable)
PE (Power supply)
Tin-plated Cu litz wires
≥ 5 GΩ*km (Data cable)
≥ 5 GΩ*km (Power supply)
≤ 90.9 Ω/km (Data cable)
≤ 57.4 Ω/km (Power supply)
nom. 40 pF/m (Data cable)
120 Ω ±10 % (with 1 MHz)
≥ 0.0229 dB/m (with 1 MHz)
≤ 300 V (Peak value, not for high-power applications)
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
UL 1581, Sec. 1060 (FT-1)
IEC 60332-1
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Halogen-free
Other resistance
Ambient temperature (operation)
in accordance with DIN VDE 0472 part 815
According to IEC 60754-1
Low adhesion
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
04/14/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/1518258
Bus system cable - SAC-5P-MS/ 0,3-920/FS SCO - 1518258
Technical data
Cable
≤ 70 °C (cable, drag chain applications)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27060306
27060306
27061801
27061801
27061801
27061801
27279218
27060311
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
EAC
Ex Approvals
04/14/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/1518258
Bus system cable - SAC-5P-MS/ 0,3-920/FS SCO - 1518258
Approvals
Approvals submitted
Approval details
EAC

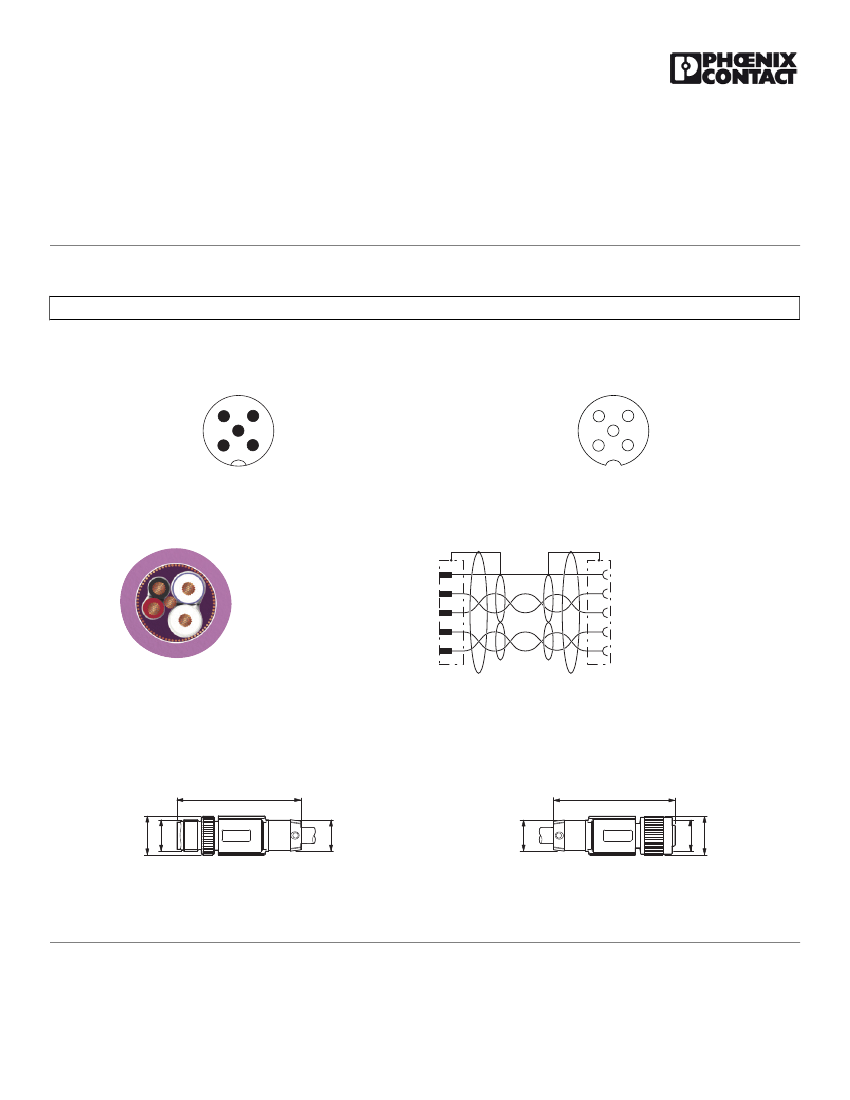

Drawings
Schematic diagram
4
5
3
Schematic diagram
3
5
4
1
2
2
1
Pin assignment M12 male connector, 5-pos., A-coded, male side
Pin assignment M12 socket, 5-pos., A-coded, socket side view
Cable cross section
Circuit diagram
1
2
3
4
5
1 --- (Drain)
2 RD (V+)
3 BK (V-)
4 WH (CAN_H)
5 BU (CAN_L)
CAN Bus/DeviceNet [920]
Contact assignment of the M12 connector and the M12 socket
Dimensional drawing
Dimensional drawing
47,3
44,5
Ø14,8
M12
M12
Ø12
Ø12
Plug, M12 x 1, straight, shielded
M12 x 1 socket, straight, shielded
04/14/2016 Page 5 / 6
Ø15
