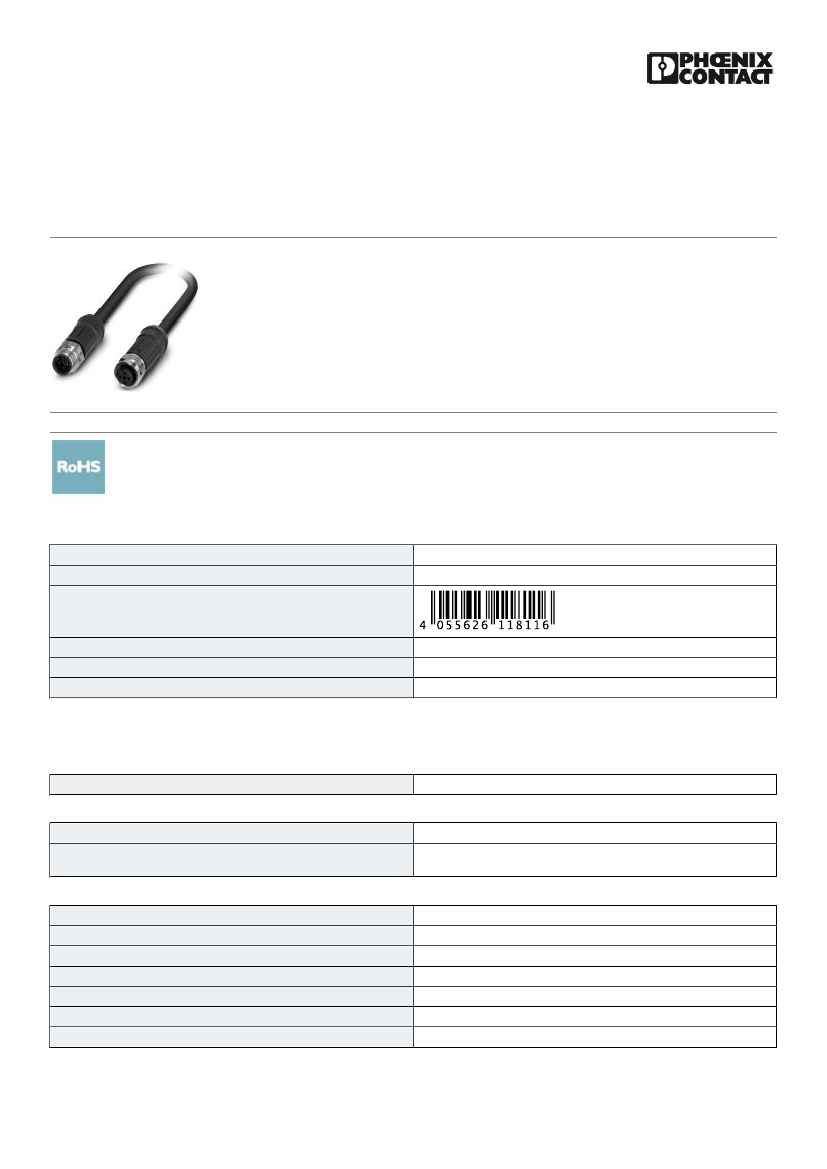

Sensor/Actuator cable - SAC-4P-M12MS/100-28X/FSSHOD
HT - 1417631
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 4-position, PE-X/PE-X, black-gray RAL 7021, Plug straight M12, A-coded, on Socket
straight M12, A-coded, Cable length: 100 m, for outdoor applications, with high-grade steel knurl
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4055626118116
85444290
Made to Order (non-returnable)
1 STK
10 STK
Technical data
Dimensions
Length of cable
100 m
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C (Plug / socket)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC
60512-11-4))
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
4A
250 V
4
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1417631
Sensor/Actuator cable - SAC-4P-M12MS/100-28X/FSSHOD
HT - 1417631
Technical data
General
Degree of pollution
Insertion/withdrawal cycles
Torque
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Color
V0
CuSn
Ni/Au
PP
PP
Stainless steel
FPM
black
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
PE-X black
28X
Li2X2X-C-Vl-2X
4x 0.5 mm² (Signal line)
20
28x 0.15 mm
1.6 mm ±0.05 mm (Signal line)
approx. 0.3 mm (Core insulation)
approx. 0.7 mm (Outer cable sheath)
approx. 0.45 mm (Inner sheath)
Wire colors
Overall twist
Length of twist, overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
brown, white, blue, black
4 wires, twisted
108.8 mm
Braided copper wires
85 %
black-gray RAL 7021
6.8 mm ±0.2 mm
34 mm
68 mm
1000000
68 mm
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1417631
Sensor/Actuator cable - SAC-4P-M12MS/100-28X/FSSHOD
HT - 1417631
Technical data
Cable
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Halogen-free
Resistance to oil
Other resistance
Ambient temperature (operation)
10 m
3 m/s
10 m/s²
74 kg/km
PE-X
PE-X
PE-X
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
≤ 39 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC
According to DIN 60332-1-2
According to DIN EN 50266-2-5
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
UV resistant According to DIN VDE 0276-605
-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)

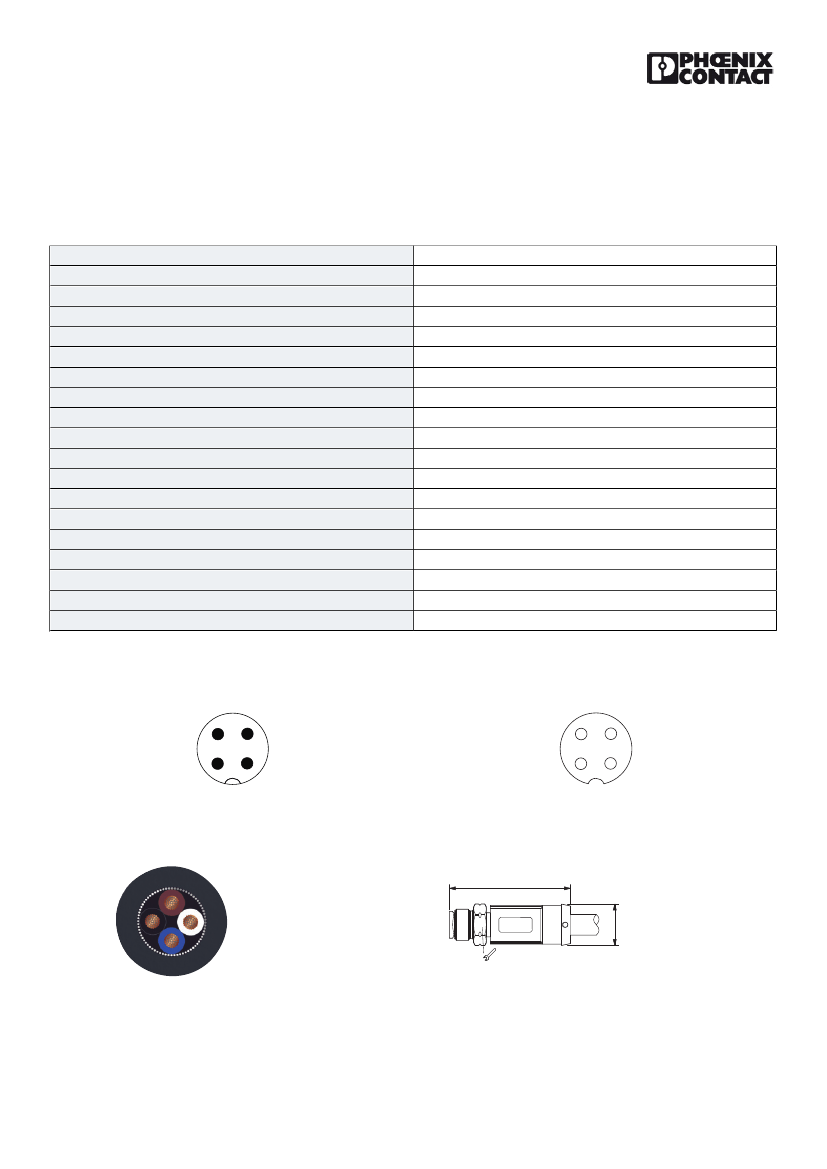

Drawings
Schematic diagram
4
3
Schematic diagram
3
4
1
2
2
1
Pin assignment M12 plug, 4-pos., A-coded, view plug side
Pin assignment M12 socket, 4-pos., A-coded, view female side
Cable cross section
Dimensional drawing
46,8
14
PE-X black [28X]
M12 x 1 plug, straight
Ø16
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1417631
Sensor/Actuator cable - SAC-4P-M12MS/100-28X/FSSHOD
HT - 1417631
Dimensional drawing
44
1
1
4
3
2
Circuit diagram
Ø16
4
3
14
2
M12 x 1 socket, straight
Contact assignment of the M12 connector and the M12 socket
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
