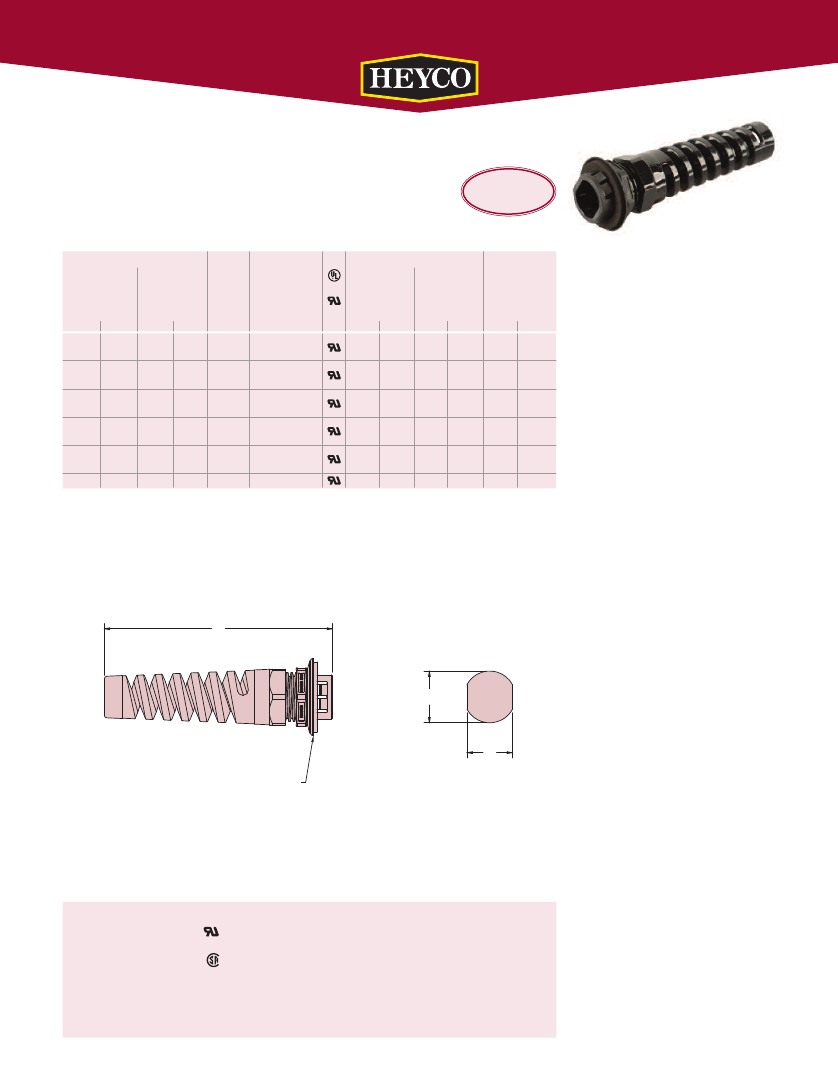

Liquid Tight Cordgrips
Heyco -Tite
Snap-In-2 Liquid Tight
Cordgrips
Pigtail
™
, Snap-In Hubs
For Panels from .062˝ (1,6 mm) to .125˝ (3,2 mm) Thick
The Ultimate in Liquid Tight Strain Relief Protection
CABLE DIA. RANGE
Minimum
Maximum
PART NO.
Black
DESCRIPTION
or
PANEL DIMENSIONS
A
Mounting
Hole Dia.
in.
mm.
B
To Prevent
Rotation
in.
®
®
NO LOCKNUT
REQUIRED!
C
Max. O.A.
Length
in.
mm.
in.
mm.
in.
mm.
mm.
.065
.115
.065
.105
.069
.230
.095
.170
.180
.260
.485
1,7
2,9
1,7
2,7
1,8
5,8
2,4
4,3
4,6
6,6
12,3
.210
.250
.230
.315
.250
.395
.260
.450
.440
.546
.709
5,3
6,4
5,8
8,0
6,4
10,0
6,6
11,4
11,2
13,9
18,0
M3862
M3860
M3868
M3866
M3874
M3872
M3880
M3878
M3886
M3884
M3896
Flex LTRSCG 500
Flex LTSCG 500
Flex LTRSCG 625
Flex LTSCG 625
Flex LTRSCG 750
Flex LTSCG 750
Flex LTRSCG 875
Flex LTSCG 875
Flex LTRSCG 1000
Flex LTSCG 1000
Flex LTSCG 1125
.500
.625
.750
.875
1.000
1.125
12,7
15,9
19,1
22,2
25,4
28,6
.450
.550
.660
.770
.875
1.000
11,4
14,0
16,8
19,6
22,2
25,4
2.50
2.83
3.46
3.86
4.32
4.90
63,5
71,9
87,9
98,0
109,7
124,5
Standard color black.
C
A
•
Integral nylon spring eases the cable
into a lazy bend; prevents kinking and
assures longest cable and product life.
•
Easy installation–unique fingers
securely snap into a range of panel
thicknesses – up to .125˝ (3,2 mm) –
with no tools or locknuts required.
•
Sealing flange prevents sealing
washer displacement due to water
velocity to ensure a liquid tight
IP 65 seal.
•
Eliminate need for locknut or
threaded hole to achieve liquid tight
seal at panel; perfect for low clearance
installation where locking nut access
is limited.
•
Ratchet design of sealing nut
assembly provides superior anti-
vibration and ensures a firm grip
on the cable.
•
Foam washer included.
•
Rotation prevented when used in
“Double D” mounting holes.
•
Available in multiple sizes for flexible
cord diameters ranging from
.065˝ (1,7 mm) to .709˝ (18,0 mm).
•
We recommend using the fitting with
the smallest maximum diameter that
will fit your application.
•
Consult Heyco for cordgrips molded
in other colors.
B
SEALING FLANGE/
WASHER CONSTRUCTION
SUGGESTED
CLEARANCE HOLE
FOR NONTHREADED
MOUNTING
Material
Certifications
Flammability Rating
Temperature Range
IP Rating
Nylon 6/6 w/Buna N or TPE Sealing Gland
Recognized under Components Program of Underwriters’ Laboratories
File E51579
Certified by Canadian Standard Association File 93876C
94V-2
Static -40°F (-40°C) to 239°F (115°C)
Dynamic -4°F (-20°C) to 212°F (100°C)
IP 65
Quick
Specs
3-12
