Sensor/Actuator cable - SAC-3P-M12MS/14,0-PUR/M 8FR SH - 1402359
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12, A-
coded, on Socket angled M8, Cable length: 14 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356607131
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
14 m
Ambient conditions
Degree of protection
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
4A
60 V
3
≥ 100 MΩ
A - standard
No
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
HB
CuSn
Ni/Au
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1402359
Sensor/Actuator cable - SAC-3P-M12MS/14,0-PUR/M 8FR SH - 1402359
Technical data
Material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
PUR halogen-free black
PUR
Li9Y-V1-C-V1-11Y
20549
3x 0.25 mm² (Signal line)
24
32x 0.10 mm
1.17 mm ±0.02 mm (Signal line)
≥ 0.21 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
brown, blue, black
3 wires, twisted
Braided copper wires
85 %
black-gray RAL 7021
5 mm ±0.2 mm
25 mm
50 mm
4000000
50 mm
10 m
3 m/s
10 m/s²
33 kg/km
PUR
PP
Bare Cu litz wires
≥ 100 GΩ*km
max. 79 Ω/km
300 V
3000 V
Flexible cable conduit capable
Silicone-free
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1402359
Sensor/Actuator cable - SAC-3P-M12MS/14,0-PUR/M 8FR SH - 1402359
Technical data
Cable
Free of substances which would hinder coating with paint or varnish
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

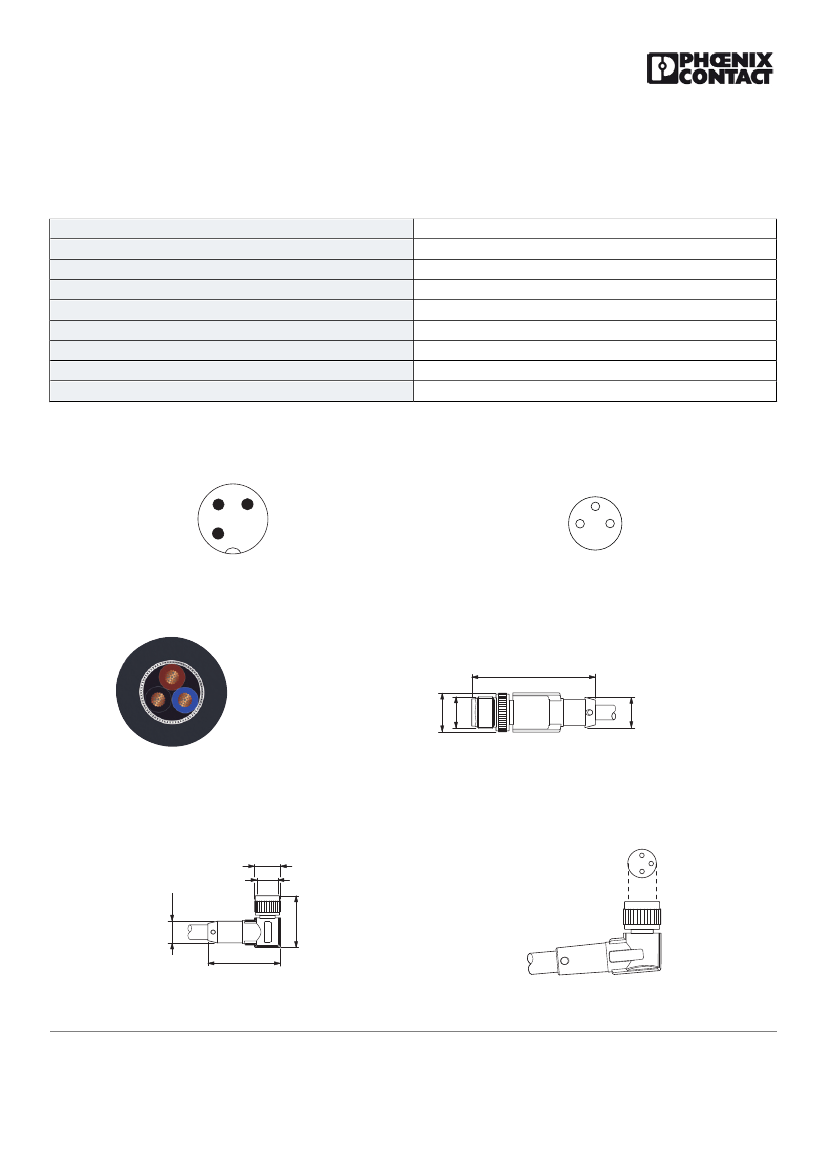

Drawings
Schematic diagram
4
3
Schematic diagram
4
3
1
1
Pin assignment M12 plug, 3-pos., A-coded, view male side
Pin assignment M12 socket, 3-pos., A-coded, view female side
Cable cross section
Dimensional drawing
47,3
Ø14,8
M12
PUR halogen-free black [PUR]
Plug, M12 x 1, straight, shielded
Dimensional drawing
Ø10
M8
Schematic diagram
Ø8,4
28
Socket M8 x 1, angled, shielded
19,2
Layout of connector pin assignments
Ø12
11/13/2016 Page 3 / 4
