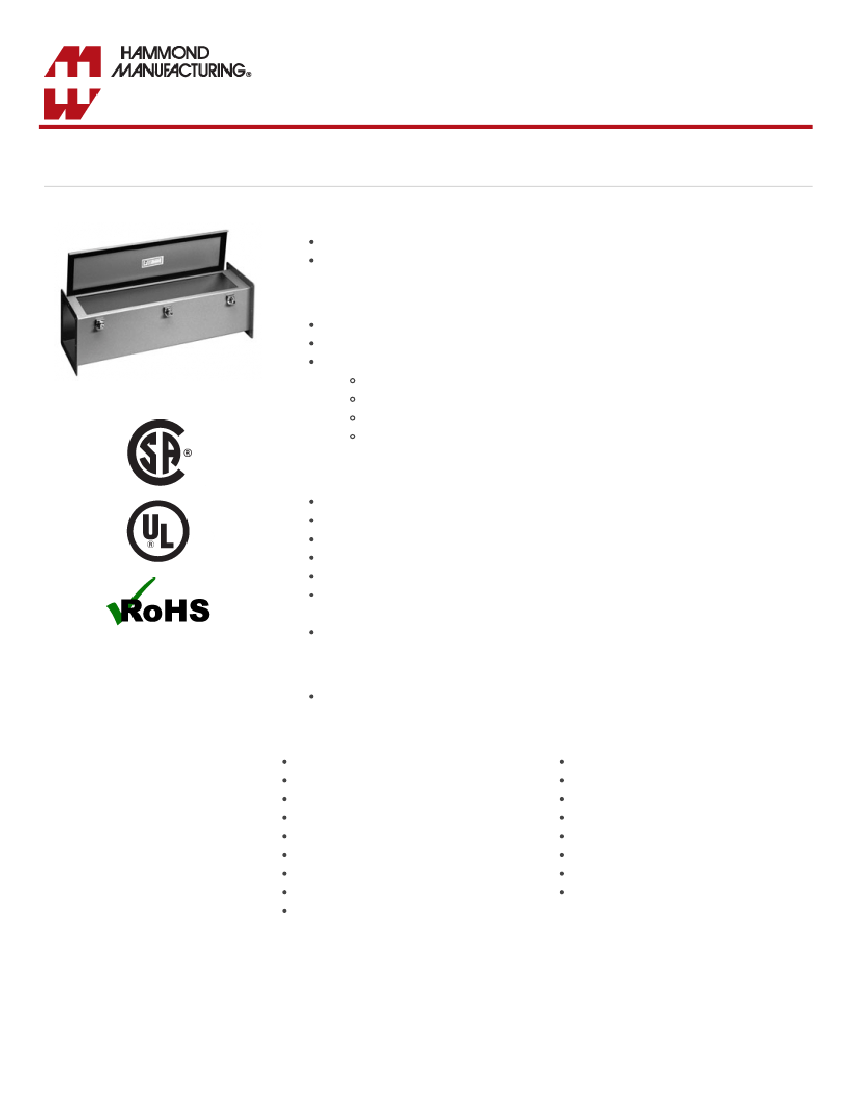

Type 12 Pull Through Wireway
1487 Series
Wireway & Accessories
Application
Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
Ideal for connecting machines to control panels or power sources.
Standards
UL 870 Type 1 (unless marked¹)
CSA Type 1 (unless marked¹)
Complies with
NEMA Type 12
JIC EMP-1-1967
JIC EGP-1-1967
IEC 60529, IP54
Construction
Bodies and covers are formed from 14 gauge steel with 10 gauge steel flanges.
Smooth continuously welded seams.
Interior surfaces are smooth to prevent wire damage during installation.
Butt hinged covers are secured with easily operated screw clamps.
Oil resistant gaskets are permanently secured.
Solid oil resistant gaskets are used between flanges when sections and fittings are bolted
together.
One gasket kit, complete with hardware is provided with each straight section or fitting.
Finish
Sections and fittings are finished in ANSI 61 gray.
Accessories
Barrier Kit
Swivel Nipple
Adjustable Fitting
90 degree Elbow
22.5 degree Elbow
Box Connector
Bracket Hanger
Cover Plate
Reducers (Edge Hole)
Nipple
Flexible Fitting
Cut-Off Fitting (Lay-In)
45 degree Elbow
Tee Fitting
Drop Hanger
Cross Fitting
Reducers (Center Hole)
https://www.hammfg.com/electrical/products/wireway/1487
1/3
5/30/2018
Type 12 Pull Through Wireway (1487 Series) - Hammond Mfg.

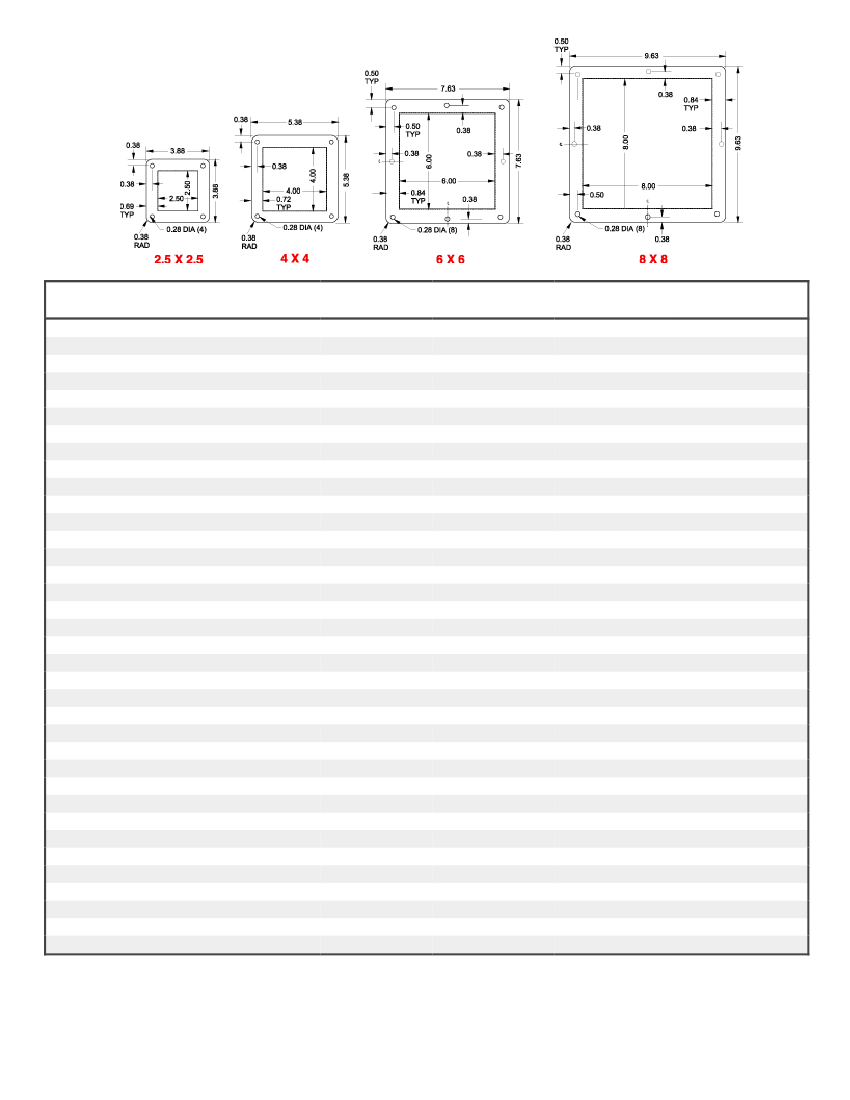

2.5 x 2.5
Description
12" Section
24" Section
36" Section
48" Section
60" Section
120" Section
60" Long Partition (Barrier)
1" Nipple
2" Nipple
3" Nipple
6" Nipple
Box Entry Swivel Nipple
Standard Swivel Nipple
Flexible Fitting
Adjustable Fitting
Cut-Off Fitting
90° Elbow
45° Elbow
22.5° Elbow
Tee Fitting
Cross Fitting
Center Hole Reducers
Reducer - 4 x 4 to 2.5 x 2.5
Reducer - 6 x 6 to 4 x 4
Reducer - 8 x 8 to 4 x 4
Reducer - 8 x 8 to 6 x 6
Edge Hole Reducers
Reducer 4 x 4 to 2.5 x 2.5
Reducer 6 x 6 to 4 x 4
Reducer 8 x 8 to 4 x 4
Reducer 8 x 8 to 6 x 6
Box Connector
Drop Hanger
Bracket Hanger
Cover Plate
Gasket & Screws
¹ Does not meet CSA or UL requirements
² Maintains ratings on CSA and UL approved wireway
-
-
-
-
1487BK¹
1485BL1¹
1485BL2¹
1487BH²
1487BS¹
-
-
-
-
Part No.
1487B12
1487B24
1487B36
1487B48
1487B60
1487B120
-
1487BM1
1487BM2
1487BM3
1487BM6
1487BV1
1487BV2
1485BFF¹
1487BX¹
1487BW¹
1487B9P
1487B4P
1487B2P
1487BT
1487BY
4x4
Part No.
1487C12
1487C24
1487C36
1487C48
1487C60
1487C120
1487CB60¹
1487CM1
1487CM2
1487CM3
1487CM6
1487CV1
1487CV2
1485CFF¹
1487CX¹
1487CW¹
1487C9P
1487C4P
1487C2P
1487CT
1487CY
1487CRC²
-
-
-
1487CRE²
-
-
-
1487CK¹
1485CL1¹
1485CL2¹
1487CH²
1487CS¹
6x6
Part No.
1487D12
1487D24
1487D36
1487D48
1487D60
1487D120
1487DB60¹
1487DM1
1487DM2
1487DM3
1487DM6
1487DV1
1487DV2
1485DFF¹
1487DX¹
1487DW¹
1487D9P
1487D4P
1487D2P
1487DT
1487DY
-
1487DRC²
-
-
-
1487DRE²
-
-
1487DK¹
1485DL1¹
1485DL2¹
1487DH²
1487DS¹
8x8
Part No.
1487E12
1487E24
1487E36
1487E48
1487E60
1487E120
1487EB60¹
1487EM1
1487EM2
1487EM3
1487EM6
1487EV1
1487EV2
1485EFF¹
1487EX¹
1487EW¹
1487E9P
1487E4P
1487E2P
1487ET
1487EY
-
-
1487ERCC²
1487ERCD²
-
-
1487EREC²
1487ERED²
1487EK¹
1485EL1¹
1485EL2¹
1487EH²
1487ES¹
