3021013-10: DescriptionUSB Cables / IEEE 1394 Cables A-B 26 AWG 10' BLK USB 2.0; CategoryWire/cable; File Size350KB，2 Pages; ManufacturerQualtek; Environmental Compliance

Download Datasheet Parametric View All

3021013-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3021013-10	-	-	View	Buy Now

3021013-10 Overview

USB Cables / IEEE 1394 Cables A-B 26 AWG 10' BLK USB 2.0

3021013-10 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Qualtek
Product Category	USB Cables / IEEE 1394 Cables
RoHS	Details
Product	USB Cables
Type	USB 2.0
Connector End A	USB Type A
Connector End A Pin Count	4 Position
Connector End B	USB Type B
Connector End B Pin Count	4 Position
Gender	Male / Male
Wire Gauge - AWG	28 AWG, 26 AWG
Length	10 ft
Color	Black
Factory Pack Quantity	50

Preview

Download Datasheet

View All

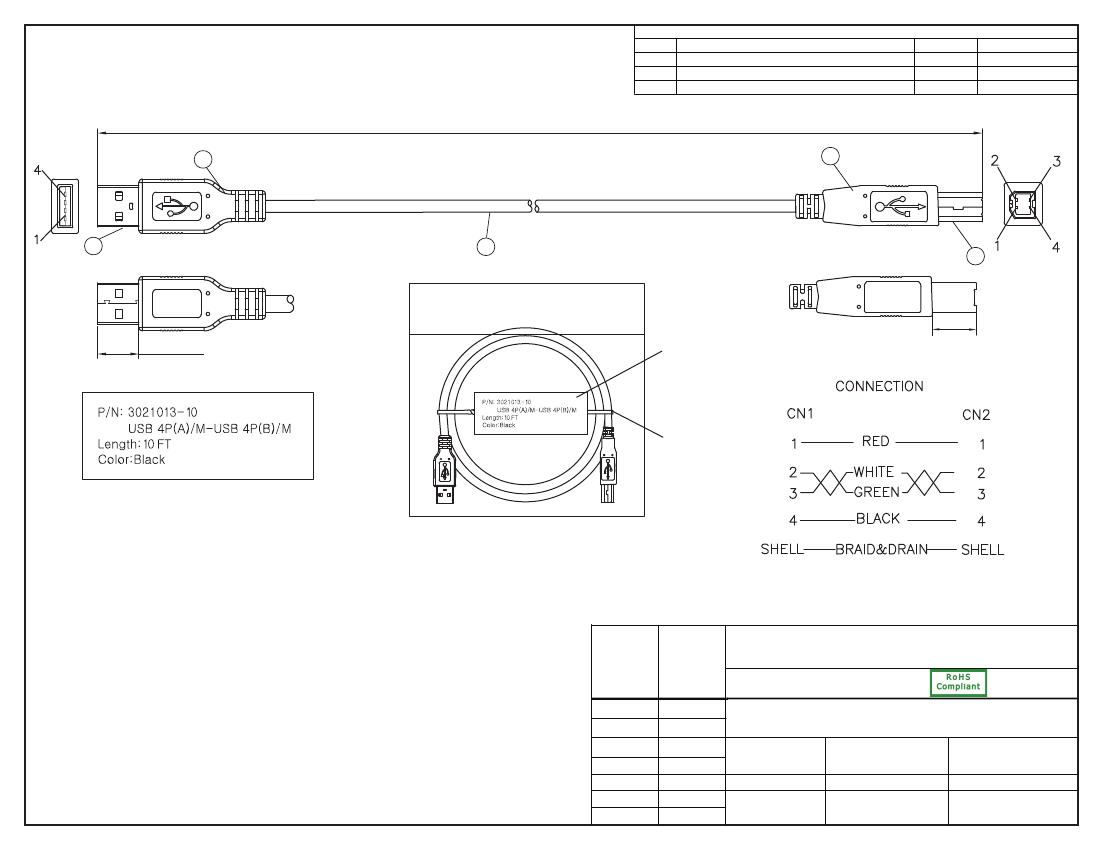

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK

ELECTRONICS AND NOT TO BE REPRODUCED FOR

OR COMMUNICATED TO A THIRD PARTY WITHOUT

THE EXPRESS WRITTEN PERMISSION OF AN OFFICER

OF QUALTEK ELECTRONICS.

3050 ± 80mm

REV.

REVISION

DESCRIPTION

Updated Specifications

DATE

02-09-12

APPROVED

CN1

CN2

11.75MIN

LABEL

12 ±

0.5

0.2

MINI TIE x2

NOTES:

1. CABLE: UL2725 26/28AWG

28AWGx1P+26AWGx2C+ AEB(AL) 65%

OUTER JACKET: BLACK, OD: 4.2 ± 0.2mm

2. CONNECTOR: USB A TYPE MALE

INSULATOR: WHITE PBT

PIN G/F

NICKEL PLATED SHELL

3. CONNECTOR: USB B TYPE MALE

INSULATOR: WHITE PBT

PIN G/F

NICKEL PLATED SHELL

4. PVC MOLDED: COLOR V398 45P BLACK

5. ELECTRICAL TEST:

<1>.100% OPEN SHORT & MISS WIRE TEST

<2>. INSULATION RESISTANCE: DC400V 10M ohm MIN.

<3>. CONDUCTOR RESISTANCE: 3 ohm MAX.

6. PACKING: 1PC/POLYBAG W/ LABEL

Dim

range

(mm)

0-1

1-6

6-18

18-50

50-120

120-250

250-500

Tolerance

+/-

(mm)

0.15

0.20

0.30

0.50

0.70

0.90

1.20

CONTROLLED

Qualtek Electronics Corp.

Part Number:

Description:

WCI DIVISION

3021013-10

USB 4P(A)/M - USB 4P(B)/M

UNIT: mm

REV. B

Approved / Date

JJH / 01-26-07

Drawn / Date

B. Grubb

01-26-07

Checked / Date

01-26-07
