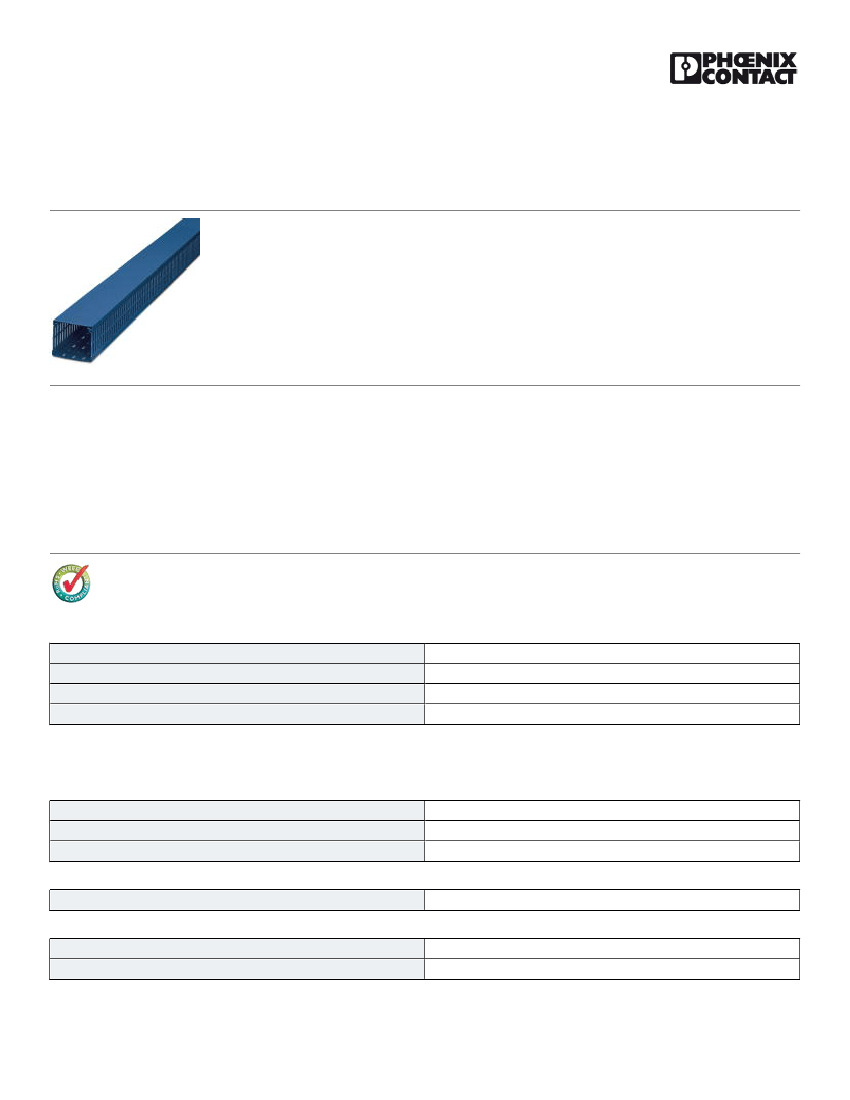

Cable duct - CD 80X40 BU - 3240318
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Wiring channel, blue, consisting of upper and lower part, width: 80 mm, height: 40 mm, length: 2000 mm
Product Features
■
■
■
■
■
■
Easy, burr-free cutting with minimum effort using the CUTFOX-CD cable duct cutter
Thanks to its leverage and special cutting geometry, the PPS CD cable duct cutter enables easy, burr-free cutting with minimum effort
Predetermined breaking point enables tool-free, burr-free removal of bars
The wide, diagonal heads of the cable duct bars make it easy to fit the cover and hold it securely in place
Installed conductors are securely held in place by means of wire retaining clips that can be snapped onto bars on the side
Plastic body-bound rivets enable easy fixing of cable ducts using the rivet setting tool
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
15 pc
39259020
Germany
Technical data
Dimensions
Length (b)
Width (a)
Height
2000 mm
80 mm
40 mm
Ambient conditions
Ambient temperature (operation)
-5 °C ... 60 °C
General
Color
Components
blue
Lead-free
04/22/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/3240318
Cable duct - CD 80X40 BU - 3240318
Technical data
General
Flammability rating according to UL 94
Material
V0
PVC
Standards and Regulations
Halogen-free
Connection in acc. with standard
Flammability rating according to UL 94
no
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140602
27140602
27140602
27140602
27400703
27400703
27400703
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000012
EC000012
EC000012
EC000012
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30101815
30101815
30101815
30101815
30101815
Approvals
Approvals
Approvals
UL Recognized / VDE Zeichengenehmigung / CSA
04/22/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/3240318
Cable duct - CD 80X40 BU - 3240318
Approvals
Ex Approvals
Approvals submitted
Approval details
UL Recognized
VDE Zeichengenehmigung
CSA
Accessories
Accessories
Cover
Cover profile - CD COVER 80 BU - 3240334
Cover for cable duct, blue, width: 80 mm, length: 2000 mm
Filler plug
Fastening clip - RVT-PA 4 - 3240498
Plastic body-bound rivet, for hole diameter of 4 mm and a material thickness of 1.5 ... 6 mm
04/22/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/3240318
Cable duct - CD 80X40 BU - 3240318

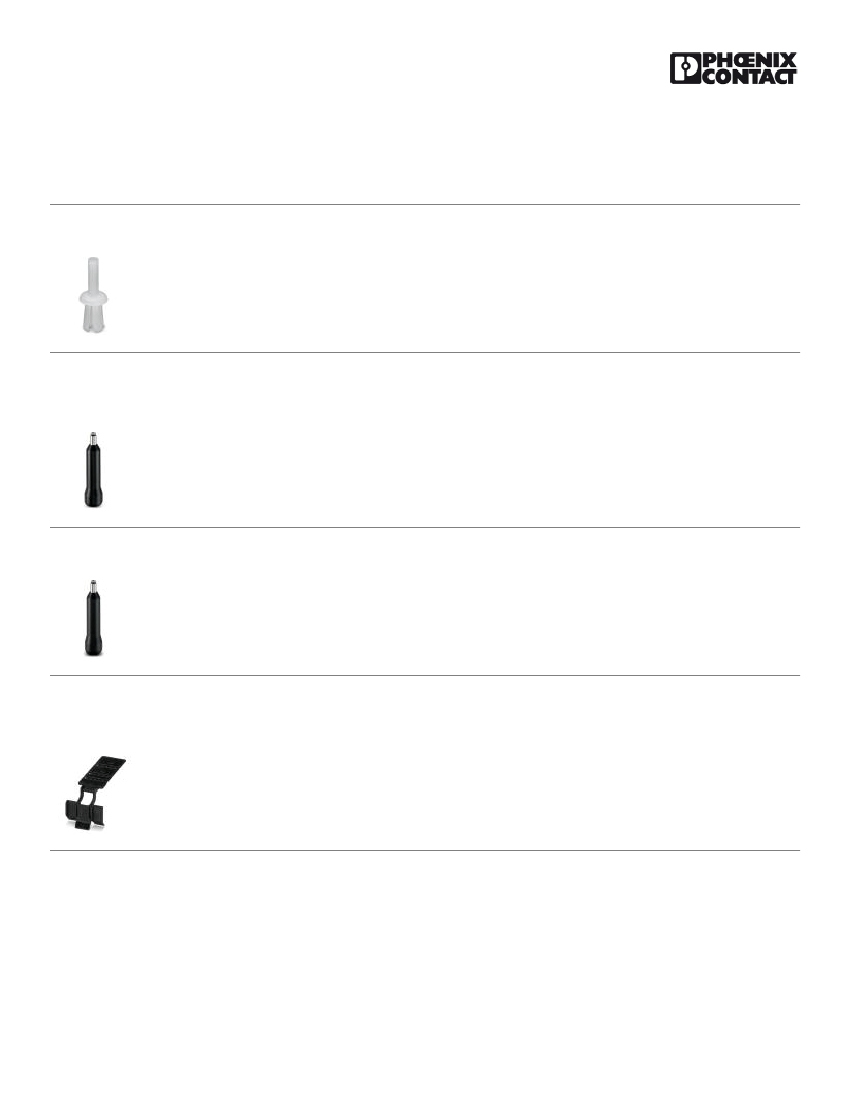

Accessories
Fastening clip - RVT-PA 6 - 3240499
Plastic body-bound rivet, for hole diameter of 6 mm and a material thickness of 1.5 ... 6 mm
Riveting tools
Tool - UNIFOX-RVT P 4 - 1212478
Rivet setting tool, for use with RVT-PA 4 plastic body-bound rivets
Tool - UNIFOX-RVT P 6 - 1212509
Rivet setting tool, for use with RVT-PA 6 plastic body-bound rivets
Wiring duct
Universal wire retaining clip - CD WR - 3240284
Universal wire holding bracket, perforated, for wiring channels
Drawings
04/22/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/3240318
Cable duct - CD 80X40 BU - 3240318
Dimensional drawing
6,8
6,5
10
2000
14
8
4,5
25
Base perforation according to DIN EN 50085
