6
5
4
3
2
1
L
Label, lot code + part numbers (X2)
D
D
Cable Fitting (x 2)
Plastic Version
Plug protective cover (x 2)
Plastic Version
PG9 Cable Gland (x 2)
Nickel Plated Brass Version
Plug Housing (x 2)
Nickel Plated Zinc Die-Cast Version
Coupling Ring (x 2)
Nickel Plated Zinc Die-Cast Version
Fiber optic cable: single mode
2 fiber indoor/outdoor breakout
Type OFNR; Jacket color: black
C
Cable Length
C
L
[Inches]
Meters
1m
± 0.05m
[39.37"
± 1.97"
]
2m
± 0.05m
[78.74"
± 1.97"
]
3m
± 0.05m
[118.11"
± 1.97"
]
4m
± 0.08m
[157.48"
± 3.15"
]
5m
± 0.08m
[196.85"
± 3.15"
]
6m
± 0.08m
[236.22"
± 3.15"
]
7m
± 0.08m
[275.59"
± 3.15"
]
8m
± 0.15m
[314.96"
± 5.91"
]
9m
± 0.15m
[354.33"
± 5.91"
]
10m
± 0.15m
[393.70"
± 5.91"
]
11m
± 0.15m
[433.07"
± 5.91"
]
12m
± 0.15m
[472.44"
± 5.91"
]
13m
± 0.15m
[511.81"
± 5.91"
]
14m
± 0.15m
[551.18"
± 5.91"
]
15m
± 0.15m
[590.55"
± 5.91"
]
16m
± 0.30m
[629.92"
± 11.81"
]
17m
± 0.30m
[669.29"
± 11.81"
]
18m
± 0.30m
[708.66"
± 11.81"
]
19m
± 0.30m
[748.03"
± 11.81"
]
20m
± 0.30m
[787.40"
± 11.81"
]
Part Number Max. IL
17-300330-01 0.20 dB
17-300330-02 0.20 dB
17-300330-03 0.20 dB
17-300330-04 0.20 dB
17-300330-05 0.20 dB
17-300330-06 0.20 dB
17-300330-07 0.20 dB
17-300330-08 0.20 dB
17-300330-09 0.20 dB
17-300330-10 0.21 dB
17-300330-11 0.21 dB
17-300330-12 0.21 dB
17-300330-13 0.21 dB
17-300330-14 0.21 dB
17-300330-15 0.21 dB
17-300330-16 0.21 dB
17-300330-17 0.21 dB
17-300330-18 0.21 dB
17-300330-19 0.21 dB
17-300330-20 0.21 dB
Cable Length
L
[Inches]
Meters
21m
± 0.30m
[826.77"
± 11.81"
]
22m
± 0.30m
[866.14"
± 11.81"
]
23m
± 0.30m
[905.51"
± 11.81"
]
24m
± 0.30m
[944.88"
± 11.81"
]
25m
± 0.30m
[984.25"
± 11.81"
]
26m
± 0.30m
[1023.62"
± 11.81"
]
27m
± 0.30m
[1062.99"
± 11.81"
]
28m
± 0.30m
[1102.36"
± 11.81"
]
29m
± 0.30m
[1141.73"
± 11.81"
]
30m
± 0.30m
[1181.10"
± 11.81"
]
31m
± 0.30m
[1220.47"
± 11.81"
]
32m
± 0.30m
[1259.84"
± 11.81"
]
33m
± 0.30m
[1299.21"
± 11.81"
]
34m
± 0.30m
[1338.58"
± 11.81"
]
35m
± 0.35m
[1377.95"
± 13.78"
]
36m
± 0.35m
[1417.32"
± 13.78"
]
37m
± 0.35m
[1456.69"
± 13.78"
]
38m
± 0.35m
[1496.06"
± 13.78"
]
39m
± 0.35m
[1535.43"
± 13.78"
]
40m
± 0.40m
[1574.80"
± 15.75"
]
Part Number Max. IL
0.22 dB
0.22 dB
0.22 dB
0.22 dB
17-300330-25
17-300330-26 0.22 dB
17-300330-27 0.22 dB
17-300330-28 0.22 dB
17-300330-29 0.22 dB
17-300330-30 0.22 dB
17-300330-31 0.22 dB
17-300330-32 0.22 dB
17-300330-33 0.22 dB
17-300330-34 0.22 dB
17-300330-35 0.22 dB
17-300330-36 0.23 dB
17-300330-37 0.23 dB
17-300330-38 0.23 dB
17-300330-39 0.23 dB
17-300330-40 0.23 dB
17-300330-21
17-300330-22
17-300330-23
17-300330-24
0.21 dB
Cable Length
L
[Inches]
Meters
41m
± 0.40m
[1614.17"
± 15.75"
]
42m
± 0.40m
[1653.54"
± 15.75"
]
43m
± 0.40m
[1692.91"
± 15.75"
]
44m
± 0.40m
[1732.28"
± 15.75"
]
45m
± 0.40m
[1771.65"
± 15.75"
]
46m
± 0.40m
[1811.02"
± 15.75"
]
47m
± 0.40m
[1850.39"
± 15.75"
]
48m
± 0.40m
[1889.76"
± 15.75"
]
49m
± 0.40m
[1929.13"
± 15.75"
]
50m
± 0.50m
[1968.50"
± 19.69"
]
51m
± 0.50m
[2007.87"
± 19.69"
]
52m
± 0.50m
[2047.24"
± 19.69"
]
53m
± 0.50m
[2208.33"
± 19.69"
]
54m
± 0.50m
[2125.98"
± 19.69"
]
55m
± 0.50m
[2165.35"
± 19.69"
]
56m
± 0.50m
[2204.72"
± 19.69"
]
57m
± 0.50m
[2244.09"
± 19.69"
]
58m
± 0.50m
[2283.46"
± 19.69"
]
59m
± 0.50m
[2322.83"
± 19.69"
]
60m
± 0.60m
Part Number Max. IL
17-300330-41
17-300330-42
17-300330-43
17-300330-44
17-300330-45
17-300330-46
17-300330-47
17-300330-48
17-300330-49
17-300330-50
17-300330-51
17-300330-52
17-300330-53
17-300330-54
17-300330-55
17-300330-56
17-300330-57
17-300330-58
17-300330-59
17-300330-60
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
0.24 dB
Tolerance
Cable Length
L
[Inches]
Meters
61m
± 0.60m
[2401.57"
± 23.62"
]
62m
± 0.60m
[2440.95"
± 23.62"
]
63m
± 0.60m
[2480.31"
± 23.62"
]
64m
± 0.60m
[2519.68"
± 23.62"
]
65m
± 0.60m
[2559.05"
± 23.62"
]
66m
± 0.60m
[2598.42"
± 23.62"
]
67m
± 0.60m
[2637.80"
± 23.62"
]
68m
± 0.60m
[2677.16"
± 23.62"
]
69m
± 0.60m
[2716.53"
± 23.62"
]
70m
± 0.70m
[2755.91"
± 27.56"
]
71m
± 0.70m
[2795.28"
± 27.56"
]
72m
± 0.70m
[2834.65"
± 27.56"
]
73m
± 0.70m
[2874.02"
± 27.56"
]
74m
± 0.70m
[2913.39"
± 27.56"
]
75m
± 0.70m
[2952.76"
± 27.56"
]
76m
± 0.70m
[2992.13"
± 27.56"
]
77m
± 0.70m
[3031.50"
± 27.56"
]
78m
± 0.70m
[3070.87"
± 27.56"
]
79m
± 0.70m
[3110.24"
± 27.56"
]
80m
± 0.80m
[3149.61"
± 31.50"
]
Part Number Max. IL
17-300330-61 0.25 dB
17-300330-62 0.25 dB
17-300330-63 0.25 dB
17-300330-64 0.25 dB
17-300330-65 0.25 dB
17-300330-66 0.25 dB
17-300330-67 0.25 dB
17-300330-68 0.25 dB
17-300330-69 0.25 dB
17-300330-70 0.25 dB
17-300330-71 0.25 dB
17-300330-72
17-300330-73
0.25 dB
0.25 dB
17-300330-74 0.25 dB
17-300330-75 0.25 dB
17-300330-76 0.25 dB
17-300330-77 0.25 dB
17-300330-78 0.25 dB
17-300330-79 0.25 dB
0.25 dB
B
B
[2362.21"
Customer:
Name
± 23.62"
]
17-300330-80
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
DOT NOT ALTER CAD DRAWING BY HAND
Unless otherwise specified
Scale: NTS
Autodesk
Inventor
Dim. in m [inches]
NOTES:
A
1. MAXIMUM CONNECTOR INSERTION LOSS (IL): 0.2dB,
PLUS CABLE ATTENUATION OF 0.78dB/km AT 1310nm
2. TEST DATA PROVIDED WITH EACH ASSEMBLY
A
B
FIBER PATH DETAIL
B
A
Title
Approval Date
2011
Draw.
Appd.
Norm
D-old
Date
Jul. 29
Jul. 29
Material: See Notes
Title:
Name
Vincent Ke
J. Chaudry

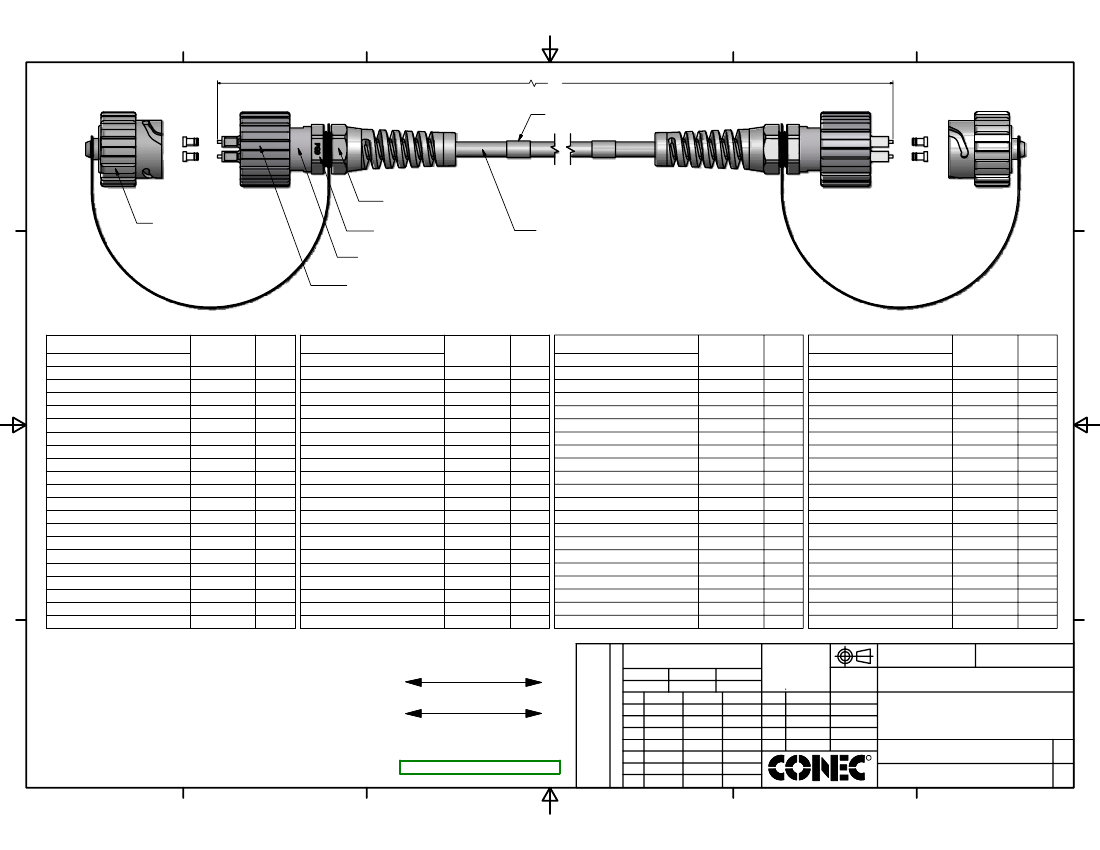

IP67 Industrial Duplex LC (ODVA)
Single Mode Fiber Optic Patch Cords
Nickel Plated Zinc Die-Cast Version
A
R
Drawing No.: 17K1A239
Part No.: SEE TABLE
DIN
Directive 2002/95/EC RoHS Compliant
A3
Sheet
a
Rev.
original
Changes
Date
Name
1/1
