855049

Description
SAW Filter, 1 Function(s), 160MHz
Categoryfilter
File Size34KB,1 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Environmental Compliance
Download Datasheet Parametric View All

855049 Online Shopping

Suppliers Part Number Price MOQ In stock
855049 - - View Buy Now

855049 Overview

SAW Filter, 1 Function(s), 160MHz

855049 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerQorvo
Reach Compliance Codecompliant
Center frequency or cutoff frequency (fo/fc)160 MHz
filter typeSAW FILTER
high1.96 mm
input resistance50 OHM
Maximum insertion loss25 dB
length19.2 mm
Manufacturer's serial number855049
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature80 °C
Minimum operating temperature
Output impedance50 OHM Ω
physical sizeL19.2XB6.63XH1.96 (mm)/L0.754XB0.261XH0.077 (inch)
width6.63 mm
Base Number Matches1

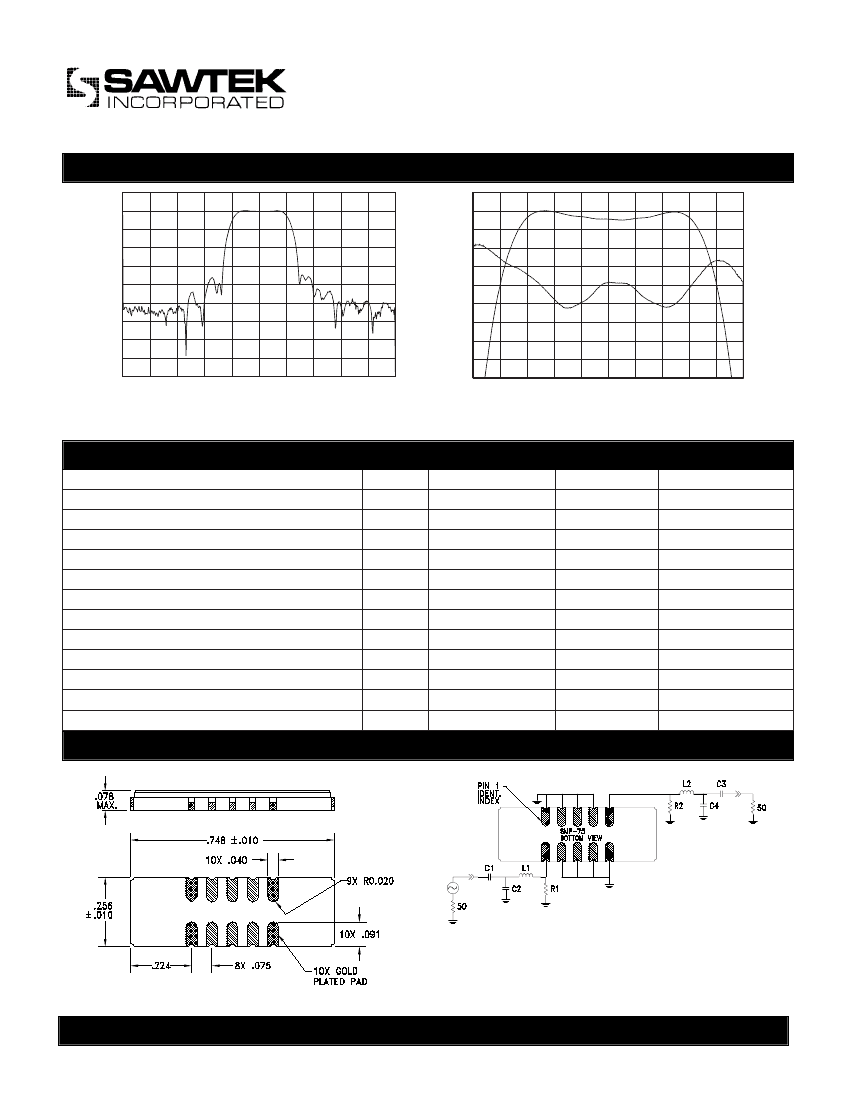

160 MHz CDMA SAW Filter
Data Sheet
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
156
156.8
157.6
1
0
-1
-2
-3
-4
-5
-6
-7
-8
-9
162.4
163.2
164
159.05
159.25
159.45
for Basestation Transmitter Applications
Part Number 855049
Typical Performance
10
8
6
4
2
0
-2
-4
-6
-8
-10
160.65
160.85
-
25
159.41
-
-
162.25
0.9
10
-
1.5:1
-
80
161.05
158.4
159.2
160.8
161.6
159.65
159.85
160.05
160.25
Parameter
Center Frequency
Insertion Loss at F
o
0.5 dB Bandedge
0.5 dB Bandedge
30 dB Bandedge
30 dB Bandedge
Passband Ripple
Phase Linearity
Triple Transit Suppresion
Input/Output VSWR
Substrate Material
Operating Temperature Range
Specifications
Unit
Minimum
MHz
dB
MHz
MHz
MHz
MHz
dB
deg
dB
-
-
°C
-
-
-
160.59
157.75
-
-
-
30
-
-
0
Typical
160
19.5
159.354
160.668
158.916
161.116
0.55
3
56.5
1.25:1
Quartz
25
160.45
Horizontal: 800 kHz/Div
Vertical: 10 dB/Div
160
Horizontal: 200 kHz/Div
Vertical: 1 dB/Div
Vertical: 2 deg/Div
Maximum
Package Outline
Matching Configuration
L1 = 100nH, L2 = 82nH, R1 = 1kΩ, R2 = 1KΩ
C1 =150pF, C2 = 33pF, C3 =150pF, C4 = 39pF
Nominal Source/Load Impedance = 50
Package Style SMP-75
11/30/99
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
