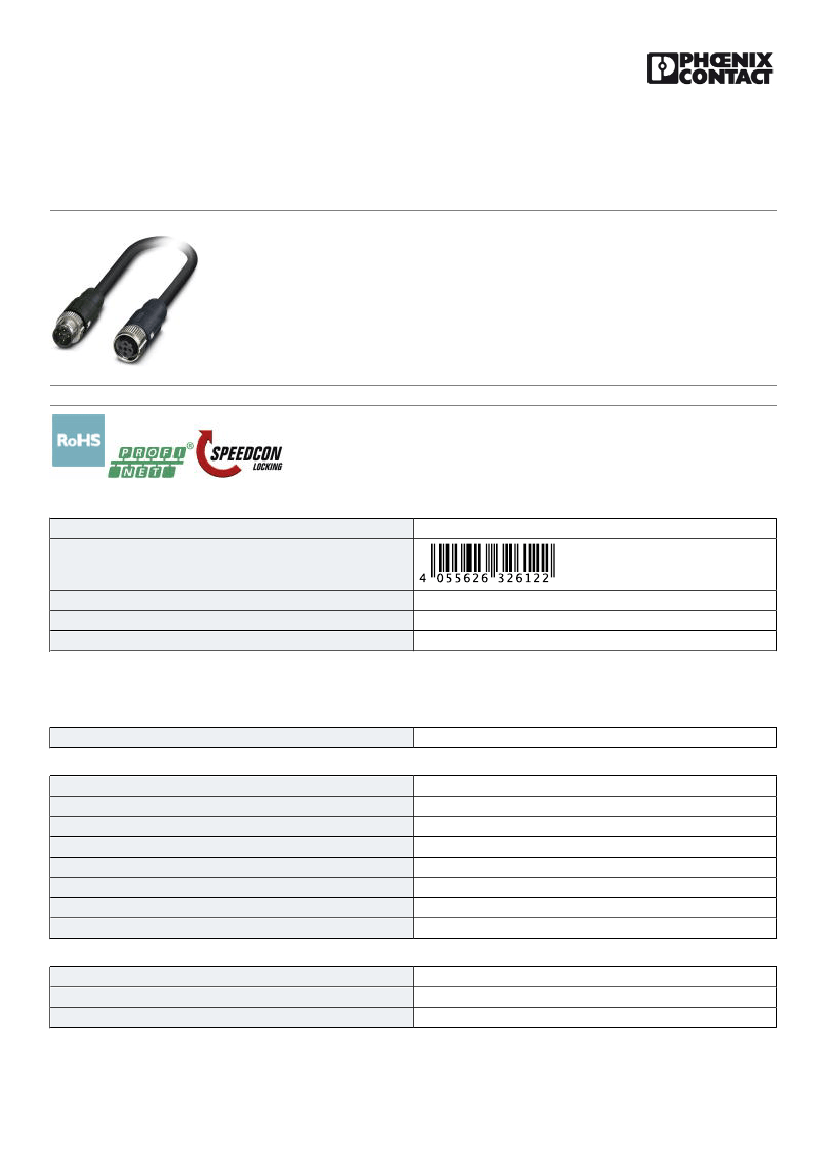

Network cable - NBC-MSD/ 6,0-937/FSD SCO - 1423132
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Network cable, PROFINET CAT5 (100 Mbps), 4-position, PE-X halogen-free, black, shielded, Cable length: 6
m, Product tested according to customer specification/rail application
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626326122
85444290
Made to Order (non-returnable)
1 STK
Technical data
Dimensions
Length of cable
6m
General data
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Standards/regulations
Overvoltage category
Degree of pollution
4A
250 V
4
PROFINET CAT5 (IEC 11801), 100 Mbps
M12 connector IEC 61076-2-101
II
3
3
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
V0
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1423132
Network cable - NBC-MSD/ 6,0-937/FSD SCO - 1423132
Technical data
Cable
Cable type
Cable type (abbreviation)
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Tensile strength short-term/long-term
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Cable capacity
Wave impedance
Signal speed
Signal runtime
Shield attenuation
Coupling resistance
Cable impedance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Fire protection in rail vehicles
PROFINET railway applications
939
PROFINET CAT5 (IEC 11801), 100 Mbps
1x4xAWG22/7; SF/TQ
4x 0.34 mm²
22
7x 0.25 mm
1.4 mm ±0.1 mm
white-blue, orange-yellow
Star quad
Aluminum-lined polyester foil, tinned copper braided shield
black
1 mm
6.6 mm ±0.2 mm
5xD
6xD
≤ 60 N / ≤ 15 N
71 kg/km
PE-X
Cell PE
Tin-plated Cu litz wires
≥ 5 GΩ*km
≤ 54.4 Ω/km
44 nF/km (core-core)
100 Ω ±5 Ω (f = 100 MHz)
0.75 c
4.4 ns/m
60 dB (Up to 1000 MHz)
< 13.00 mΩ/m (f = 1 MHz)
< 8.00 mΩ/m (f = 10 MHz ... 100 MHz)
100 Ω ±15 Ω (f = 0.5 MHz ... 3 MHz)
125 V
1000 V AC (50 Hz, 1 min.)
1000 V AC (50 Hz, 1 min.)
BS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II)
DIN 5510-2 (Fire protection level 1, 2, 3, 4)
EN 45545-2 (Risk level HL1 - HL3)
EN 50306-4
NF F16-101 (Classification C/F1)
NF F16-101 (Internal cable A1, A2, B/external cable A1, A2, B)
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1423132
Network cable - NBC-MSD/ 6,0-937/FSD SCO - 1423132
Technical data
Cable
NFPA 130
PN-K-02511
UIC 564-2 (Class A)
Flame resistance
According to EN 60332-1-2
According to EN 50266-2-5
according to ISO 14572 5.21 (UN ECE-R 118.01)
Halogen-free
Resistance to oil
Other resistance
According to EN 50267-2-1
according to EN 60684-2
according to EN 60684-2, 72 h at 100 °C, IRM 902
Resistant to fuel according to EN 60684-2, 72 h at 100 °C, IRM 903
Resistant to ozone according to EN 50306-4, 72 h at 40 °C, procedure
-6
B, volume concentration 200 x 10
Concentration of fumes
Ambient temperature (operation)
EN 61034-2
-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 70 °C (cable, flexible installation)

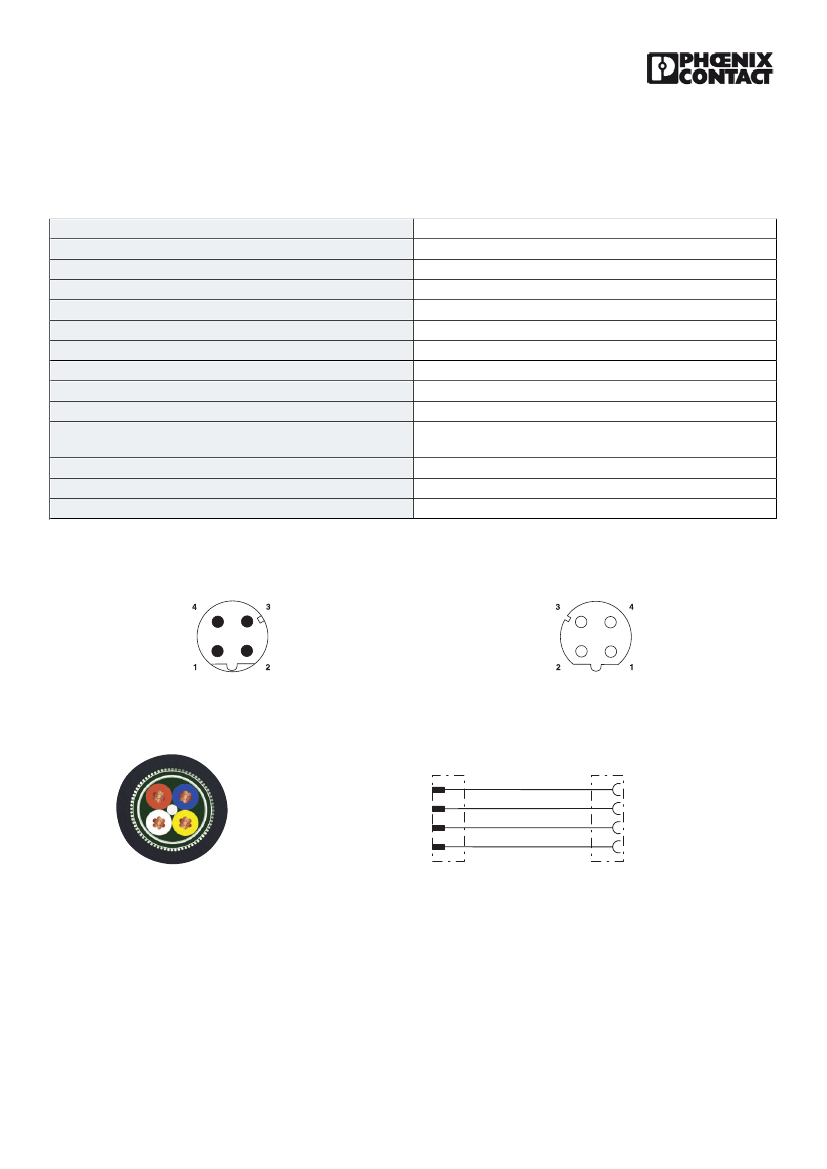

Drawings
Schematic diagram
Schematic diagram
Pin assignment M12 male connector, 4-pos., D-coded, male side
Pin assignment M12 socket, 4-pos., D-coded, female side
Cable cross section
Circuit diagram
1
2
3
4
1 YE
2 WH
3 OG
4 BU
PROFINET railway applications [939]
Contact assignment of the M12 connector and the M12 socket
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1423132
Network cable - NBC-MSD/ 6,0-937/FSD SCO - 1423132
Dimensional drawing
Dimensional drawing
47,3
44,5
Ø14,8
M12 SPEEDCON plug, straight, shielded
Socket M12-SPEEDCON, straight, shielded
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
Ø14,8
M12
Ø12
M12
Ø12
