1440: DescriptionCable Mounting & Accessories SR 21-2; CategoryWire/cable; File Size59KB，1 Pages; ManufacturerHeyco; Environmental Compliance

Download Datasheet Parametric Compare View All

1440 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1440	-	-	View	Buy Now

1440 Overview

Cable Mounting & Accessories SR 21-2

1440 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Heyco
Product Category	Cable Mounting & Accessories
RoHS	Details
Type	Bushing
Color	Black
Factory Pack Quantity	1000
Unit Weight	1.128767 oz

Preview

Download Datasheet

View All

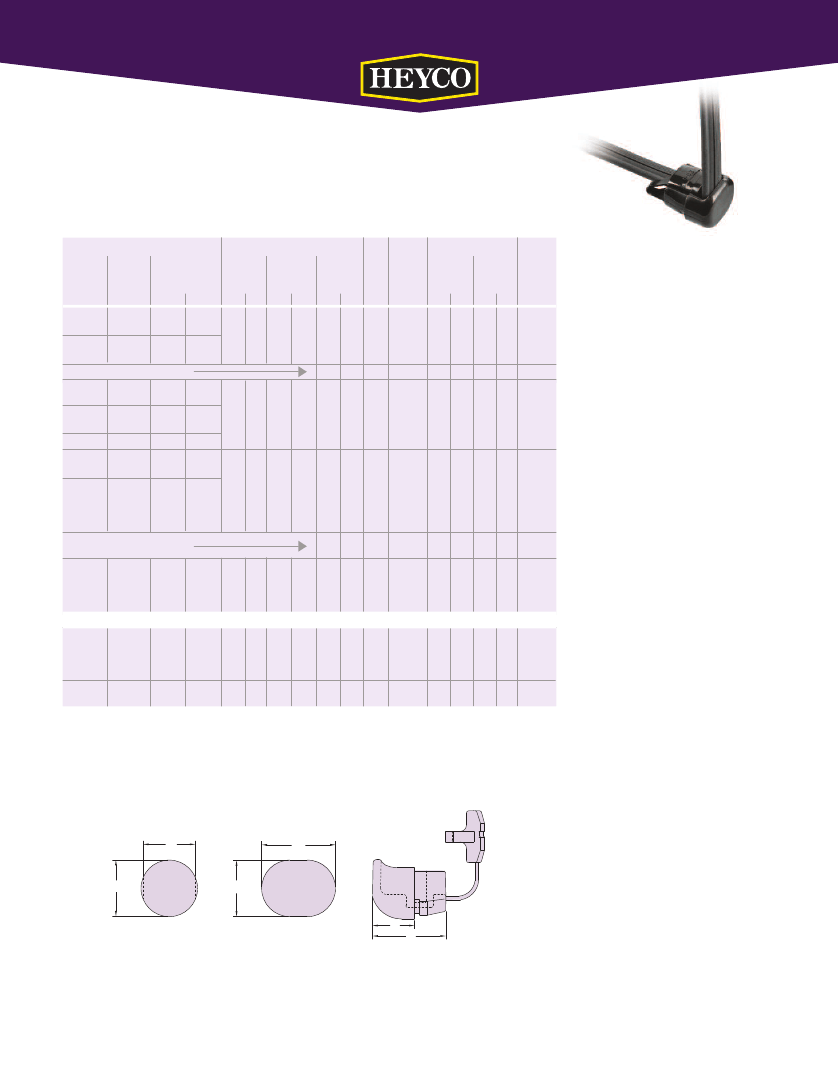

“Stay Connected with Heyco”

Strain Relief Bushings

Heyco Original Strain Relief Bushings

®

Right Angle for Flat Cables

WILL FIT THESE CABLES

UL Type

AWG/

Conductors

Approximate

Size

in.

SPT-1

SPT-2

HPN

SPT-2

& HPN

SPT-3

& HPN

HPN

SPT-2

18/2

18/3

18/2

16/2

18/3

18/2

16/2

16/3

18/3

16/3

18/2

18/3

16/2

16/3

.12x.22

.12x.30

.15x.28

.16x.30

mm.

3,0x5,6

3,0x7,6

3,8x7,1

4,1x7,6

PANEL DIMENSIONS

PART

DESC

PART DIMENSIONS

Mounting

A

B

Finished NO.

Mounting To Prevent Fit Panel Black

Hole Dia. Rotation Thickness*

in. mm. in. mm. in. mm.

.437 11,1 .390

9,9 .062

C

D

Hole Plug

HEAD

BODY

LENGTH LENGTH

in. mm. in. mm. PART NO.

5,9 .500 12,7

9,9 .687 17,5

2488

2491

1,6

1354

SR 13-1 .234

1,0

1361

SR 14A-1 .390

2,5

1364

SR 14-1 .390

.500 12,7 .450 11,4 .040

.100

Same as SR 14A-1 above except

.15x.40 3,8x10,2

.19x.35

.20x.37

.16x.37

4,8x8,9

5,1x9,4

4,1x9,4

.562 14,3 .525 13,3 .125

3,2

1384

SR 16-1 .500 12,7 .859 21,8

2494

•

Provides the same protection for

your power supply cable as the

straight-thru type AND...

•

Exits the cable flush against the

panel,

saving space and directing the

cable parallel to the panel.

•

Overcomes space limitations and acts

as a back or bottom bumper.

•

See page 4-38 for corresponding

Mounting Hole Plugs

which can be

used to fill blank/unused Mounting

Holes and thus allow for a single panel

design for multiple applications.

•

Consult Heyco for other wire types

and sizes.

•

See pages 4-27 & 4-28 for SR

assembly tools.

•

See page 4-25 for Quick Specs.

.15x.40 3,8x10,2

.16x.41 4,1x10,4

.19x.35 4,8x8,9 .560 14,2 .730 18,5

.080

.19x.39 4,8x9,9 **

**

.20x.37 5,1x9,4

.20x.43 5,1x10,9

.125

2,0

1424

SR 20-1

.406 10,3 .812 20,6

**

consult Heyco

SPT-3

Same as SR 20-1 above except

16/2

16/3

14/2

14/3

14/2

14/3

12/3

10/3

3,2

1434

SR 20L-1

.406 10,3 .812 20,6

**

SR 23-1

.484 12,3 .937 23,8

**

consult Heyco

SPT-3

.20x.37 5,1x9,4

.20x.43 5,1x10,9 .750 19,9 .875 22,2

.125

.24x.42 6,1x10,7 ** **

**

.24x.51 6,1x13,0

.24x.42

.24x.51

.29x.51

.29x.65

6,1x10,7

6,1x13,0

.875 22,2 .840 21,3 .125

7,4x13,0

7,4x16,5

3,2

1454

consult Heyco

Fit 1/2˝ and 3/4˝ Electrical Knock-out Hole Sizes

SPT-3

3,2

1464

SR 24-1 .500 12,7 .968 24,6

2509

SPT-3, SRD

& SRDT

.32x.66 8,0x16,8 1.093 28,0 1.000 25,4 .125

3,2

1440

SR 21-2 .734 18,6 1.437 36,5

2717

Standard color black. Consult Heyco for white and other colors.

*Maximum Panel Thickness. Part has additional clearance. Consult Heyco for your Custom Finished Fit Panel Thickness.

**Use Elongated Mounting Hole.

B

A

MOUNTING HOLES

C

D

1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • www.heyco.com

4-26

1440 Related Products

	1440	1434	1464	1354	1424	1364	1361	1384
Description	Cable Mounting & Accessories SR 21-2	Cable Mounting & Accessories SR 20L-1 BLACK	Cable Mounting & Accessories SR 24-1	Cable Mounting & Accessories SR 13-1 BLACK	Cable Mounting & Accessories SR 20-1	Cable Mounting & Accessories SR 14-1	Cable Mounting & Accessories SR 14A-1	Cable Mounting & Accessories SR 16-1
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Heyco	Heyco	Heyco	Heyco	Heyco	Heyco	Heyco	Heyco
Product Category	Cable Mounting & Accessories	Cable Mounting & Accessories	Cable Mounting & Accessories	Cable Mounting & Accessories	Cable Mounting & Accessories	Cable Mounting & Accessories	Cable Mounting & Accessories	Cable Mounting & Accessories
RoHS	Details	Details	Details	Details	Details	Details	Details	Details
Color	Black	Black	Black	Black	Black	Black	Black	Black
Factory Pack Quantity	1000	4000	2000	8000	4000	8000	8000	3500
Unit Weight	1.128767 oz	1.164041 oz	1 oz	0.740753 oz	1.128767 oz	1.128767 oz	1.164041 oz	0.776027 oz
Type	Bushing	-	Bushing	Bushing	Bushing	Bushing	Bushing	Bushing
Mounting Method	-	-	Panel	-	Panel	Panel	Panel	Panel
Material	-	-	Nylon	-	Nylon	Nylon	Nylon	Nylon
Length	-	-	24.6 mm	-	20.6 mm	17.5 mm	17.5 mm	21.8 mm
Wire Gauge	-	-	14 AWG to 12 AWG	-	18 AWG to 16 AWG	18 AWG to 16 AWG	18 AWG to 16 AWG	18 AWG to 16 AWG
