PCB Accessories

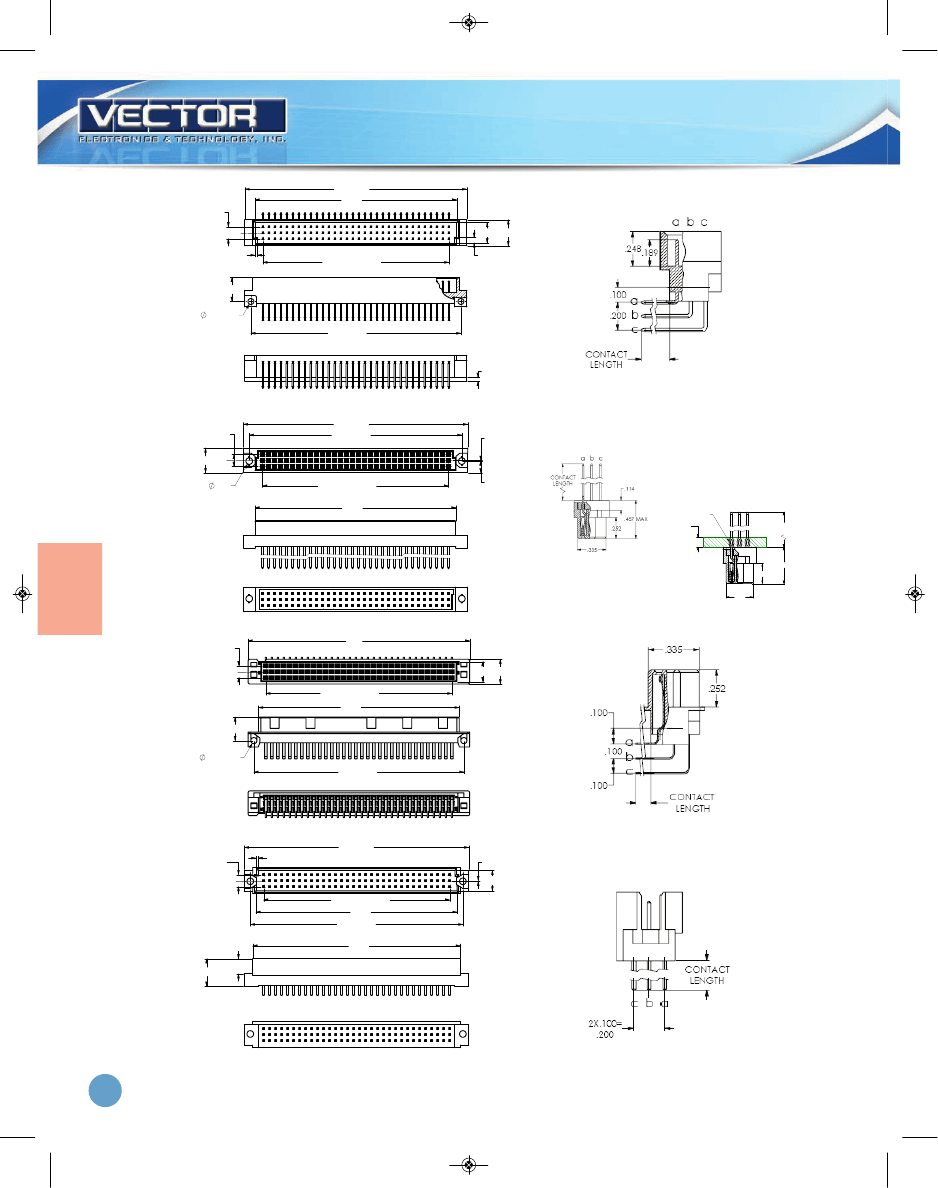

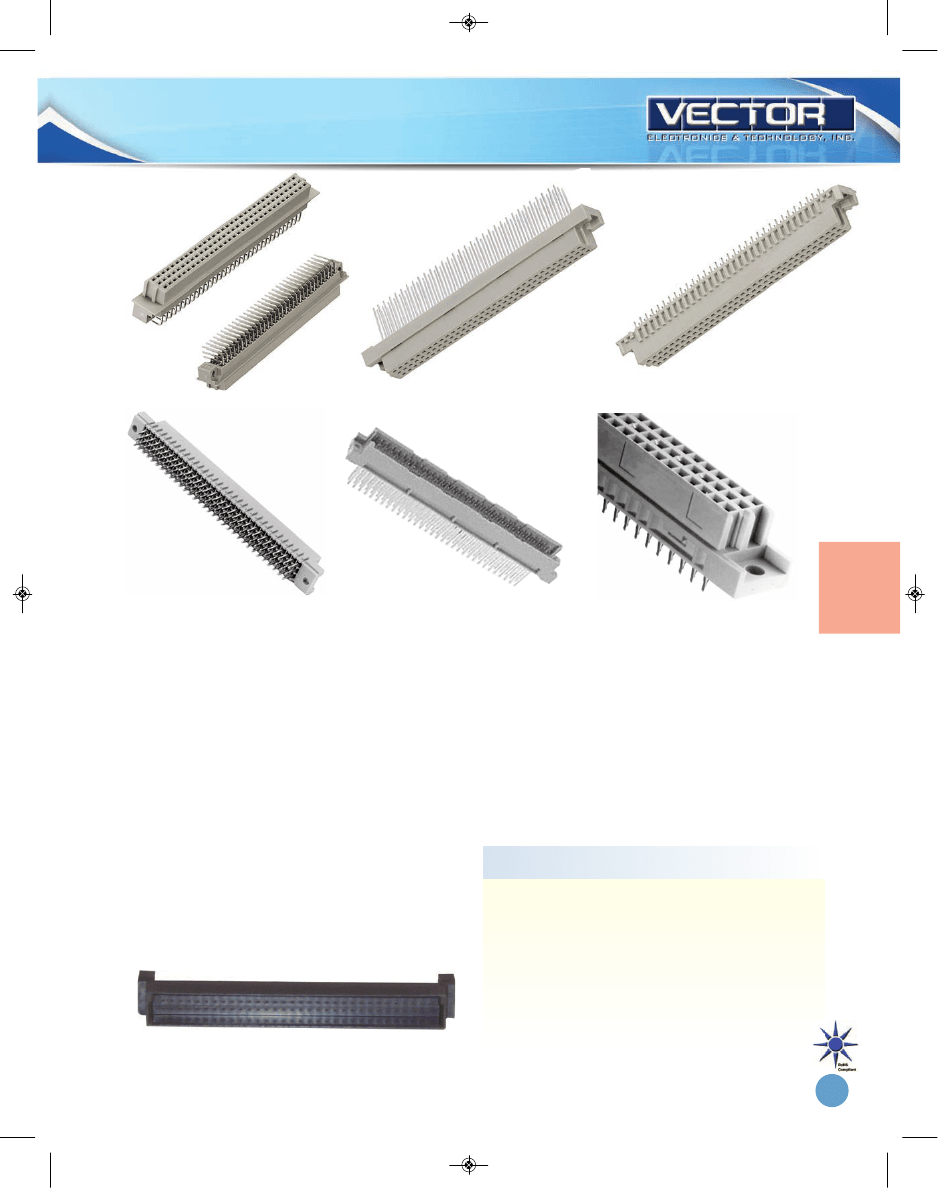

96-Pin DIN Connectors
Style 1
Style 2
Style 3
Connectors
Style 4
Style 5
96-Pin DIN Connectors
Specifications: Class 2
(DIN 41612)
Insulating Material:
Glass-Filled Polycarbonate or
polyesther sulphone
Copper Alloy
.000010” gold over .000050” nickel
Ni/Gold .000010”
2.5A at 20
o
C;
1A at 70
o
C
300V AC
1000V AC
30 m Ohms max. @ 100mA DC
1000M Ohms min. @ 500 VDC
-55
o
C to + 125
o
C
<90 < 20 Lbs.
400
RE96FABG
For automatic daisy chaining of VME and VXI
backplanes. Eliminates the need for manual
jumpering. Pin entry acts like a switch which is
activated and closed during insertion. No other
moving parts required. Same MTBF as other
types. Requires special EPT installation tooling.
Standard VME Bus Signals J1 Switched Pins
IACK IN - IACK OUT
BG 0 IN - BG 0 OUT
BG1 IN - BG 0 OUT
BG 2 IN - BG 2 OUT
BG 3 IN BG 3 OUT
a 21-22
b 4-5
b 6-7
b 8-9
b 10-11
Contact Material:
Contact Plating:*
Contact Tail:
Current Rating:
Operating Voltage:
Test Voltage:
Contact Resistance:
Insulator Resistance:
Temperature Range:
Insertion Force:
Insertion Cycles:
Ordering Information
Part No.
RE96FSR
RE96MSD
RE96MSR-062
RE96MSR-125
RE96FW
RE96FWR
RE96MW
RE96FABG
RE96FSD
RE96FSP
RE96FWP
RE96MWR
79900003
Style
#
4
5
1
1
2
4
5
3
2
3
3
1
N/A
M/F
F
M
M
M
F
F
M
F
F
F
F
M
F
Contact
Length
0.087”
0.157”
0.087”
0.174”
0.54”
0.2”
0.54”
0.157”
0.208”
0.670”
0.505”
N/A
Type
Solder Tail, Right Angle
Solder Tail
Solder Tail, Right Angle
Solder Tail, Right Angle
Wire-Wrap
Wire-Wrap, Right Angle
Wire-Wrap
Auto Bus Grant
Solder Tail
Pressfit Solder Tail
Pressfit Wire-Wrap
Wire-Wrap, Right Angle
Shroud for press-fit wire
wrap connectors
*
Other gold plating specs available;
64-pin connectors (A & C rows) available upon request.
79900003
Shroud for press-fit wire wrap connectors
www.vectorelect.com
800-423-5659
