D0816-01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> D0816-01

Preview

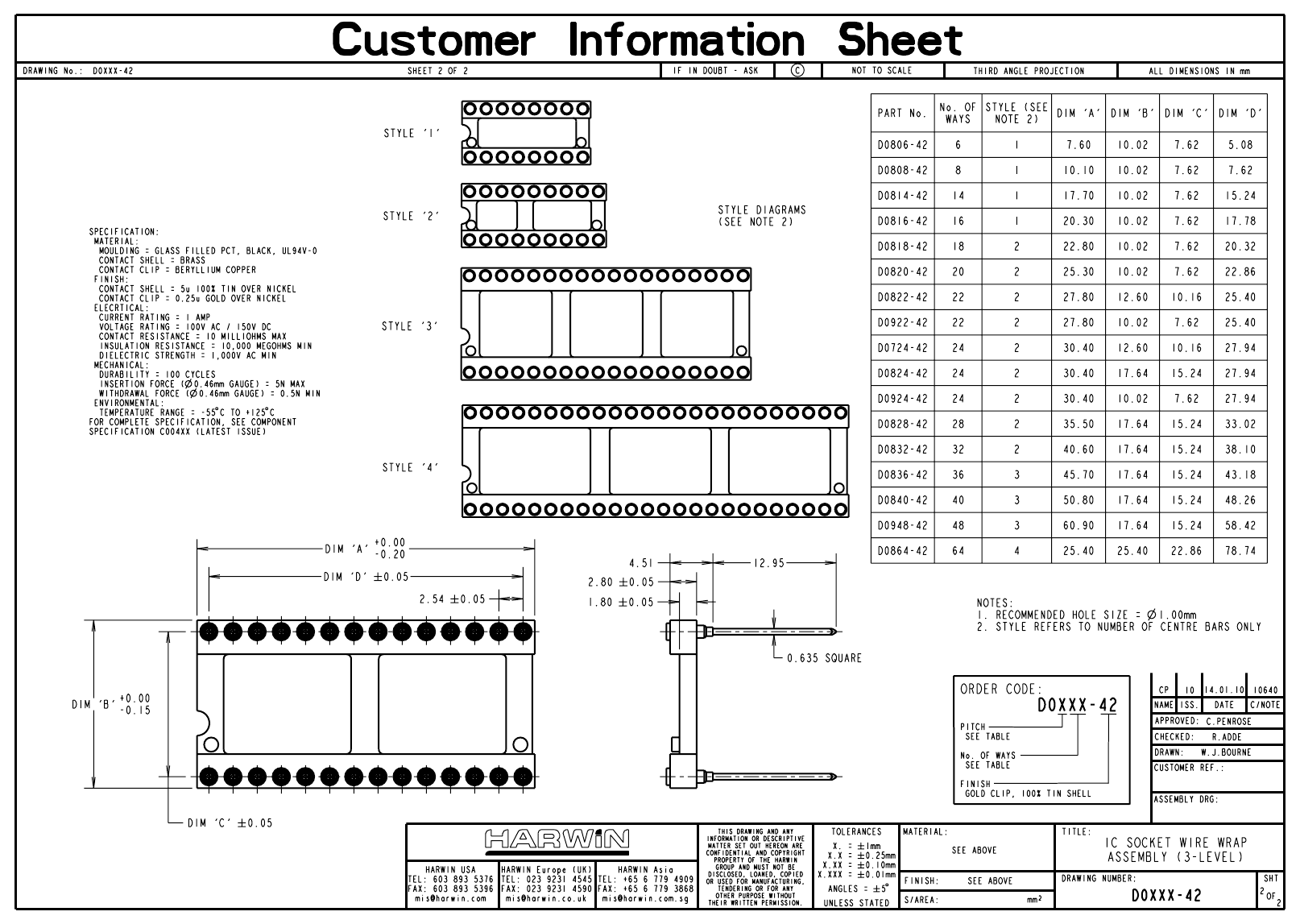

D0816-01: DescriptionIC & Component Sockets 16P DIL IC SOCKET VERT 3 LVL WIRE WRAP; CategoryThe connector socket; File Size139KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

D0816-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D0816-01	-	-	View	Buy Now

D0816-01 Overview

IC & Component Sockets 16P DIL IC SOCKET VERT 3 LVL WIRE WRAP

D0816-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.4 inch
subject depth	0.193 inch
body length	0.8 inch
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	7.5 A
Device slot type	IC SOCKET
Type of equipment used	DIP16
Shell material	POLYESTER
Manufacturer's serial number	D08
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	WIRE WRAP

Preview

Download Datasheet

View All

D0816-01 Related Products

	D0816-01	D0814-01	D0806-01	D0824-01	D0820-01
Description	IC & Component Sockets 16P DIL IC SOCKET VERT 3 LVL WIRE WRAP	IC & Component Sockets 14P DIL IC SOCKET VERT 3 LVL WIRE WRAP	IC & Component Sockets 6P DIL IC SOCKET VERT 3 LVL WIRE WRAP	IC & Component Sockets IC SKT ASSY 3 LEVEL	IC & Component Sockets 20P DIL IC SOCKET VERT 3 LVL WIRE WRAP
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	unknown	unknown	not_compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.4 inch	0.4 inch	0.4 inch	0.7 inch	0.4 inch
subject depth	0.193 inch	0.193 inch	0.193 inch	0.193 inch	0.193 inch
body length	0.8 inch	0.7 inch	0.3 inch	1.2 inch	1 inch
Contact material	BE-CU	BE-CU	NOT SPECIFIED	BE-CU	BE-CU
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP16	DIP14	DIP6	DIP24	DIP20
Shell material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Manufacturer's serial number	D08	D08	D08	D08	D08
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	16	14	6	24	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.3 mm	0.3 mm	0.3 mm	0.6 mm	0.3 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Is it lead-free?	Contains lead	Contains lead	-	Contains lead	Contains lead
