TECHNICAL DATA SHEET
N 50
RIGHT ANGLE JACK
53K211-500N5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents

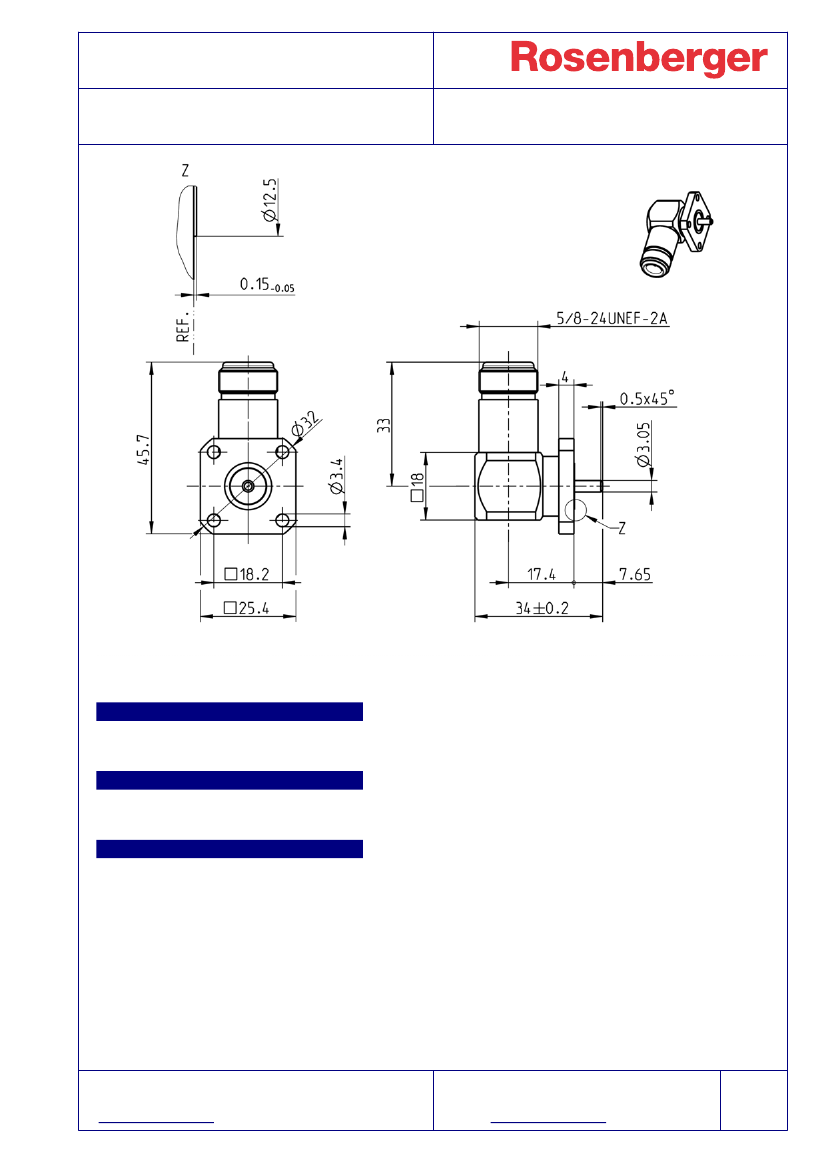

Panel piercing
B 12
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
Spring bronze
Brass
Brass
PTFE
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/05.04/2.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
N 50
RIGHT ANGLE JACK
53K211-500N5
50
DC to 11 GHz
32 dB, DC to 2.5 GHz
30 dB, 2.5 to 4 GHz
20 dB, 5 to 11 GHz
0.1 dB
5 x10
3
M
1 m
0.25 m
500 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
- Interface only -
Mechanical data
Mating cycles
Coupling test torque
Recommended torque
min. 500
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-55°C to +155°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
N/A
Suitable cables
N/A
Weight
Weight
88.0 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/05.04/2.0
Draft
F. Schmidhammer
Date
18/10/06
Approved
J_Gramsamer
Date
21.04.15
Rev.
d00
Engineering change number
15-0397
Name
J_Krautenb.
Date
21.04.15
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
