87715-9205 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87715-9205

87715-9205: DescriptionPCI Express / PCI Connectors VERT THRU-HOLE 98P 15 plated; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87715-9205 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87715-9205	-	-	View	Buy Now

87715-9205 Overview

PCI Express / PCI Connectors VERT THRU-HOLE 98P 15 plated

87715-9205 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Samacsys Description	PCI Express / PCI Connectors VERT THRU-HOLE 98P 15 plated
Other features	PANEL MOUNTABLE
Board mount options	PEG
body width	0.348 inch
subject depth	0.443 inch
body length	2.205 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.1676 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87715
Plug contact pitch	0.039 inch
Match contact row spacing	0.072 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
Rated current (signal)	1.1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	98
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

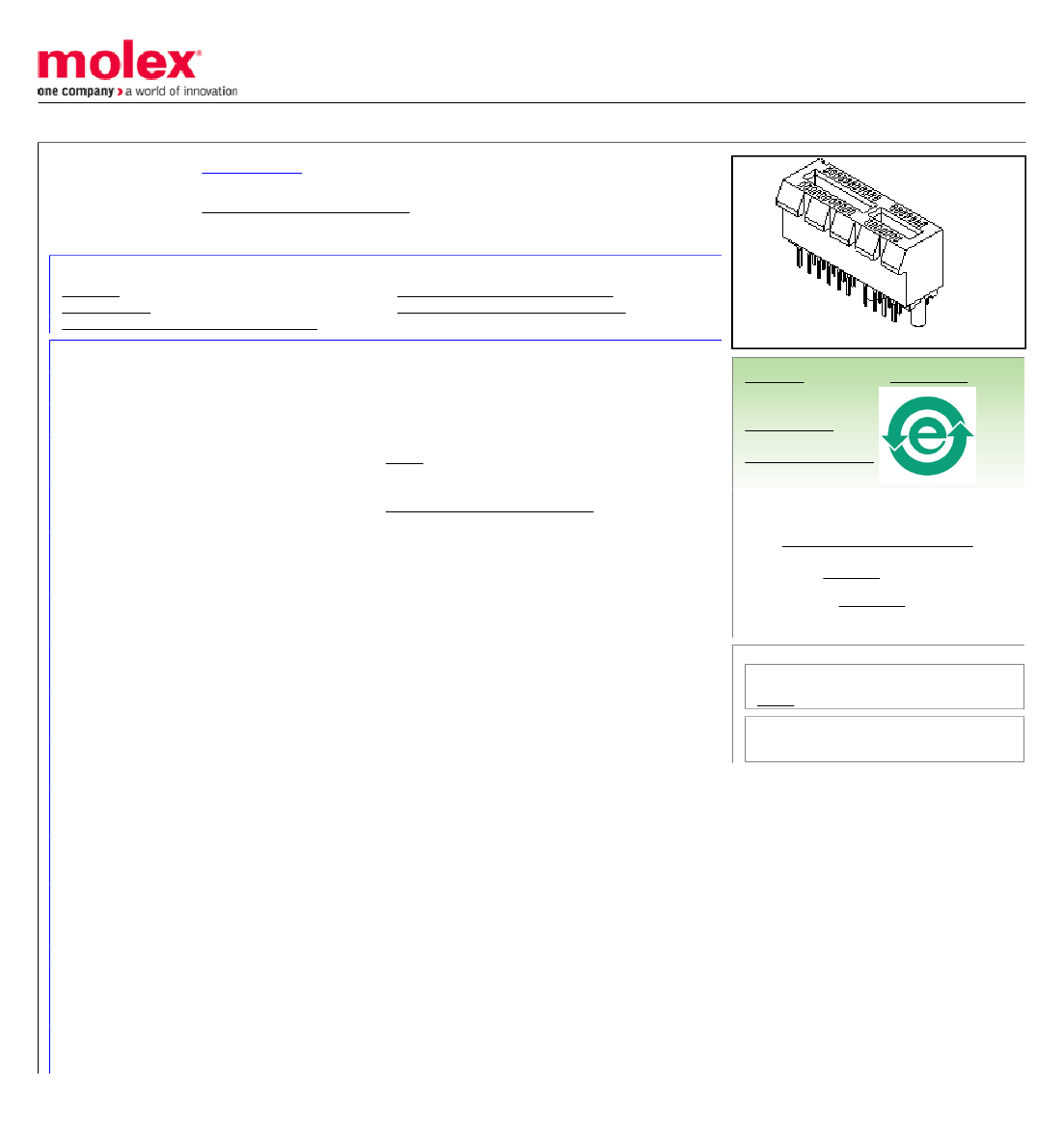

Preview

Download Datasheet

View All

This document was generated on 08/13/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87715-9205

Active

PCI Express Card Edge Connector

1.00mm Pitch, PCI Express* Connector, 98 Circuits, Nylon 4/6 Glass-filled, Black

Housing, Phosphor Bronze, 0.38µm Gold Soldertail, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87715-200 (PDF)

Test Summary TS-87715-207 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Low-Halogen

China RoHS

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Overview

Product Name

UPC

Edge Card Connectors

87715

PCI 8 lanes

Edgecard to PCB

PCI Express Card Edge Connector

PCI Express*

822348679904

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

(p)ower-(s)ignal Configuration

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

Entry Angle

Flammability

Keying to Mating Part

Material - Plating Mating

Material - Plating Termination

Net Weight

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to Mating Part

Temperature Range - Operating

Termination Interface: Style

98s - 0p

Vertical (Top Entry)

94V-0

Yes

Gold

Tin

5.467/g

3.00mm

Yes

2.40mm

Tray

1.00mm

0.381µm

Yes

-55°C to +85°C

Through Hole

Search Parts in this Series

87715Series

Mates With

PCI Express Card

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.1A

50V AC (RMS)/DC

Solder Process Data

Duration at Max. Process Temperature (seconds)
