DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:
Multi DomiLED
TM
GaP : Bi-Color
Multi DomiLED
TM
TM

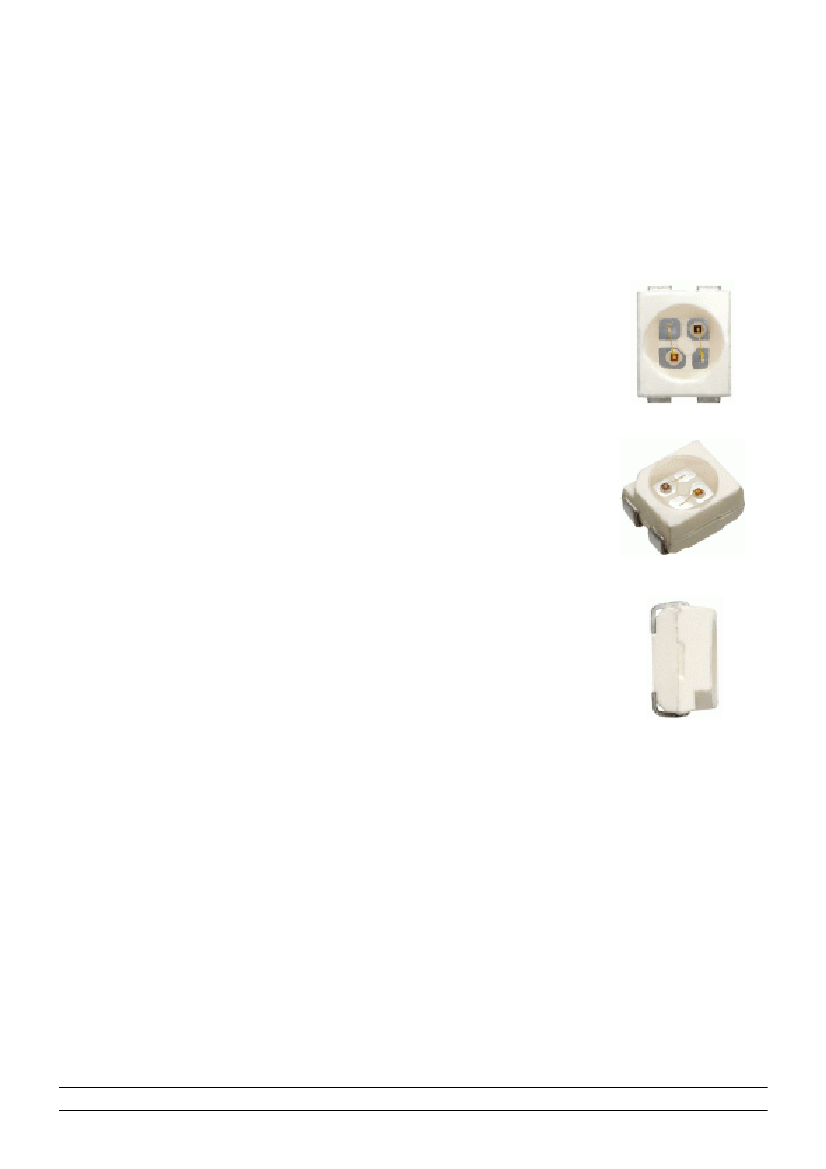

Synonymous with function and performance, the Multi
DomiLED
series
is perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
High brightness bi-color surface mount LED.
120° viewing angle.

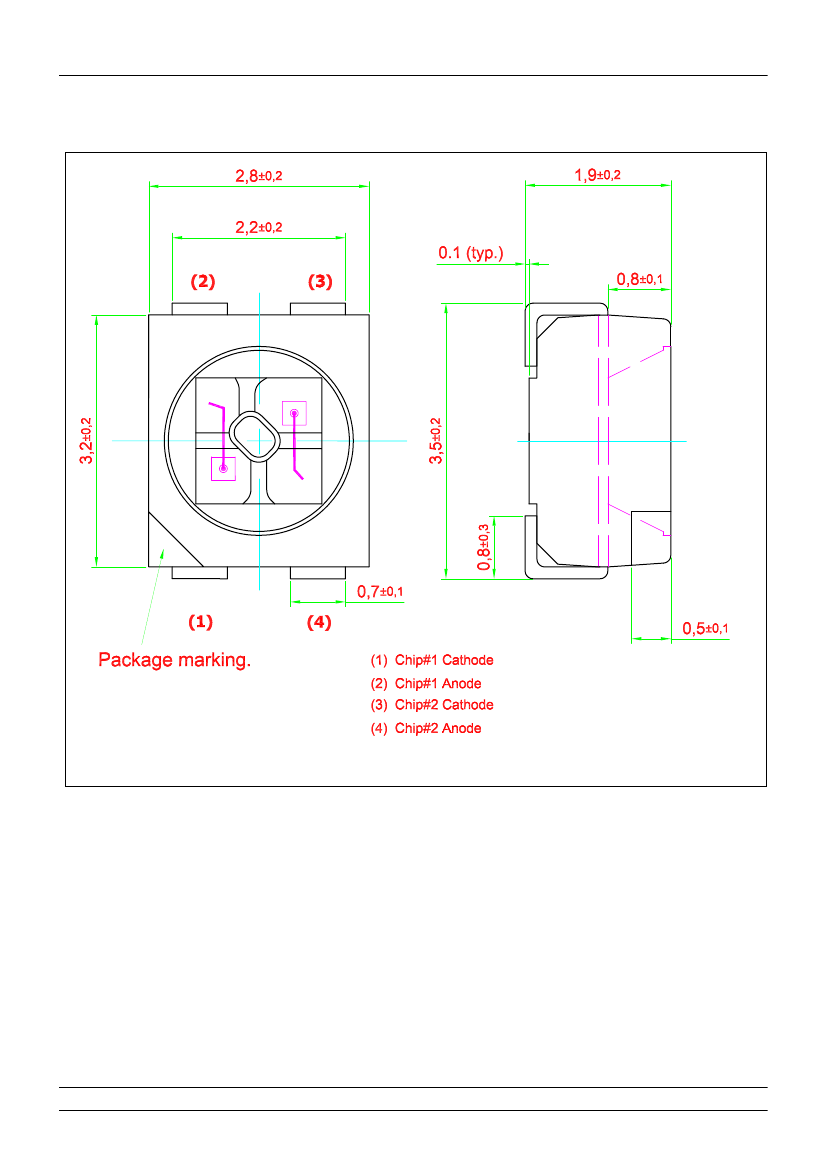

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Environmental friendly; RoHS compliance.
Applications:
>
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Communication: indicator and backlight in mobilephone.
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
© 2005 DomiLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
11/08/2006 V4.0
DOMINANT
TM
Semiconductors
Innovating Illumination
GaP : Bi-Color
Part Ordering
Number
DMRY-GJS-LM+LM-1
• DMRY-GJS-LL
• DMRY-GJS-LM
• DMRY-GJS-ML
• DMRY-GJS-MM
DMRG-GJS-LM+LM-1
• DMRG-GJS-LL
• DMRG-GJS-LM
• DMRG-GJS-ML
• DMRG-GJS-MM
DMYG-GJS-LM+LM-1
• DMYG-GJS-LL
• DMYG-GJS-LM
• DMYG-GJS-ML
• DMYG-GJS-MM
Color, λ
dom
(nm)
Chip #1
Red,
625nm
Chip #2
Yellow,
587nm
Viewing
Angle˚
120
Luminous Intensity @
IF = 20mA IV (mcd)
Chip #1
Chip #2
11.2 - 28.5
11.2 - 18.0
11.2 - 18.0
18.0 - 28.5
18.0 - 28.5
11.2 - 28.5
11.2 - 18.0
18.0 - 28.5
11.2 - 18.0
18.0 - 28.5
11.2 - 28.5
11.2 - 18.0
18.0 - 28.5
11.2 - 18.0
18.0 - 28.5
11.2 - 28.5
11.2 - 18.0
18.0 - 28.5
11.2 - 18.0
18.0 - 28.5
Red,
625nm
Green,
570nm
120
11.2 - 28.5
11.2 - 18.0
11.2 - 18.0
18.0 - 28.5
18.0 - 28.5
Yellow,
587nm
Green,
570nm
120
11.2 - 28.5
11.2 - 18.0
11.2 - 18.0
18.0 - 28.5
18.0 - 28.5
NOTE
1. DMXX comes in a quantity of 2000 units per reel.
2. Luminous intensity is measured with an accuracy of ± 11%.
4. Half group binning for luminous intensity is also available upon request.
2
11/08/2006 V4.0
DOMINANT
TM
Semiconductors
Innovating Illumination
GaP : Bi-Color
Wavelength Grouping
Color
Red
Yellow
Group
Full
Full
W
X
Y
Z
Wavelength distribution (nm)
620 - 635
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
564.5 - 576.5
564.5 - 567.5
567.5 - 570.5
570.5 - 573.5
573.5 - 576.5
Green
Full
W
X
Y
Z
Dominant wavelength is measured with an accuracy of ± 1 nm.
Electrical Characteristics at Ta=25˚C
Vf @ If = 20mA
Typ. (V)
Red; Yellow; Green
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Max. (V)
2.5
2.2
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.005)
Reverse voltage
ESD Thereshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
30
1000
5
2
125
-40 … +100
-40 … +100
Unit
mA
mA
V
KV
˚C
˚C
˚C
3
11/08/2006 V4.0
DOMINANT
TM
Semiconductors
Innovating Illumination
GaP : Bi-Color

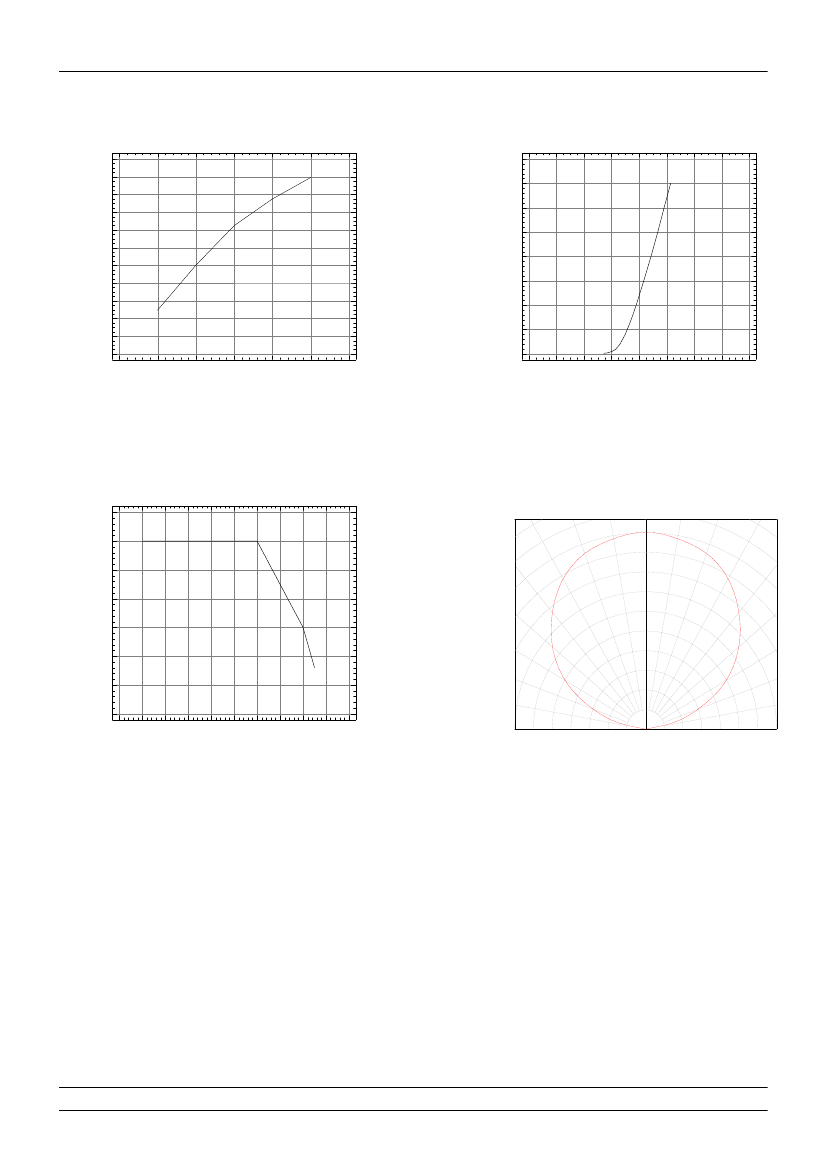

Relative Intensity Vs Forward Current
2.2
2
1.8
40
35
Forward Current Vs Forward Voltage
Forward Current, mA
0
10
20
30
40
50
60
Relative Intensity
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
30
25
20
15
10
5
0
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
Forward Current, mA
Forward Voltage, V
Maximum Current Vs Temperature
35
30
30°
20°
Radiation Pattern
10°
0°
1.0
Forward Current, mA
25
20
15
10
5
0
0
10
20
30
40
50
60
70
80
90 100
40°
0.8
50°
0.6
60°
70°
80°
90°
0.4
0.2
0
Ambient Temperature
4
11/08/2006 V4.0
