DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:
Multi DomiLED
TM
Bi-Color
Multi DomiLED
TM
TM

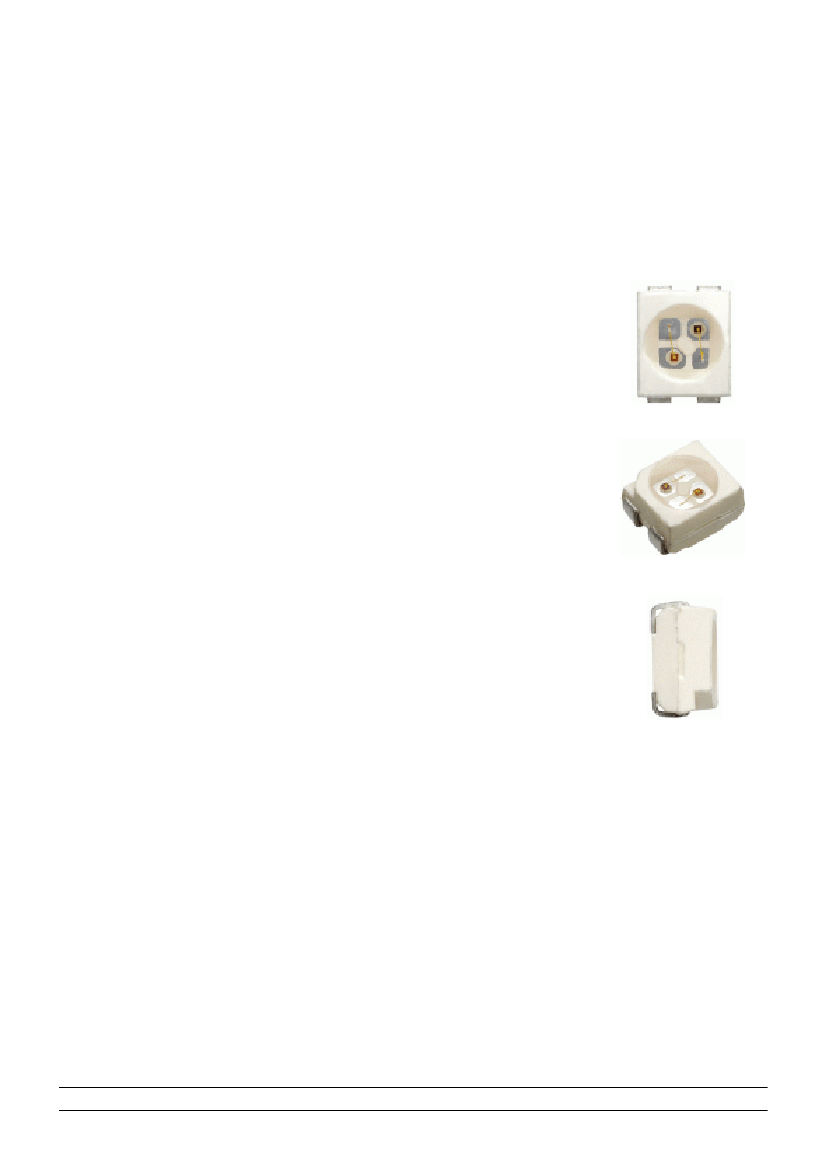

Synonymous with function and performance, the Multi
DomiLED
series
is perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
High brightness bi-color surface mount LED.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to IR reflow soldering.
Environmental friendly; RoHS compliance.
Applications:
>
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Communication: indicator and backlight in mobilephone.
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
© 2005 DomiLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
19/07/2007 V19.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Bi-Color
Part Ordering
Number
DMSG-CJS-PQ+PQ-1
• DMSG-CJS-PP
• DMSG-CJS-PQ
• DMSG-CJS-QP
• DMSG-CJS-QQ
DMSG-CJS-QR+PQ-1
• DMSG-CJS-QP
• DMSG-CJS-QQ
• DMSG-CJS-RP
• DMSG-CJS-RQ
DMST-CJS-PQ+RS-1
• DMST-CJS-PR
• DMST-CJS-PS
• DMST-CJS-QR
• DMST-CJS-QS
DMRG-SJS-RS+QR-1
• DMRG-SJS-RQ
• DMRG-SJS-RR
• DMRG-SJS-SQ
• DMRG-SJS-SR
DMAY-SJS-ST+ST-1
• DMAY-SJS-SS
• DMAY-SJS-ST
• DMAY-SJS-TS
• DMAY-SJS-TT
DMYB-CJS-RS+PQ-1
• DMYB-CJS-RP
• DMYB-CJS-RQ
• DMYB-CJS-SP
• DMYB-CJS-SQ
Color, λ
dom
(nm)
Chip #1
Super-red,
632nm
Chip #2
Green,
570nm
Viewing
Angle˚
120
Luminous Intensity @
IF = 20mA IV (mcd)
Chip #1
Chip #2
45.0 - 112.5
45.0 - 71.5
45.0 - 71.5
71.5 - 112.5
71.5 - 112.5
45.0 - 112.5
45.0 - 71.5
71.5 - 112.5
45.0 - 71.5
71.5 - 112.5
45.0 - 112.5
45.0 - 71.5
71.5 - 112.5
45.0 - 71.5
71.5 - 112.5
112.5 - 285.0
112.5 - 180.0
180.0 - 285.0
112.5 - 180.0
180.0 - 285.0
71.5 - 180.0
71.5 - 112.5
112.5 - 180.0
71.5 - 112.5
112.5 - 180.0
180.0 - 450.0
180.0 - 285.0
285.0 - 450.0
180.0 - 285.0
285.0 - 450.0
45.0 - 112.5
45.0 - 71.5
71.5 - 112.5
45.0 - 71.5
71.5 - 112.5
Super-red,
632nm
Green,
570nm
120
71.5 - 180.0
71.5 - 112.5
71.5 - 112.5
112.5 - 180.0
112.5 - 180.0
Super-red,
632nm
True Green,
525nm
120
45.0 - 180.0
45.0 - 71.5
45.0 - 71.5
71.5 - 112.5
71.5 - 112.5
Red,
625nm
Green,
570nm
120
112.5 - 285.0
112.5 - 180.0
112.5 - 180.0
180.0 - 285.0
180.0 - 285.0
Amber,
615nm
Yellow,
587nm
120
180.0 - 450.0
180.0 - 285.0
180.0 - 285.0
285.0 - 450.0
285.0 - 450.0
Yellow,
587nm
Blue,
470nm
120
112.5 - 285.0
112.5 - 180.0
112.5 - 180.0
180.0 - 285.0
180.0 - 285.0
NOTE
1. DMXX comes in a quantity of 2000 units per reel.
2. Luminous intensity is measured with an accuracy of ± 11%.
4. Vf binning is available. Binning scheme as per table below. Please request for special part numbers.
2
19/07/2007 V19.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Bi-Color
Wavelength Grouping
Color
Group
Wavelength distribution (nm)
Super-red
Red
Amber
Full
Full
Full
W
X
625 - 640
620 - 630
610 - 621
610 - 615
615 - 621
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
520 - 536
520 - 524
524 - 528
528 - 532
532 - 536
564.5 - 576.5
564.5 - 567.5
567.5 - 570.5
570.5 - 573.5
573.5 - 576.5
464 - 480
464 - 468
468 - 472
472 - 476
Yellow
Full
W
X
Y
Z
True Green
Full
W
X
Y
Z
Green
Full
W
X
Y
Z
Blue
Full
W
X
Y
Dominant wavelength is measured with an accuracy of ± 1 nm.
3
19/07/2007 V19.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Bi-Color
Electrical Characteristics at Ta=25˚C
Vf @ If = 20mA
Typ. (V)
Super-red
Red
Amber
Yellow
Green
True Green
Blue
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Max. (V)
2.45
2.45
2.45
2.45
2.45
4.00
4.00
2.00
2.00
2.00
2.00
2.00
3.60
3.60
Vf Binning (Optional)
Vf Bin @ 20mA
00
01
02
03
04
Red, Amber,Yellow, Green; AlInGaP (V)
1.25 ... 1.55
1.55 … 1.85
1.85 … 2.15
2.15 … 2.45
2.45 ... 2.75
True Green, Blue; InGaN (V)
3.05 ... 3.35
3.35 … 3.65
3.65 … 3.95
3.95 … 4.25
4.25 ...4.55
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Please consult sales and marketing for special part number to inorporate Vf binning.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.005)
Reverse voltage
ESD thereshold (HBM)
LED juction temperature
Operating temperature
Storage temperature
Red, Amber, Yellow, Green; AlInGaP=30;
True Green, Blue; InGaN=20
Red, Amber, Yellow, Green; AlInGaP=1000;
True Green, Blue; InGaN=200
Red, Amber, Yellow, Green; AlInGaP=12;
True Green, Blue; InGaN=5
2
125
-40 … +100
-40 … +100
kV
˚C
˚C
˚C
V
mA
Unit
mA
4
19/07/2007 V19.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Bi-Color

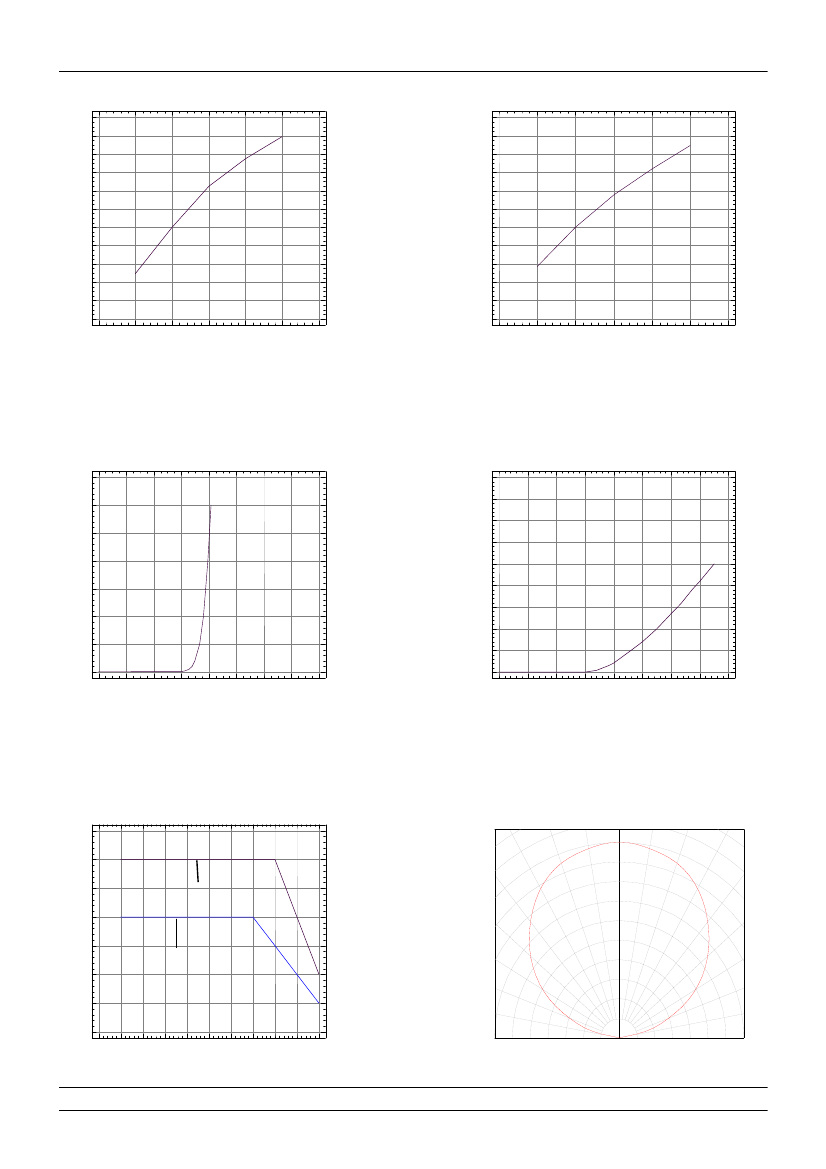

Relative Intensity Vs Forward Current (InGaN)
2.2
2
1.8
Relative Intensity Vs Forward Current (AS AllnGaP)
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
Relative Intensity
Relative Intensity
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
Forward Current, mA
Forward Current, mA
Forward Current Vs Forward Voltage (AS AllnGaP)
35
30
Forward Current Vs Forward Voltage (InGaN)
90
80
Forward Current, mA
Forward Current, mA
25
20
15
10
5
0
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
70
60
50
40
30
20
10
0
1
1.5
2
2.5
3
3.5
4
4.5
5
Forward Voltage, V
Forward Voltage, V
Maximum Current Vs Temperature
35
30
AllnGaP
InGaN
Radiation Pattern
30°
20°
10°
0°
1.0
Forward Current, mA
40°
25
20
15
10
5
0
0
10
20
30
0.8
AlInGaP
50°
0.6
InGaN
60°
70°
80°
90°
0.4
0.2
0
40
50
60
70
80
90 100
Ambient Temperature
5
19/07/2007 V19.0
