54964713400 datasheet, PDF - EEWORLD Datasheet

54964713400: DescriptionGeneral Purpose Inductor,; Categoryinductor Fixed inductance; File Size846KB，7 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

54964713400 Overview

General Purpose Inductor,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	0705
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	0705
structure	Rectangular
core material	CERAMIC
DC Resistance	6.2 Ω
Nominal inductance(L)	0.47 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.85 mm
Package length	1.7 mm
Package form	SMT
Package width	1.2 mm
method of packing	TR, Blister, 7 Inch
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.08 A
self resonant frequency	700 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	100 MHz
Tolerance	5%
Base Number Matches	1

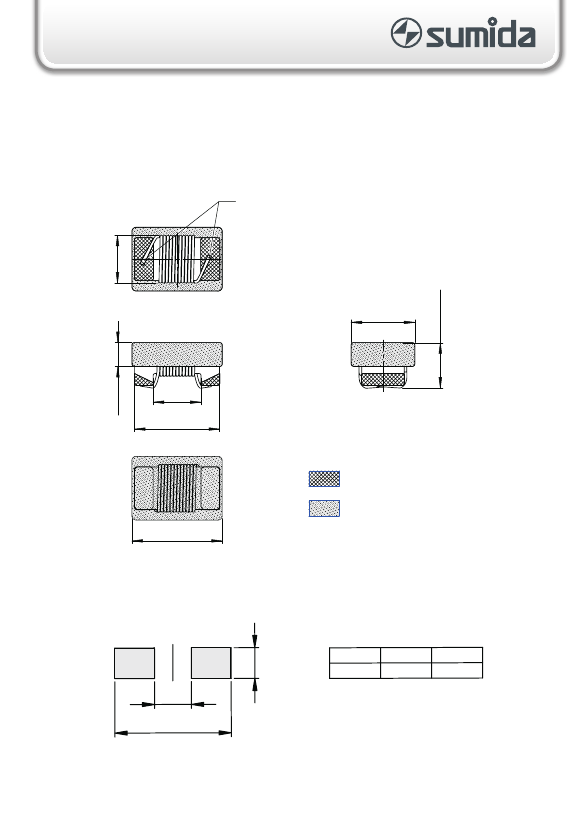

compliant

0603 (1608) drahtgewickelt

(AgPd/Ni/Sn Metallisierung)

0603 (1608) wire-wound

(AgPd/Ni/Sn Metallisation)

- 18 -

	54964713400	54064714400	54964711400
Description	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor,
Is it Rohs certified?	conform to	conform to	conform to
package instruction	0705	0705	0705
Reach Compliance Code	unknown	unknow	unknown
ECCN code	EAR99	EAR99	EAR99
uppercase and lowercase codes	0705	0705	0705
structure	Rectangular	Rectangul	Rectangular
core material	CERAMIC	FERRITE	CERAMIC
DC Resistance	6.2 Ω	0.4 Ω	6.2 Ω
Nominal inductance(L)	0.47 µH	0.47 µH	0.47 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package height	0.85 mm	0.85 mm	0.85 mm
Package length	1.7 mm	1.7 mm	1.7 mm
Package form	SMT	SMT	SMT
Package width	1.2 mm	1.2 mm	1.2 mm
method of packing	TR, Blister, 7 Inch	TR, Blister, 7 Inch	TR, Blister, 7 Inch
Minimum quality factor (at nominal inductance)	30	12	30
Maximum rated current	0.08 A	0.46 A	0.08 A
self resonant frequency	700 MHz	650 MHz	700 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO
surface mount	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	100 MHz	7.9 MHz	100 MHz
Tolerance	5%	2%	20%
Base Number Matches	1	1	1
Maker	SUMIDA	-	SUMIDA
JESD-609 code	e3	-	e3
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier
