87438-0642 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87438-0642

87438-0642: DescriptionHeaders & Wire Housings 1.5mm WtB Hdr RA SMT RA SMT 2.54SnLF 6Ckt; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87438-0642 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87438-0642	-	-	View	Buy Now

87438-0642 Overview

Headers & Wire Housings 1.5mm WtB Hdr RA SMT RA SMT 2.54SnLF 6Ckt

87438-0642 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Samacsys Description	Molex PICO-SPOX Series, Series Number 87438, 1.5mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A
body width	0.175 inch
subject depth	0.305 inch
body length	0.405 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87438
Plug contact pitch	0.059 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0

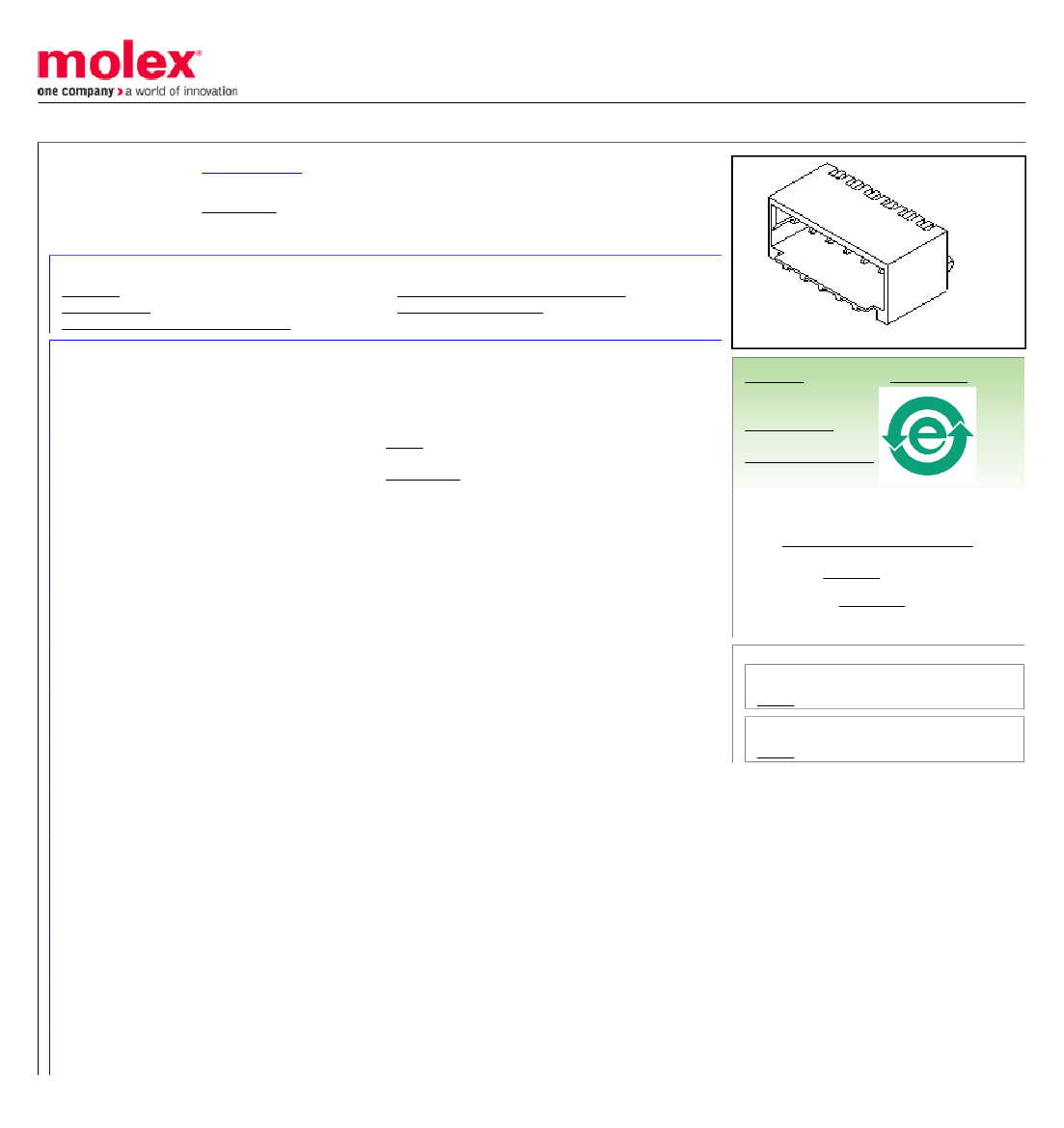

Preview

Download Datasheet

View All

This document was generated on 08/21/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87438-0642

Active

Pico-Spox™

1.50mm Pitch Pico-SPOX™ Wire-to-Board Header, Surface Mount, Right Angle,

Shrouded, 6 Circuits, Tube Packaging, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87437 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series

image - Reference only

Agency Certification

E29179

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

UPC

PCB Headers

87438

Signal, Wire-to-Board

Pico-Spox™

USA-235

Pico-SPOX™

822348438945

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Yes

Brass

Tin

High Temperature Thermoplastic

0.314/g

Right Angle

None

Tube

1.50mm

2.540µm

Yes

Fully

-55°C to +105°C

Surface Mount

Search Parts in this Series

87438Series

Mates With

87439 Pico-SPOX™ Wire-to-Board Housing
