52435-2133: DescriptionCard Edge Connector, 21 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator,; CategoryThe connector The connector; File Size25KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52435-2133 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52435-2133	-	-	View	Buy Now

52435-2133 Overview

Card Edge Connector, 21 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator,

52435-2133 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8292397236
Reach Compliance Code	compliant
Country Of Origin	Japan, Mainland China
ECCN code	EAR99
Factory Lead Time	16 weeks
Samacsys Description	21 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Samacsys Manufacturer	Molex
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	0
body width	0.079 inch
subject depth	0.165 inch
body length	0.673 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.020 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Plating thickness	39u inch
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	21

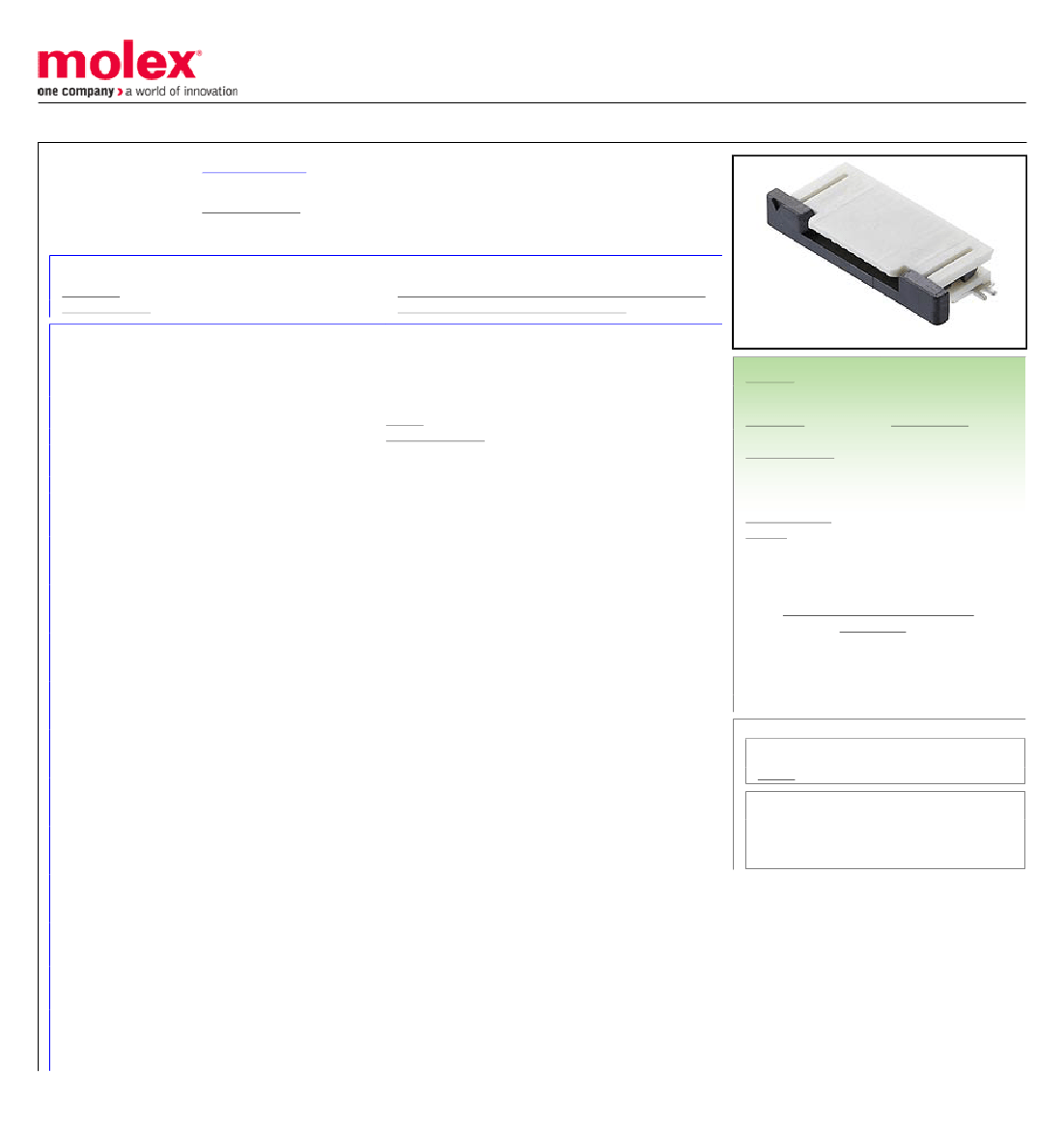

Preview

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0524352133

Active

FFC-FPC (SMT)

0.50mm Pitch Easy-On FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Top

Contact Style, 21 Circuits, Silver-Tin

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Sales Drawing

Packaging Specification SPK-52435-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

FFC/FPC Connectors

52435

FFC-FPC (SMT)

Easy-On

Slider

887191282718

Natural

Top

90° Angle

94V-0

2.00mm

Phosphor Bronze

Silver, Tin-Bismuth

Nylon

287.144/mg

Right Angle

2.00mm

Yes

Embossed Tape on Reel

0.50mm

Yes

-40°C to +85°C

Surface Mount

FFC/FPC

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen
